  • Automatic Glass Washing and Combining Line LBXH2500PW

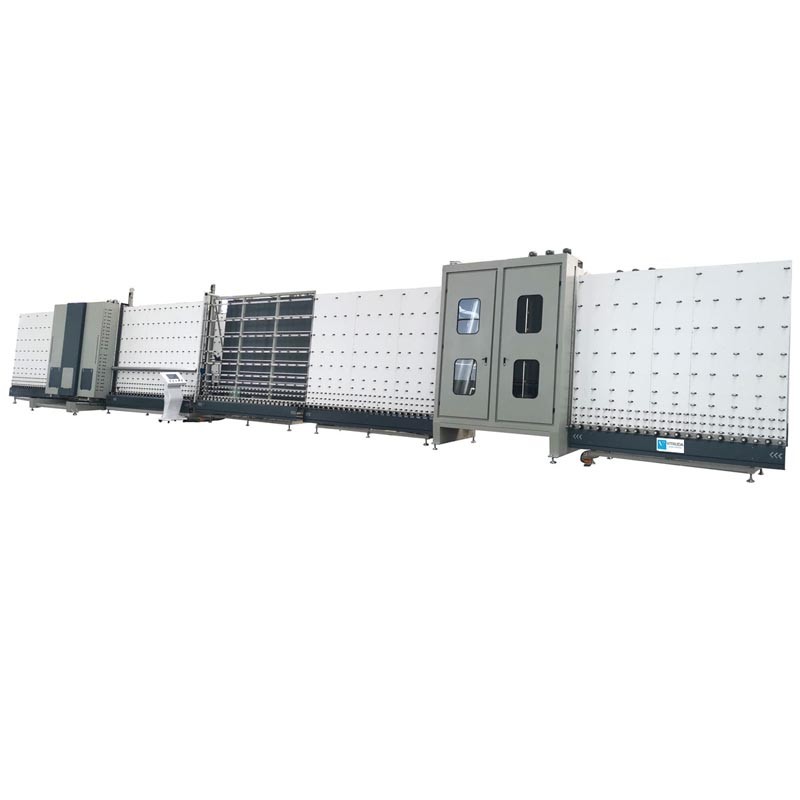

Automatic Glass Washing and Combining Line LBXH2500PW

Automatic Glass Washing and Combining Line LBXH2500PW

DESCRIPTIONS

This LBXH2500PW automatic glass washing and combining line with hydraulic panel press adopts PLC and a touchscreen automated control system. Automatically runs glass conveying, cleaning, drying, and combining processes with high efficiency of insulating glass production.
The cleaning unit is made of stainless steel and other corrosion-resistant materials, with excellent waterproof performance, safety, environmental protection, and long service life.
This automatic glass washing and combining line can manufacture double or triple-glazing of insulating glass and is the critical glass machinery for making insulating glass and energy-saving aluminum and PVC windows.

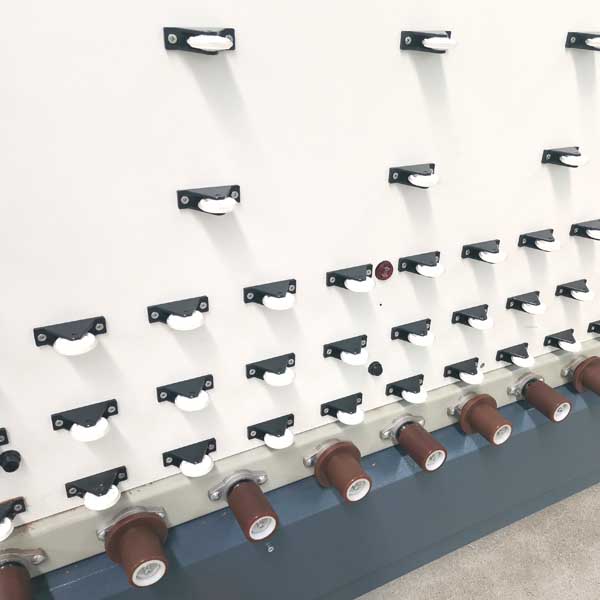

Automatic glass washing and combining line glass feeding

Automatic glass washing and combining line glass feeding

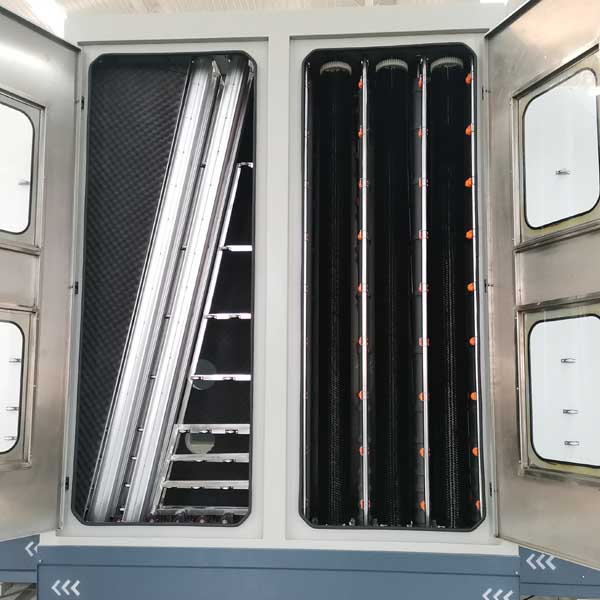

Glass washing and combining line glass washing and drying

Glass washing and combining line glass washing and drying

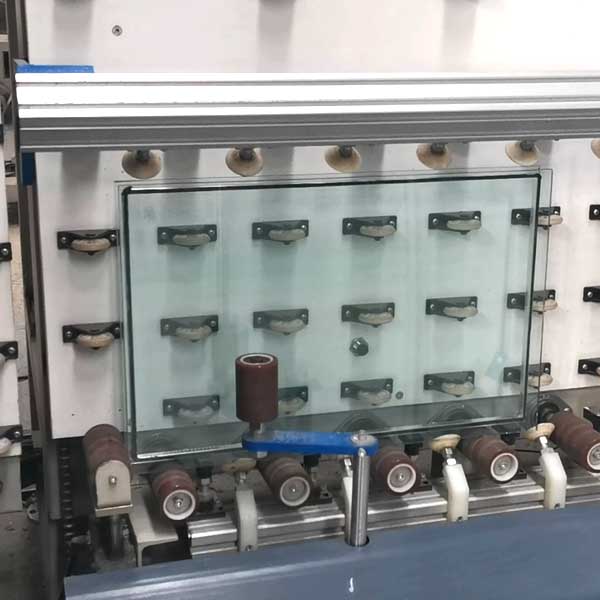

Glass washing and combining line glass combining

Glass washing and combining line glass combining

FEATURES

Automatically identify the film level of coated glass and LOW-E glass.
• Brush rotary speed can be frequency-controlled when cleaning LOW-E glass.
• Adopt oil-free lubrication bearing.
• All electrical parts adopt high-quality brands.
• Hydraulic Panel Press.
• Combination unit stroke can move up to 450mm, making maintenance and repair easy.

TECHNICAL SPECIFICATIONS

Power supply: 380 V/50 Hz
• Total power: 28 kW
• Glass washing speed: 2~8 m/min
• Working speed: 0~45 m/min
• Min, glass size: 450 x 450 mm
• Max. glass size: 2450x 3150 mm
• Max glazing unit thickness: 48 mm
• Single glass thickness: 3~15 mm
• Airflow: 0.8 m3/min
• Air pressure: 1 MPa
• Water electrical conductivity: ≤50 μs/cm
• Water consumption: 0.5 T/h
• Overall dimension: 23100x 1800 x 3350 mm
• Net weight: 8000 Kg
