Aluminum Single Head Corner Crimping Machine for Sale

DESCRIPTIONS

This LZJ04 -160 aluminum single head corner crimping machine is used for crimping the corners of large-section aluminum window and door profiles. Adopts a reinforced profile positioning system and corner crimping structure, which makes the large-section corner crimping more stable.
The design height of the positioning structure of the corner and the holding structure of the cutter can meet the maximum corner section size of 160 mm.
The front positioning structure of the corner adopts an automatic lifting-type internal positioning mechanism and can move forward to meet aluminum profiles of different specifications. The lifting height and feeding distance are adjusted according to the aluminium profile.
The front positioning device is designed in the shape of a crocodile mouth, which is better adapted to various specifications of aluminum profiles.
This aluminum single head corner crimping machine uses a dedicated drive cylinder, and the punching and riveting are larger at the same pressure.

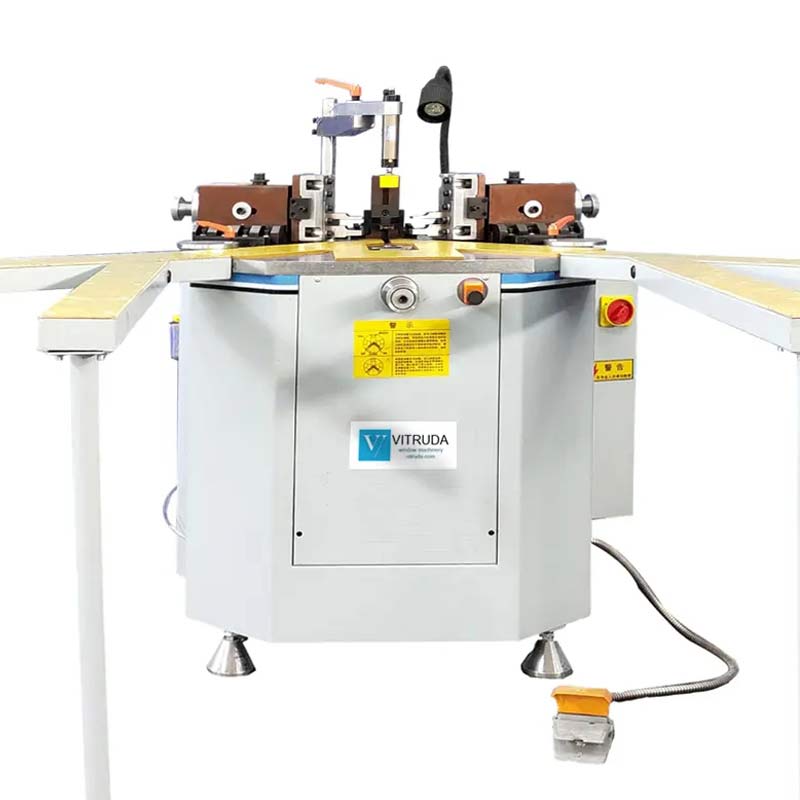

Aluminum single head corner crimping machine worktable

FEATURES

• The unique hydraulic system can provide faster assembly angular velocity and high production efficiency, the corner cutter holder of this aluminum single head corner crimping machine can reach 160 mm, which is suitable for large-section aluminum window profiles.
• Adopt a new mechanical linkage device, realized complete synchronous corner combining, the automatic control system is adopted, which is convenient to adjust, and the heavy-duty hydraulic aluminium corner crimping machine is simpler and more efficient.
• Easy machine setting due to the synchronous feeding device.
• Hydraulic system.

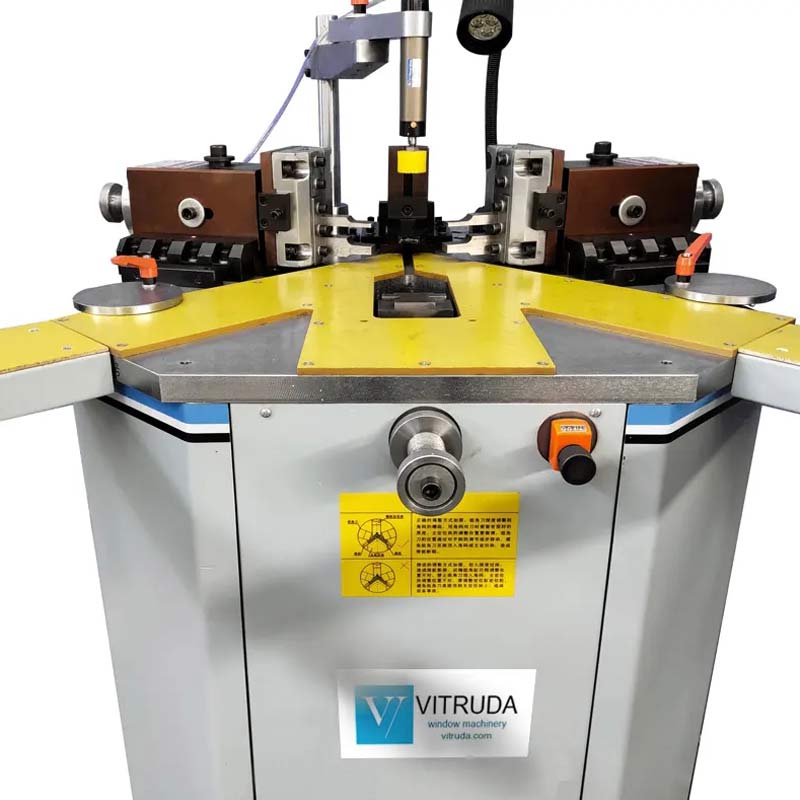

Aluminum single head corner crimping machine corner crimping

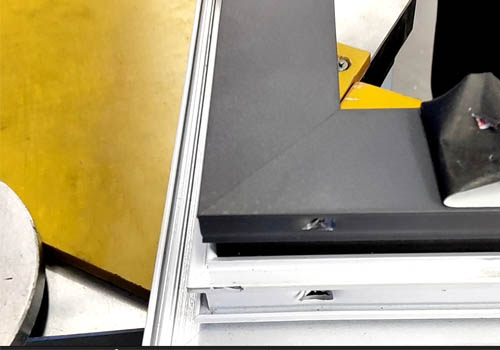

Aluminium corner

SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Input power: 2.2 Kw
• Air pressure: 0.5~0.8 MPa
• Rating oil pressure: 20 MPa
• The capability of the oil box: 30 L
• Max profile processing height: 160 mm
• Max profile processing width: 100 mm
• Cylinder movement stroke: 0~100 mm
• Dimensions (Width × Depth × Height): 1200×1180×1200 mm
• Net weight: 450 Kg
