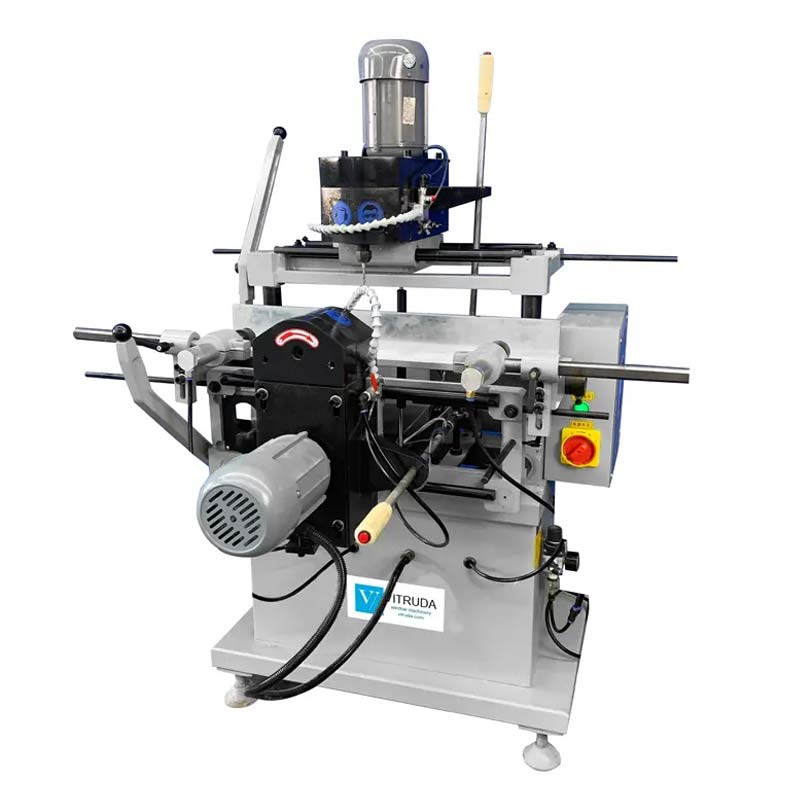

Double Head Copy Routing Machine for Aluminium Profiles

PRODUCT DESCRIPTIONS

This LSXZ2 Double head copy routing machine for aluminium profiles is suitable for lock, handle, hinge, and latch slot, and channel opening processes by rotating the profile on 2 surfaces of aluminum and PVC profiles. It is the necessary router machine for processing aluminum windows.
This router machine has one vertical and one horizontal copying unit, driven by two motors to rotate the milling cutter in the vertical and horizontal directions without releasing the window profile, a. Thrilling depth in both directions can be positioned and adjusted.
The copy dies of the Double head copy routing machine for aluminium can be customized at a ratio of 1:1 according to actual hole milling requirements.

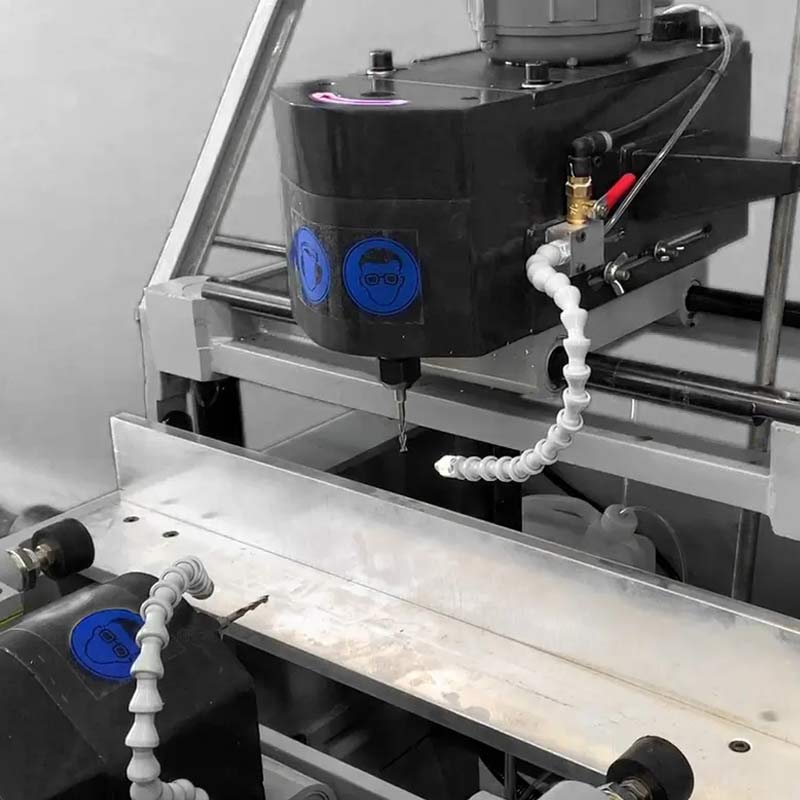

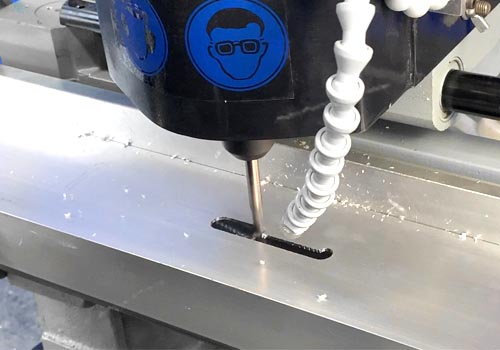

Double head copy routing machine vertical routing

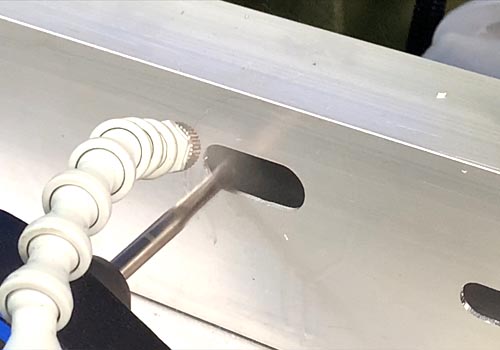

Double head copy routing machine horizontal routing

FEATURES

• The LSXZ2 Double head copy routing machine for aluminium profile is equipped with a spray cooling system to ensure the smoothness of milling and prolong the service life of milling cutters.

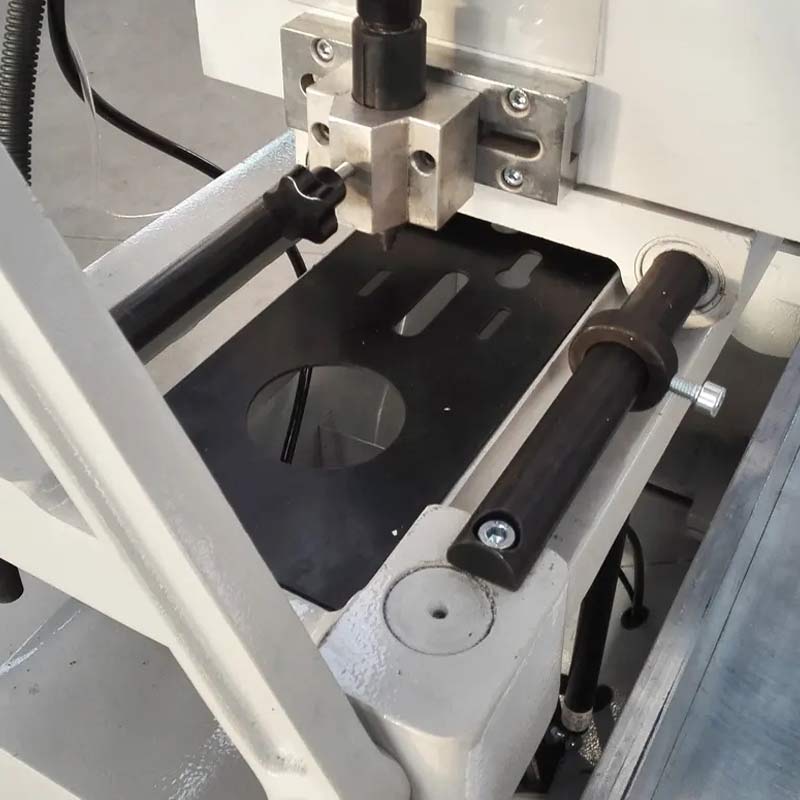

• The profiling contact rod has two standards of 5 mm and 8 mm,  selected according to the diameter of the milling cutter. Proper copy mechanism for process.
• This copy router can open various channels independently from copy mechanisms with the help of profile gauges.
• Adopt two independently operating motors for an independent milling process on 2-different surfaces.
• The copy routing machine has high precision and reliable performance with recirculating ball bearings, and an ergonomic handle design.

TECHNICAL SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Input power: 2×1.5 Kw
• Air pressure: 0.5~0.8 MPa
• Air consumption: 30 L/min
• Milling cutter Diameter: Ø 5 mm / Ø 8 mm
• Copy milling range: 290×100 mm
• Main-Shaft Revolution: 12000 r/min
• Dimensions (Width × Depth × Height): 870×750×1500 mm
• Net weight: 300 Kg
