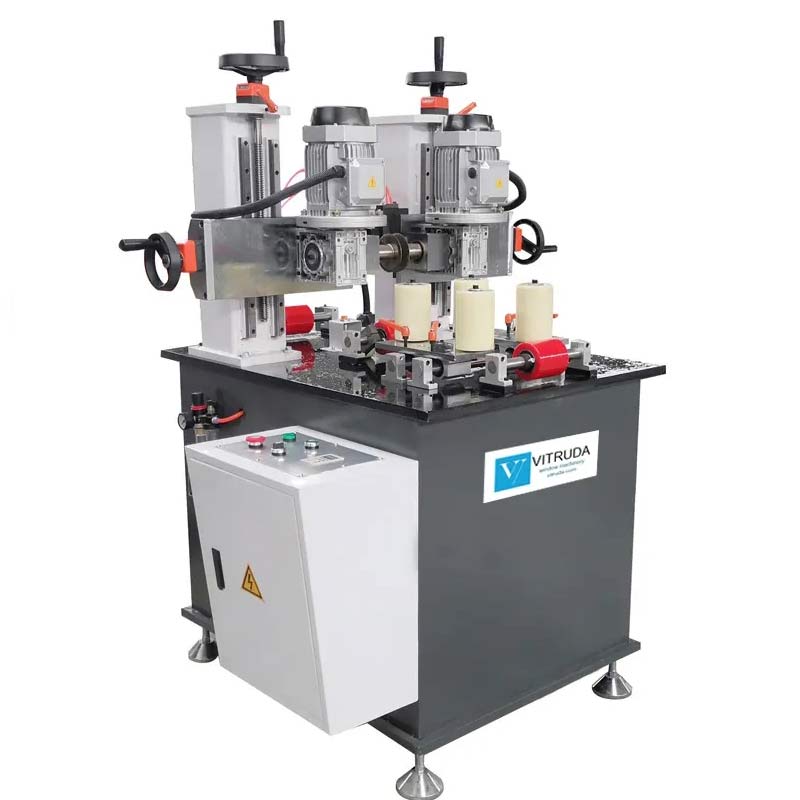

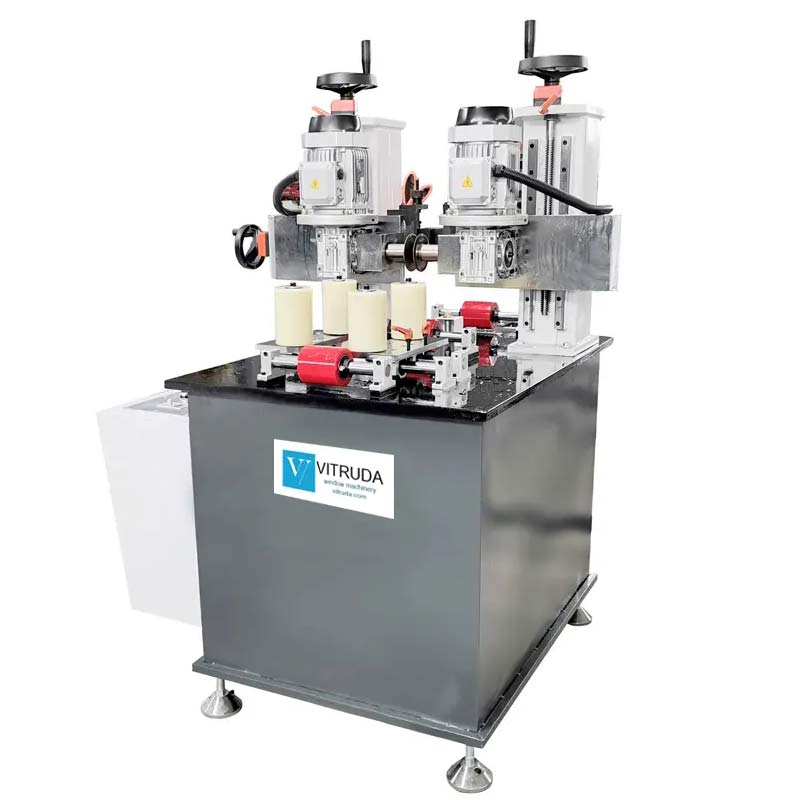

KCJ-02 Aluminium Knurling and Assembling Machine

DESCRIPTIONS

This aluminium knurling and assembling machine is mainly used used for knurling the aluminium profile and assembling the heat insulation strip, the aluminum shear force is greatly improved by opening the teeth in the slot of the profile through the high-speed operation of the cutter.It is equipped with a special clamping pneumatic device.

The function of processing aluminum profile notch is to cut teeth and wear heat insulation strips, the high-speed tooth cutter inserts the aluminum alloy profile into the notch of the heat insulation strip to open the teeth to improve the shearing force of the heat insulation strip and the aluminium alloy composite profile. It is one of the main aluminium profile equipment in the production of heat insulation aluminium profiles.

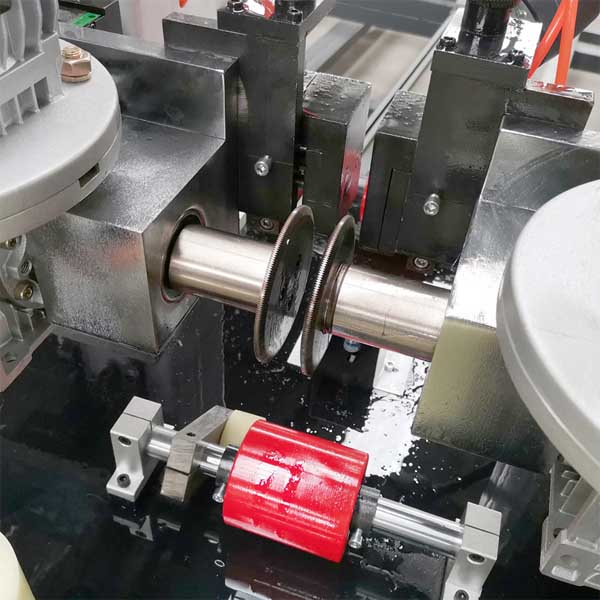

Aluminium knurling and assembling machine details

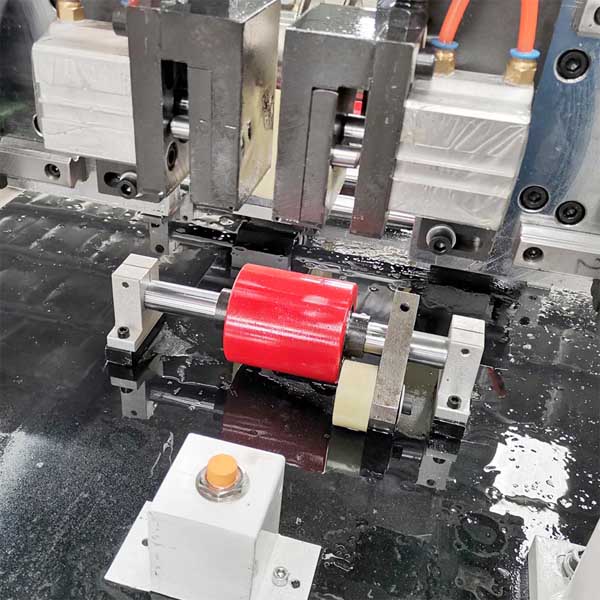

Aluminium knurling and assembling machine assembling system

FEATURES

• The profile knurling blade can be adjusted to adapt to different shapes of aluminium profiles.
• Each knurling blade can be adjusted individually.
• Use high-quality hard alloy knurling blades.
• Through the guiding structure, the two insulating strips are accurately inserted into the aluminum trough, the speed of the strip insert can be adjusted, the operation is simple and flexible, and the production efficiency is greatly improved.

TECHNICAL SPECIFICATIONS

• Power supply: 380 V 50 Hz
• Total power: 0.75 kw*2
• Cutter diameter: φ80 mm
• Supporting wheels height: 0-20 mm
• Speed: 0-90 m/min （adjustable）
• Profile section: Width 260 mm x Height 260 mm
• Dimension: 1000 x 1100 x 1550 mm
• Net weight: 550 Kg
