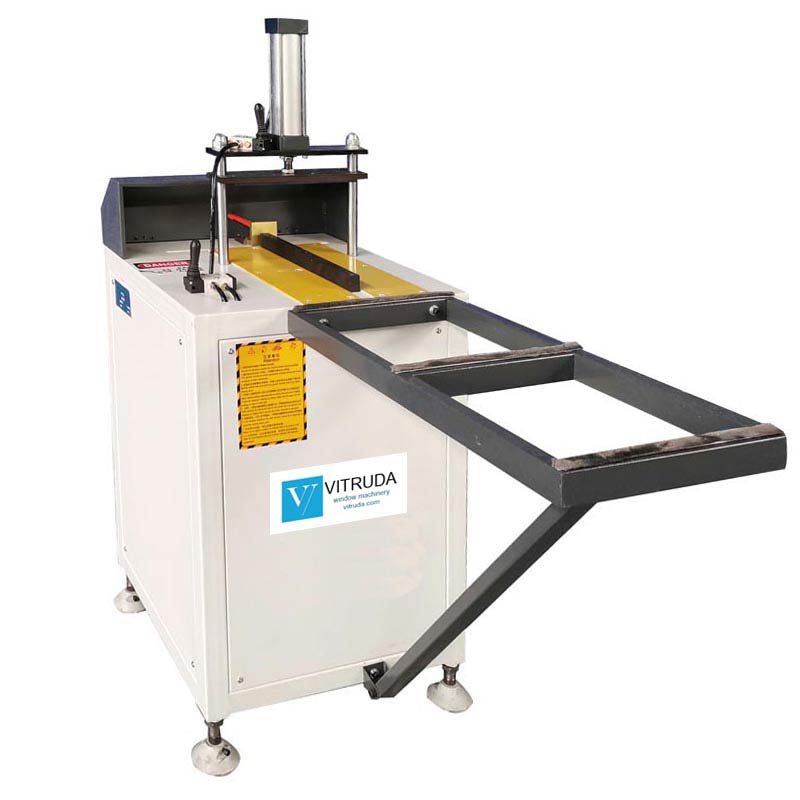

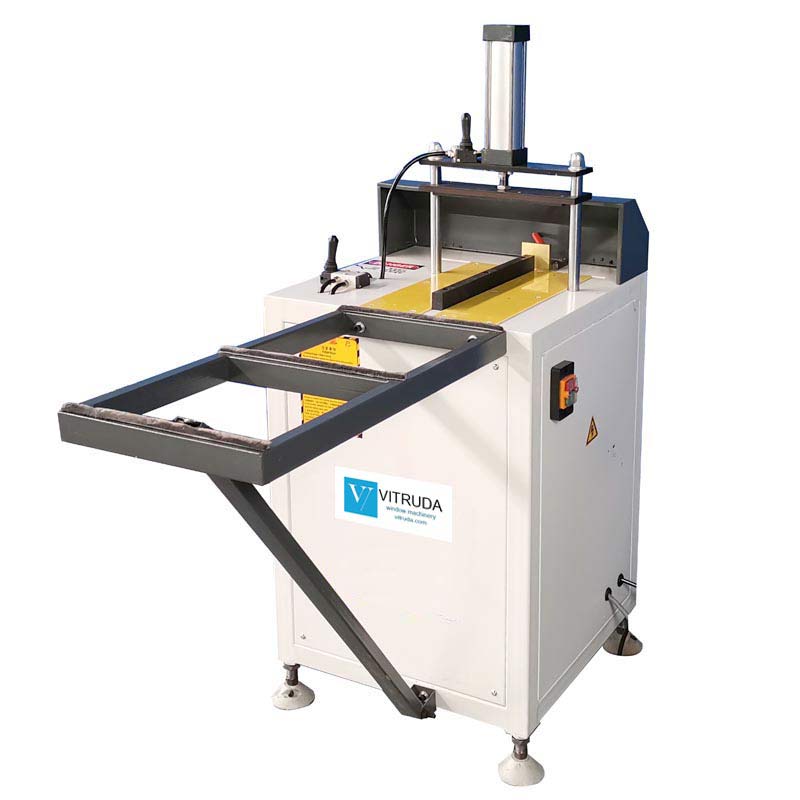

LJZ05 Aluminum Corner Cutting Machine

PRODUCT DESCRIPTIONS

1. This single head aluminum corner cutting machine is mainly used for cutting corners of aluminum windows. It consists of a machine frame, a profile positioning and pressing mechanism, a fixed-length adjustment mechanism and a pneumatic control system.

2. The single head aluminum cornercutting machinesaw blade adopts vertical lifting and stable operation.

3. The aluminum corner cutting size can be adjusted according to aluminum profiles and aluminum corner hardware.

4. After aluminum profiles are cut with this corner cutting machine and installed with special corner hardware, the corners of the window can avoid the harm to people, especially children.

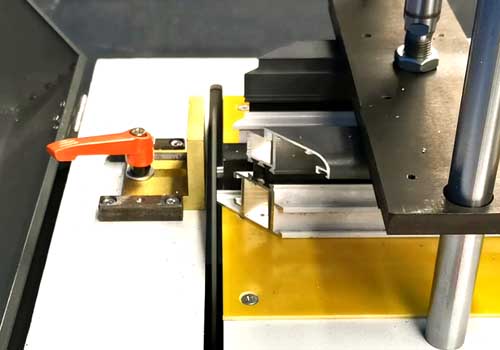

Aluminum corner cutting machine corner cutting

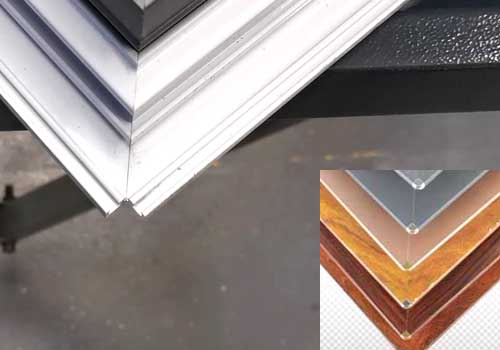

Aluminum corner cutting machine corner cutting effect

TECHNICAL SPECIFICATIONS

Power supply: 380 V/50 Hz
Total power: 0.75 Kw
Working air pressure: 0.5~0.8 MPa
Air consumption: 10 L/min
Diameter of blade: 300 mm
principal axis rotate speed: 2800 r/min
Cutting height: 80 mm
Cutting width: 150 mm
Dimensions:(Width×Depth×Height): 600×500×1200 mm
Weight when empty: 110 Kg
