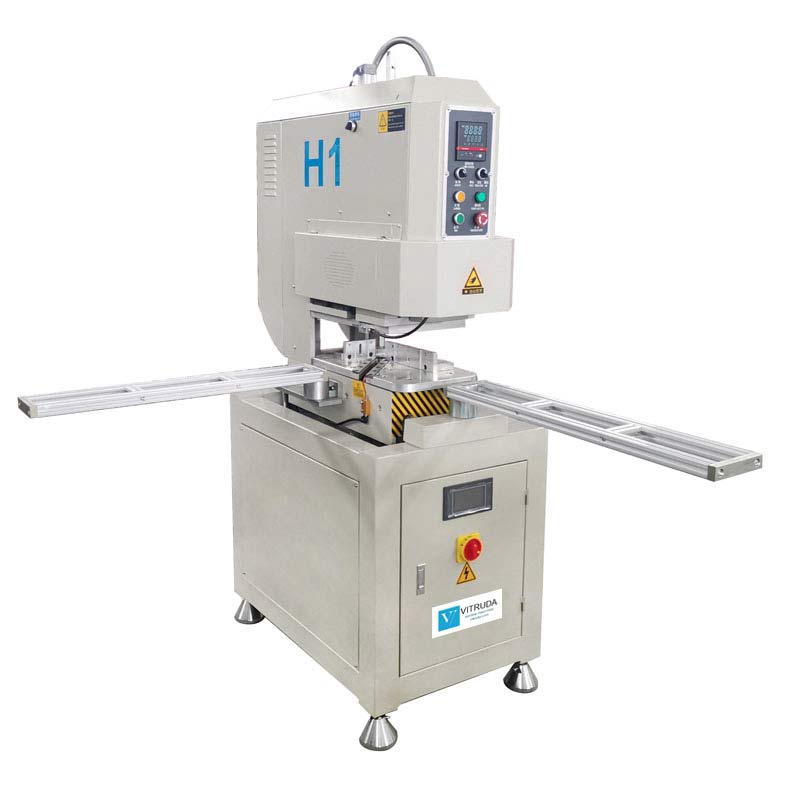

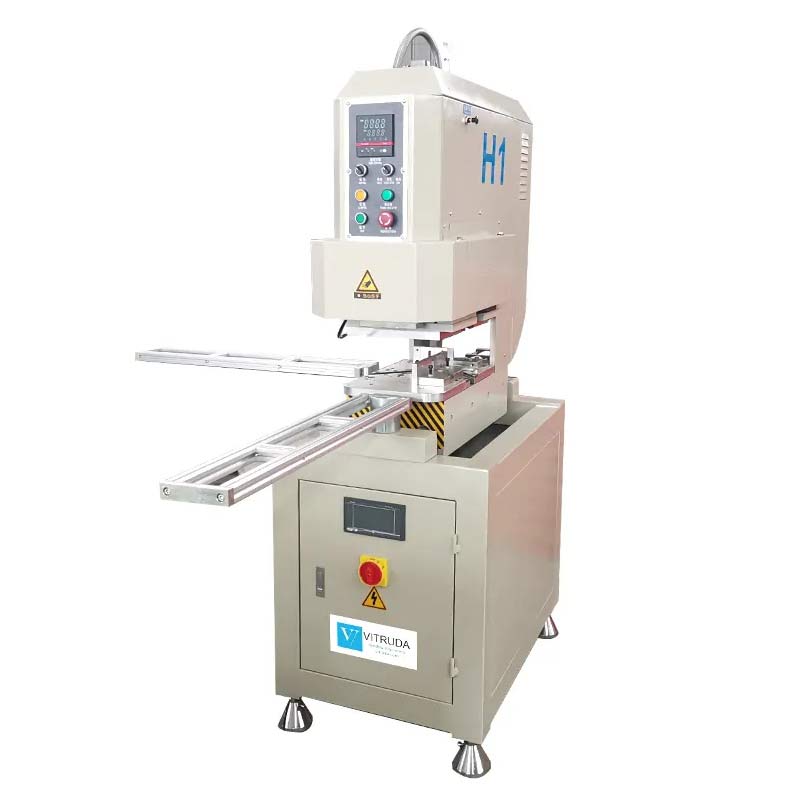

UPVC Window Single Head Seamless Welding Machine

PRODUCT DESCRIPTIONS

This uPVC window single head seamless welding machine is composed of an operation unit, a parameter setting unit, a welding unit, a machine base, a profile support unit, etc. The machine has pneumatic motion, and the auxiliary movement is CM oil-free bearing and linear ball bearing.

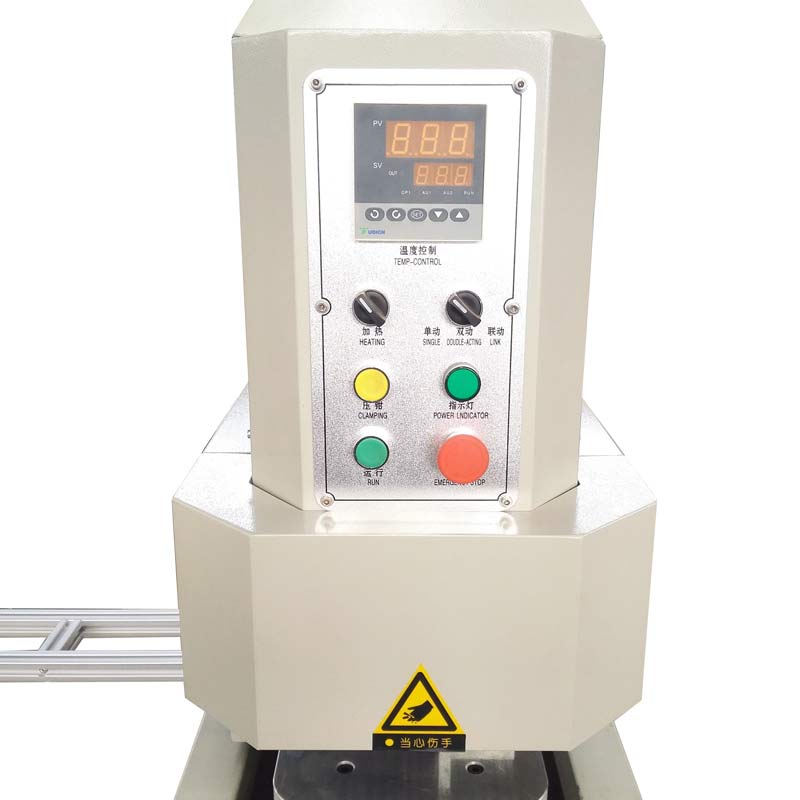

The welding process of the machine adopts the PLC control system, and the whole welding process of the window corner can be completed only by operating the button, operation is easy.

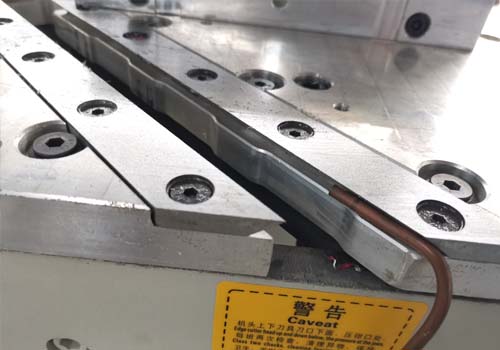

The difference between this single head seamless welding machine and the uPVC window welder is that it adds a welding seam cleaning structure and blowing system, as shown in the figure below. With these constructions, the surface of the window corners does not need to be cleaned and has a beautiful look, especially suitable for two-color co-extrusion window profiles.

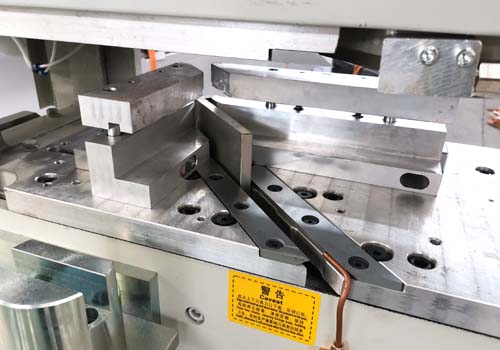

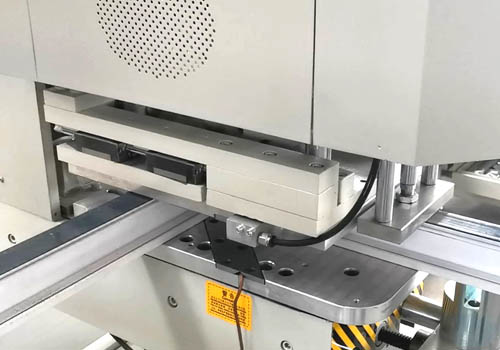

single head seamless welding machine details

uPVC window two-color co-extrusion corner welding

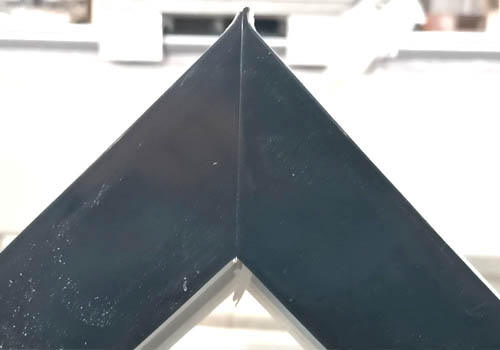

uPVC window corner seamless welding effect

FEATURES

• The corner welding process of this uPVC window single head seamless welding machine is controlled by the PLC system, and the welding is automatically completed.
• Adopt the second pressing function to ensure the corner welding strength.
• All working parameters of this single head seamless welding machine(e.g., heating and corner joining time, welding and joining pressure, etc.) are adjustable to meet the PVC profile welding requirement.
• A pneumatic system is used to provide working pressure.
• The heating temperature is set and controlled by the temperature controller.
• Support cutting tool exchange.
• Multilayer profile stop is available and can be customized according to the profile.

What Type of Windows Can a Single head Seamless Welding Machine Make?

American-style profile dies

TECHNICAL SPECIFICATIONS

• Power supply: 220 V/50 Hz
• Input power: 2.2 Kw
• Air pressure: 0.5~0.8 MPa
• Air consumption: 80 L/min
• Welding width(max): 120 mm
• Welding height: 20~160 mm
• Dimensions (Width×Depth×Height): 650×1100×1850 mm
• Net weight: 400 Kg
