Aluminum Extrusion Bending Machine

DESCRIPTIONS

This CNC aluminum extrusion bending machine is suitable for bending aluminum extrusion and forming metal profiles of different sections and materials.

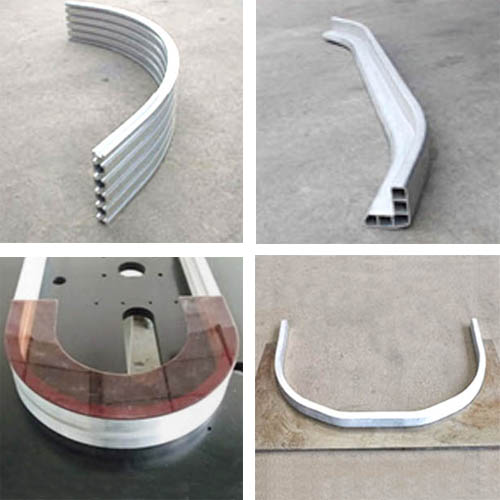

This CNC bending machine can process 3D graphics, C-shaped, U-shaped, 3R-shaped, multi-segment arc programs (2D variable curvature), etc. It is an ideal bending machine for processing large-section profiles and is widely used in high-speed rail, ships, building windows, curtain walls, and other industrial fields.

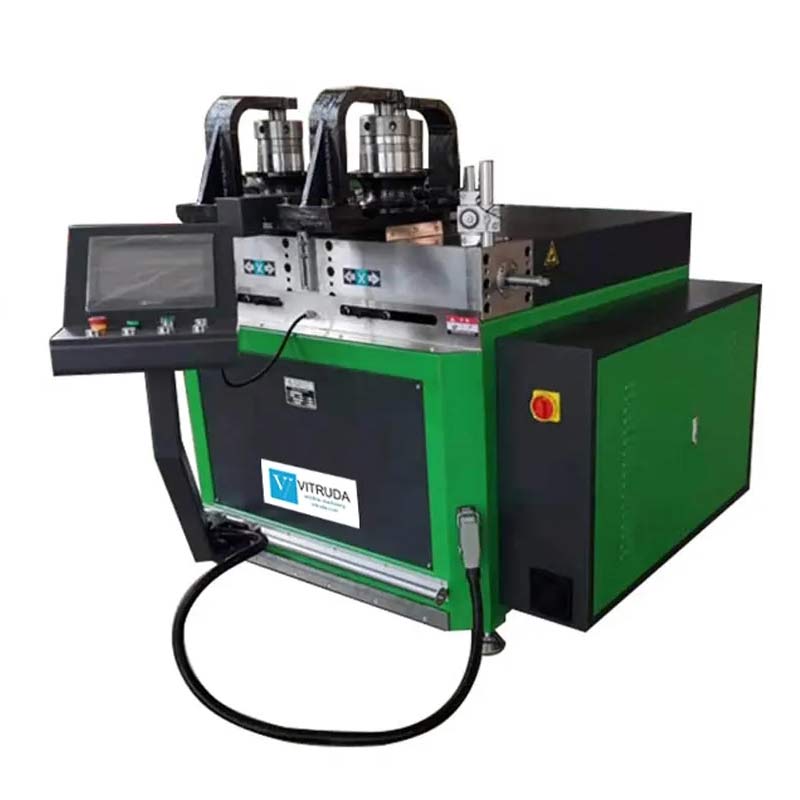

The machine adopts three sets of rotating rollers, two sets of profile rollers (mechanical adjustment), and 1 set of spindle hydraulic feed mechanisms.
Displacement in the Y-axis direction allows the profile to be bent one or more times in the X-axis direction between the three sets of rollers to the required size.
The arch length of the processed shape is collected through the encoder full-closed loop control and controlled by the motion control system to achieve high precision requirements.

Auminum extrusion bending machine profile bending




FEATURES

• This CNC aluminum extrusion bending machine adopts PLC and touch screen operation system, and the profile can be rolled and formed one or more times as needed.
• Steel plate quenching and tempering treatment, quenching treatment, dovetail groove structure connection, and each surface are the ground.
• After the machine’s structure is combined, the upper and lower planes are processed by a grinder, and the surface is electroplated with hard chrome.
• The CNC servo motor drives the planetary reducer, and the reducer drives the mold spindle to rotate.
• This structure can ensure that the linear speed of the roller mold is consistent by adjusting the speed ratio.
• The aluminum extrusion bending machine has ample driving torque and is suitable for bending large-section profiles.
• The machine has a 3-axis design, three servo motors & hydraulic system.
• Multiple shape programs provide.

SPECIFICATIONS

• Y-axis push rod rated thrust: 30 T
• Y-axis push rod positioning accuracy: ≤0.02 mm
• Torque of X-axis: 9000 N.M
• Three shaft speed: 1-15 r/min
• Fixed axle spacing: Adjustable 400~600 mm
• Min bend radius: R=100 mm(50 mm top bend)
• Spindle diameter: 80 mm
• Maximum diameter of roller mold: 360 mm
• Minimum processing radius (inner arc):100 mm
• Maximum section of machinable profile: Max width 200 mm， max height 250 mm
• Machine Dimensions: L x W x H = 1400 x1200 x1500 mm
• Net weight: 2200 Kg
