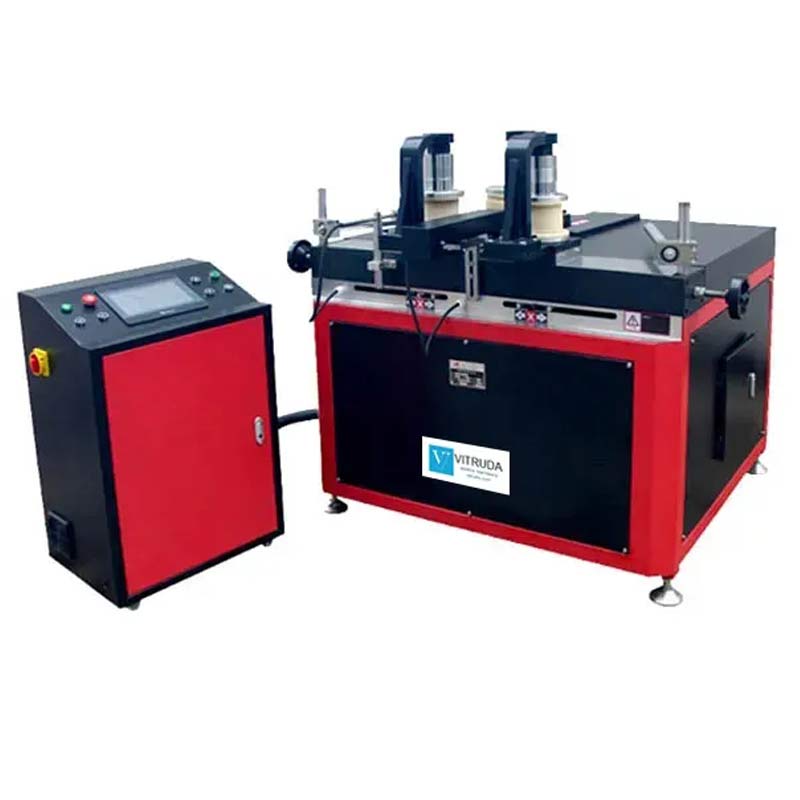

Aluminum Profile Bending Machine LGW-CNC-25T

DESCRIPTIONS

1. This CNC aluminum profile bending machine is suitable for bending different sections of aluminum profiles or tubes. equipped with three rollers and photoelectric positioning; through the rollers matched with the profile section, using the principle of the three-point circle, the displacement of the middle roller is automatically adjusted, so that the profile can enter between the rollers at one time. With or multiple feeds, the profile is formed to the required radius one by one. The length of the feed is collected by the encoder, and the rotation and feed of the roller are controlled by the program controller. At the same time, the displacement of the roller and the feed of the intermediate roller are controlled by a fully closed-loop CNC AC servo control system to achieve high precision.
2. The professional bending program is adopted, and the bending process can be automatically completed by selecting the bending shape program, and only need to input the sizes of the products. The operation is easy, the process is controllable, and the bending size has high dimensional accuracy.
3. This automatic aluminum profile bending machine can bend various shapes such as C-shape, U-shape, full circle, oval, and multiple radius combinations.
4. All three axes are active axes, and all have "anti-tilt" devices.
5. The electrical system is made in accordance with export European standards, with high safety.
6. The bending rollers of this aluminum profile bending machine need to be customized according to the customer's aluminum profiles.

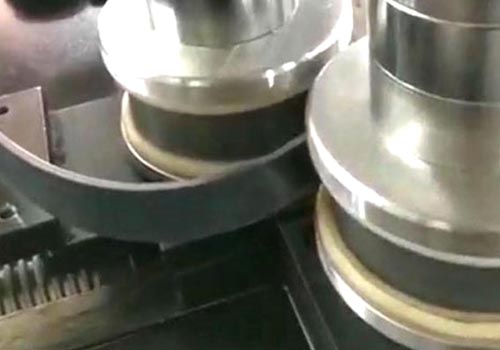

Aluminum profile bending machine dies

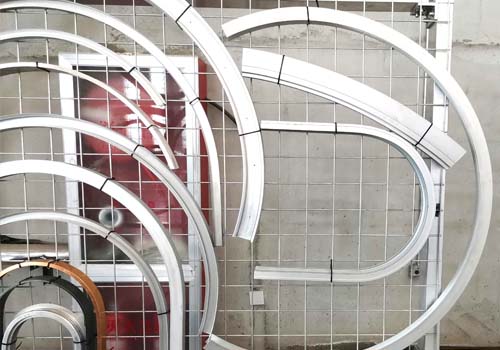

Aluminum profile bending machine products

SPECIFICATIONS

• power supply: 380 V 50 Hz
  Total power:  8.0 Kw
  Y axis push rod rated thrust: 25 T (Max. 20 T)
  Y axis push rod positioning accuracy: ≤0.02 mm

• Torque of X axis: 4000 N.M（Max 6000 N.M）

• Three shaft speed: 1-15 r/min

• Fixed axle spacing:  Adjustable 280~600 mm

• Min bend radius: R=100 mm(50 mm top bend)

• Spindle diameter: 60 mm

• Maximum section of machinable profile: Max width 150 mm， max height 200 mm

• Machine Dimensions:  L x W x H = 1300 x 1200 x 1400 mm

• Electrical operation table size：L x W x H = 500 x 300 x 1200 mm

• Net weight: 1200 Kg
