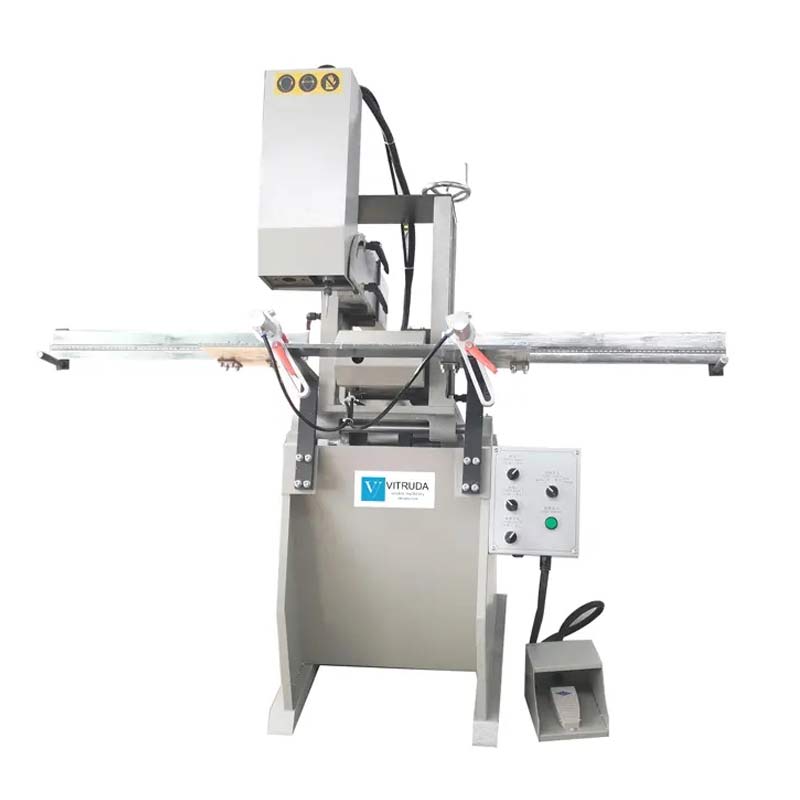

SCX01 Double Head PVC Water Slot Machine

DESCRIPTIONS

This automatic double head PVC water slot machine is suitable for PVC profile water slot automatic drilling and milling. It is a critical uPVC window machine for uPVC profile water slot milling, It consists of two milling units, an angle adjustment structure, an operation box, and a bed.
Its workbench is fixed, and the two milling units are on an integral frame structure, which moves on the guide rail to complete the processing of the water slots and ensure the processing of the water hole is more stable.
The processing unit adopts a high-speed motor to ensure the smoothness of the water hole,  according to the processing requirements of the water slot, the diameter and length of the drills can be changed, and the angle of the No. 2 machining unit can be adjusted.

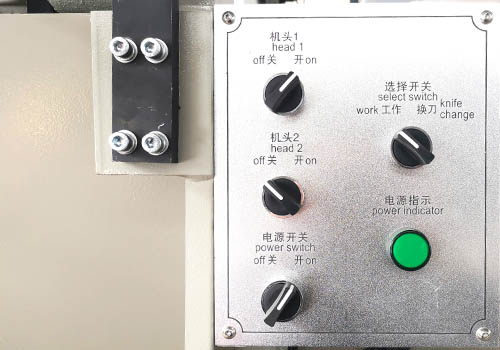

The system adopts pneumatic control as much as possible, and the processing of water slots can be automatically run by stepping on the foot switch.

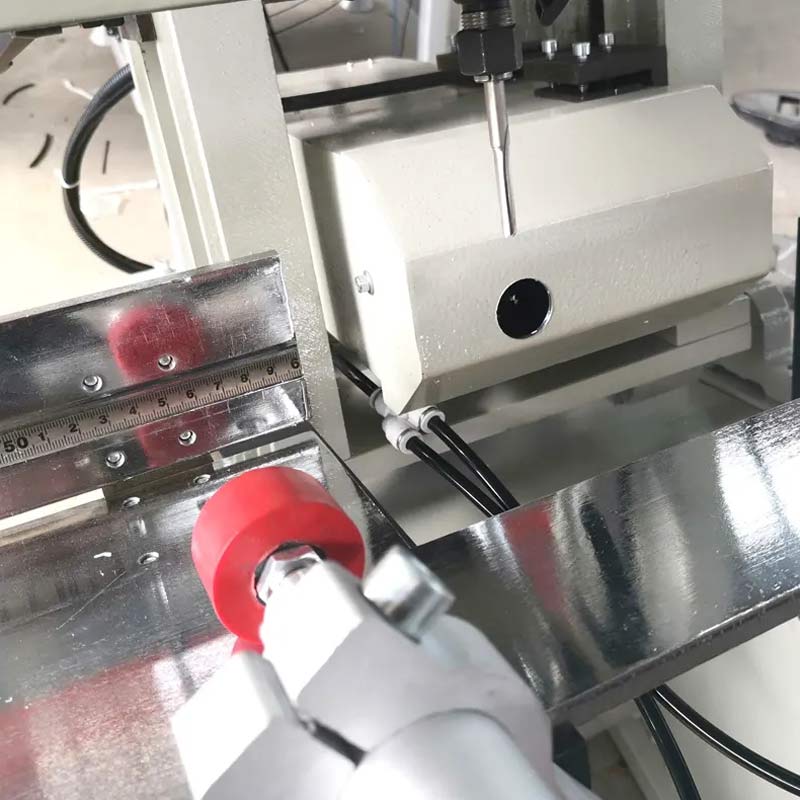

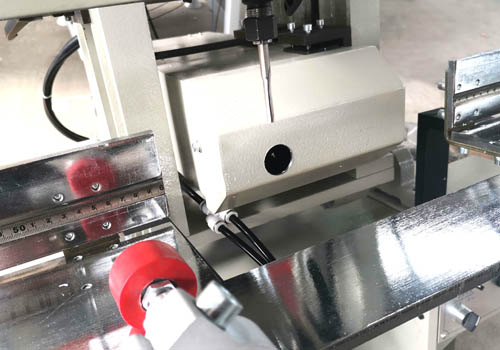

Double head PVC water slot machine milling unit

FEATURES

This double head PVC water slot machine has two drilling units suitable for drilling the surface and inside water slots of the PVC profiles.
The two water slot drilling units are independent and can be used together and separately from each other.
The water slot drilling and milling speed are adjustable.
Horizontal pneumatic clamping.
The two drills are replaceable.
High-frequency motors.

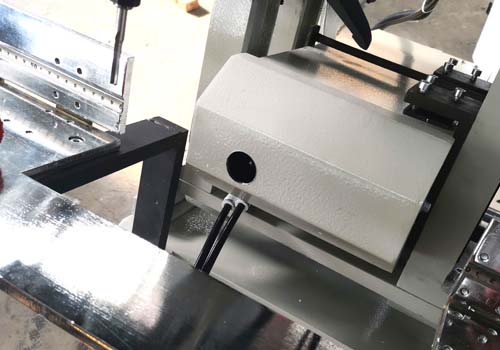

Double head PVC water slot machine drill

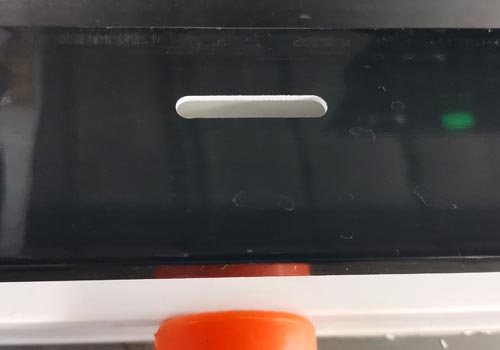

Double head PVC water slot machine slot milling effect

SPECIFICATIONS

• Power supply: 220 V/50 Hz
• Input power: 1.5 Kw
• Air pressure: 0.5~0.8 MPa
• Air consumption: 20 L/min
• Cutter Diameter: ∮4×50/75 mm ∮5×50/75 mm
• Slot length: 30/60 mm
• Slot Depth(max): 30 mm
• Dimensions (Width×Depth×Height): 1830×750×1600 mm
• Net weight: 220 Kg
