Aluminium Profile CNC Machining Centers

Product Item : GCGZD-CNC-800
Category： Aluminum CNC Drilling Machines
Color : gray/white
Origin： China
Application: Designed for aluminum profiles drilling and milling
INQUIRY EMAIL

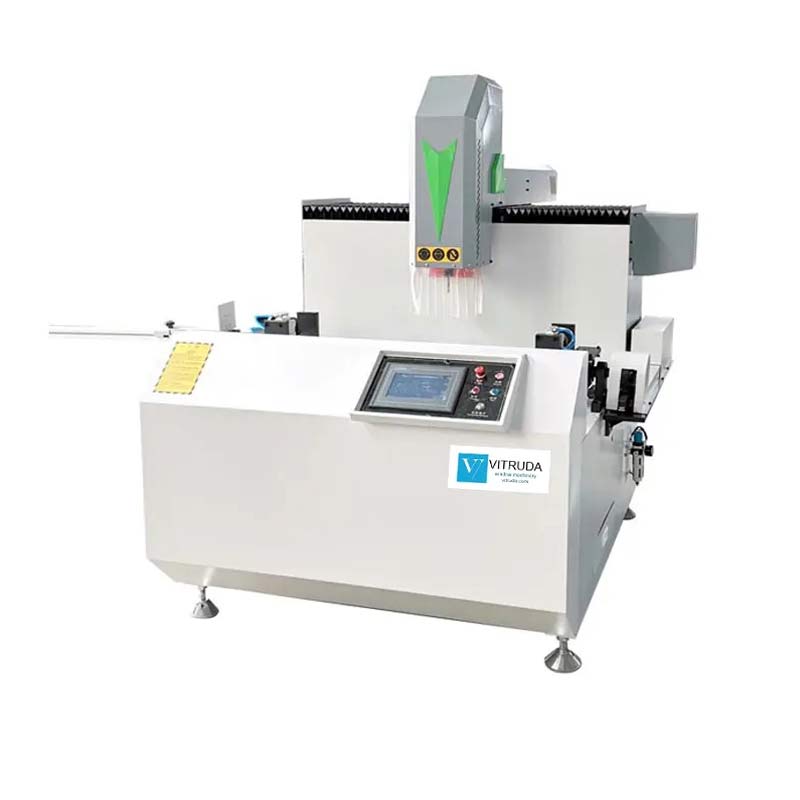

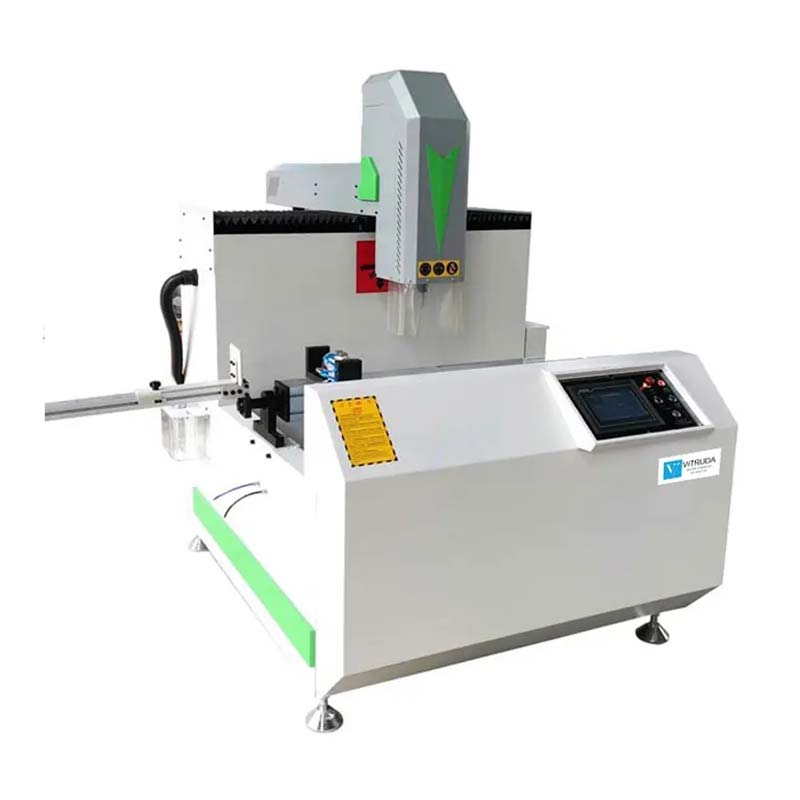

Aluminium Profile CNC Machining Centers

DESCRIPTIONS

This GZD02 aluminium profile CNC machining centers is suitable for machining various shape holes on aluminium profiles, such as water slots, lock holes, hardware holes, etc., programming a program according to the shape and size of the hole. The machine consists of a drilling unit, a rectangular guideway, a 3-axis servo drive system, a touch screen, a rotatable table, and a bed.
The drill unit can move on a rectangular guide rail in X, Y, and Z directions, driven by high-quality closed-loop servo motors and high-precision linear guide pairs, and roller screws. The movement is fast and stable with high precision.
The worktable can be rotated at -90 degrees, 0 degrees, and 90 degrees, the machining unit can process the three sides of the aluminum profile in one operation with high machining accuracy and efficiency. The positions and sizes of the holes on these three sides are set through the touch screen, and the processing is completed at one time.

This aluminum profile CNC machining center is suitable for the efficient processing of multiple sides of aluminum profiles and holes of various specifications. It is more efficient than a copy-routing machine in making aluminum windows and doors.

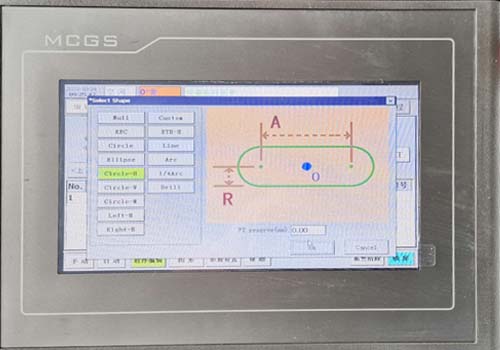

Aluminium profile CNC machining centers touchscreen

Aluminium profile cnc machining centers touchscreen

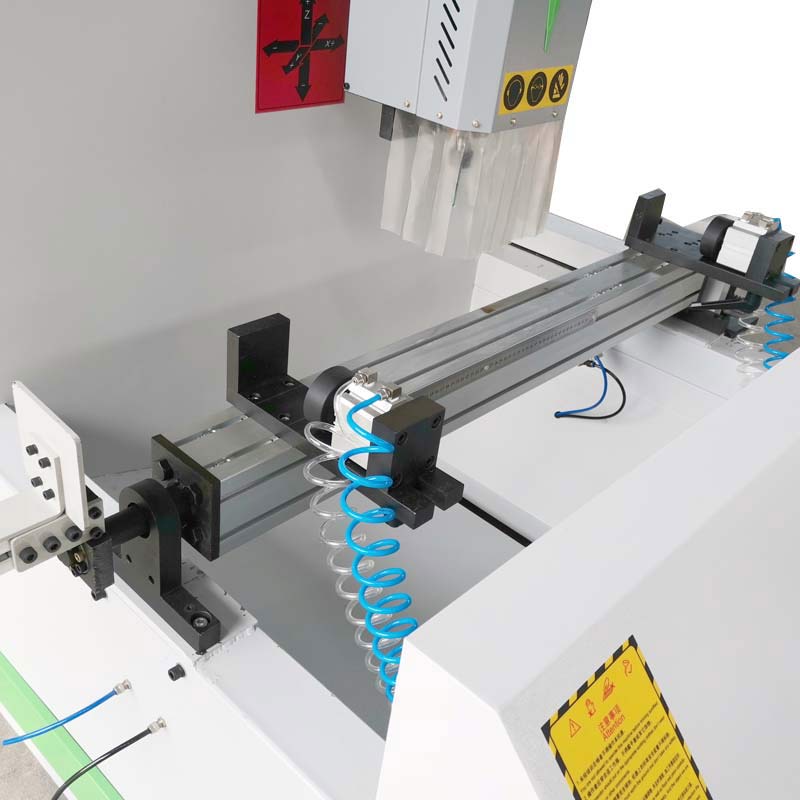

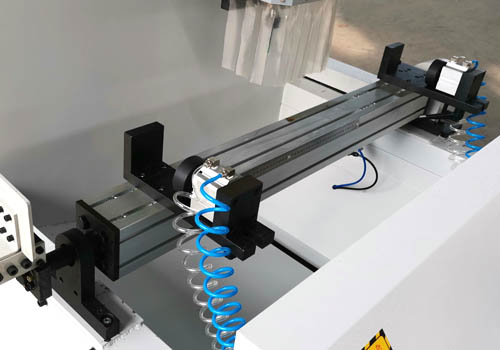

aluminium profile CNC machining centers details

aluminium profile cnc machining centers details

FEATURES

• The machining motor adopts a high-speed spindle motor, which has low rotating noise, strong drilling and milling ability, and a smooth machining surface.
• The vegetable oil micro cooling system is adopted to increase the service life of the drills effectively and is non-toxic and pollution-free.
• The best drill bit for aluminium profile machining is used to ensure the smoothness of machining and drilling deep holes in aluminium profiles.
• An intelligent numerical control system and a simple touchscreen make the operation of the aluminium profile CNC machining centers more convenient and quicker.
• The rotated worktable can shift at any position of -90°,0°90°.
• -90°,0°90° three sides machining.

• 6,8,12 mm drill bit clamping devices available.

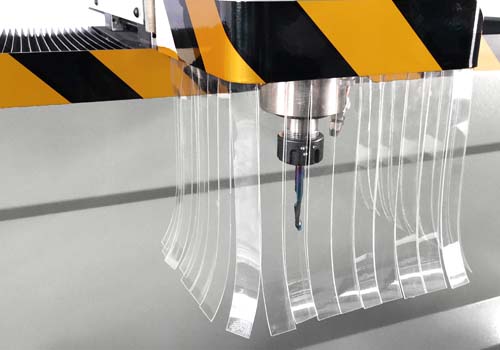

Aluminium profile cnc machining centers drilling unit

Aluminium profile cnc machining centers drilling unit

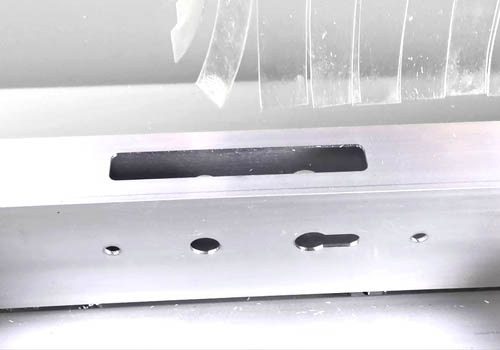

Aluminium profile cnc machining centers hole processing

aluminium profile cnc machining centers

SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Input power: 6 Kw
• Air pressure: 0.5~0.8 MPa
• Air consumption: 10 L/min
• Milling range: 700×160×200 mm
• Rotate speed: 0-18000 r/min
• Spindle power: 3.5 KW
• Milling cutter diameter: 5/8 mm
• Machined surface: -90°/ 0°/ 90°
• Dimensions (Width × Depth × Height): 800×1700×1850 mm
• Net weight: 750 Kg
