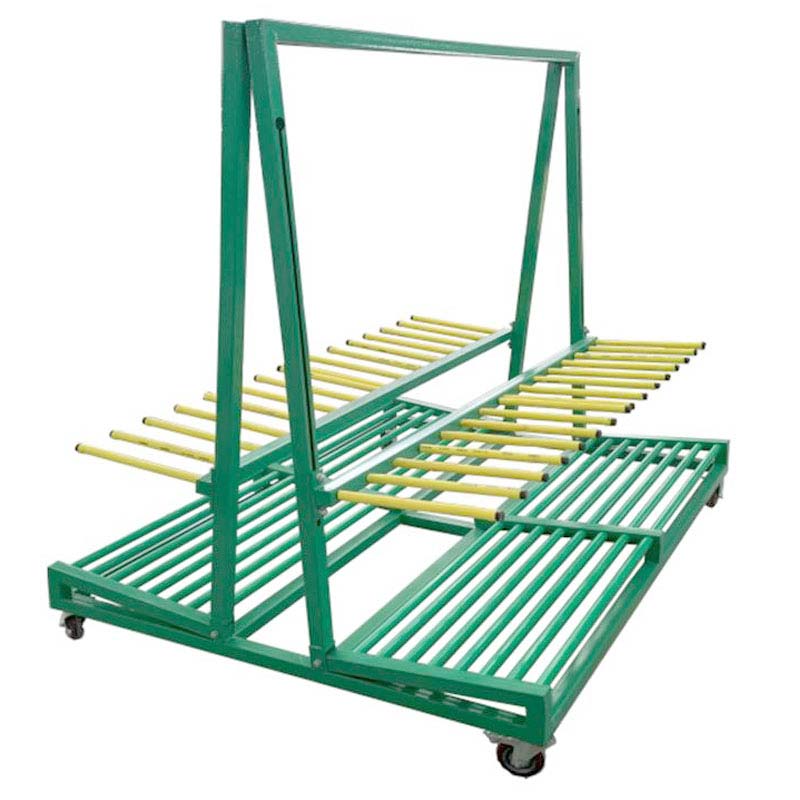

SKTC2B Vertical Window Profile Transporter

PRODUCT DESCRIPTIONS

1. This double-side vertical window profile transporter is suitable for vertical placement and transportation of window profiles with a length ≥ 400 mm. The height of the second auxiliary segmentation layer can be adjusted within the range of 300-1150 mm according to the length of the profile.

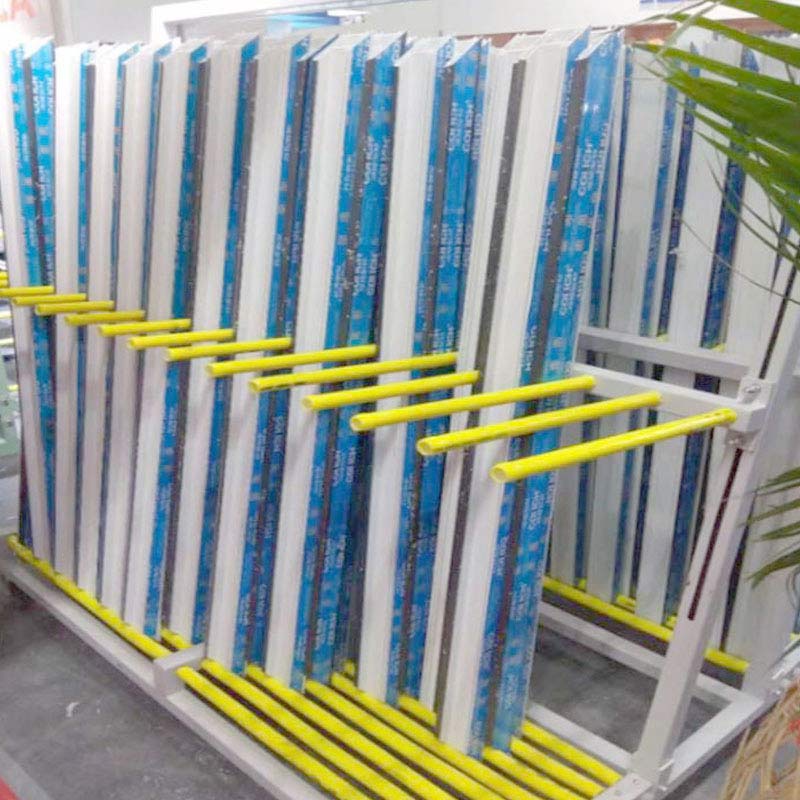

2. The window profiles are placed vertically, which is not only convenient for access, but also avoids the tip of the profile and the extrusion between the profiles.

3. The vertical placement of the profile can reduce the space occupation of the workshop and is also convenient for transportation.

4. The use of the vertical double-sided window profile transporter not only realizes that the material does not fall to the ground and avoids the profile scratches, but also improves the production environment of the workshop, improves the turnover efficiency of the workshop materials and the utilization rate of the site, and also greatly reduces the labor intensity.

TECHNICAL SPECIFICATIONS

Dimensions:(Width×Depth×Height): 1800×1300×1700 mm
Weight when empty: 110 Kg
