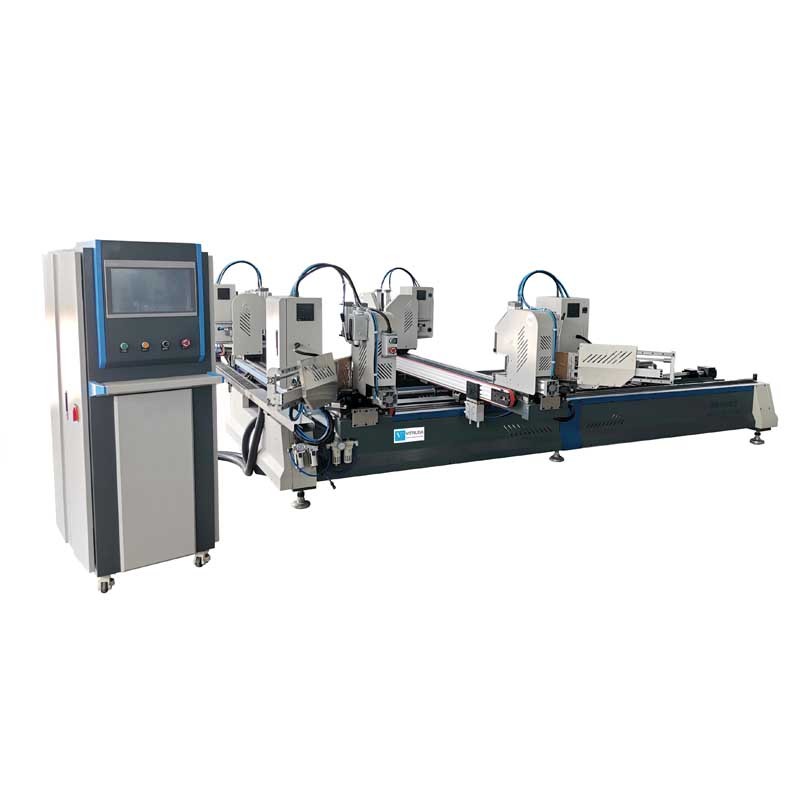

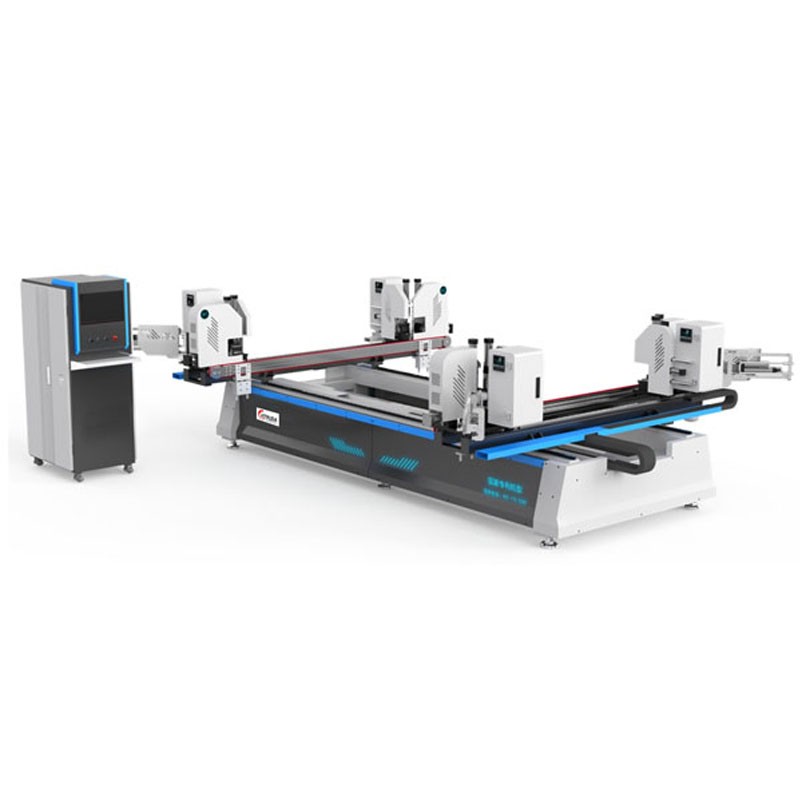

UPVC Window CNC Four Corner Welding Machine

  • Product Item : HRWF-CNC-150×1800×3000
  • Category: UPVC Welding Machines
  • Color: gray/white
  • Country of Origin: China
  • Application: Designed for PVC window four corner welding
  • INQUIRY   EMAIL

uPVC Window CNC Four Corner Welding Machine

PRODUCT DESCRIPTIONS

uPVC window CNC four corner welding machine used for welding and forming PVC profile into a rectangular window frame at one time.
The weld cleaning tool of the CNC four corner welding machine is made of Cr12MoV alloy with high precision, finished by quenching and precision machining, which is more suitable for co-extruded profiles of laminated profiles.
The tool adopts a standardized design; cleaning the PVC window corner is stable and supports tool interchangeability.
The integrated positioning and heating plate design reduces the positioning plate expansion and translation time and improves processing efficiency.

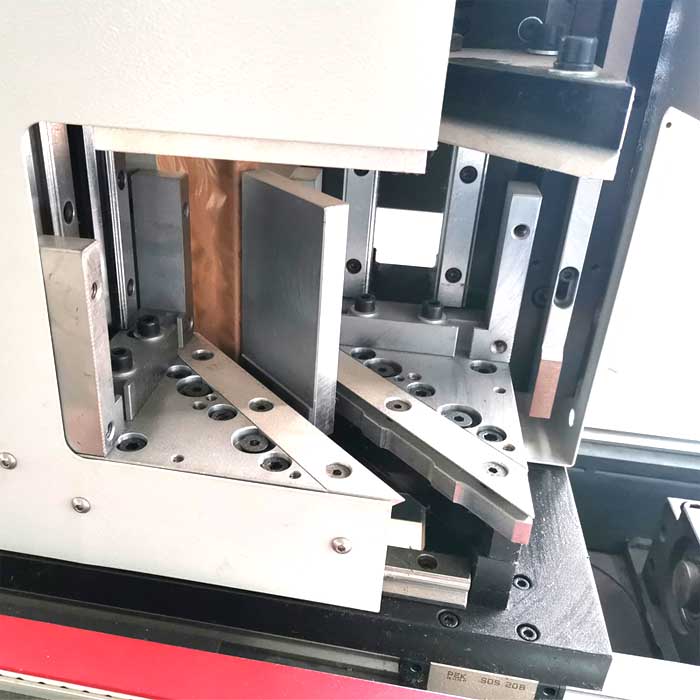

uPVC window CNC four corner welding machine details

PVC window cnc four corner welding machine details

FEATURES

The design of the floating positioning plate ensures the flatness of the fan material and the gap of the welding seam; the motion travel system of this CNC uPVC window four corner welding machine adopts high precision linear guide rail.
Equipped with a color touch screen and Siemens PLC, driving large inertia servo motor, it automatically completes the welding, transmission, and cleaning of the single-sided weld seam of the formed window.
Four corners welding machine is easy to operate and has stable and reliable performance. The frame is made of thick-walled rectangular steel pipe welded, with a solid load-bearing capacity, and is not easy to deform.
It is equipped with an automatic blowing device, which can automatically blow down the residual material after welding angle shearing.

TECHNICAL SPECIFICATIONS

Power supply: 380 V/50 Hz
• Input power: 9.5 Kw
• Air pressure: 0.5~0.8 MPa
• Air consumption: 100 L/min
• Welding width(max): 120 mm
• Welding height: 20~120 mm
• Welding range: 360×430-1800×3000 mm
• Dimensions (Width×Depth×Height): 5200×2200×1600 mm
• Net weight: 2850 Kg
