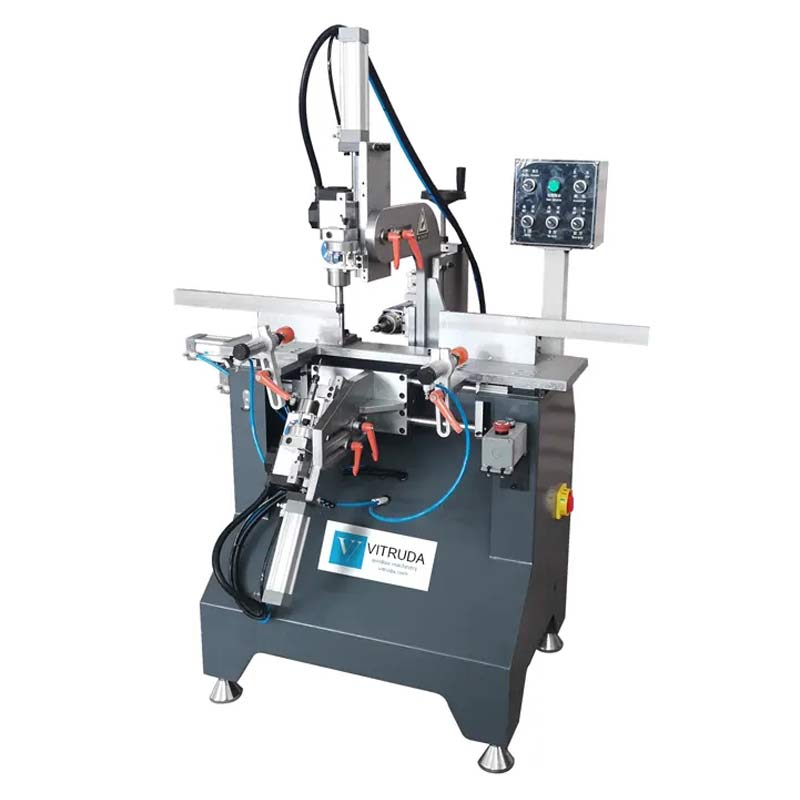

Automatic Three Head Water Slot Milling Machine

PRODUCT DESCRIPTIONS

This automatic three head water slot milling machine is suitable for milling water slots on the uPVC window profile, it has three drilling units, one oblique unit tilt able up to 60 degrees, one horizontal unit, and one vertical unit.

The drilling units are independent and can be used together and separately from each other. It is a critical uPVC window machine for uPVC window water slot milling.

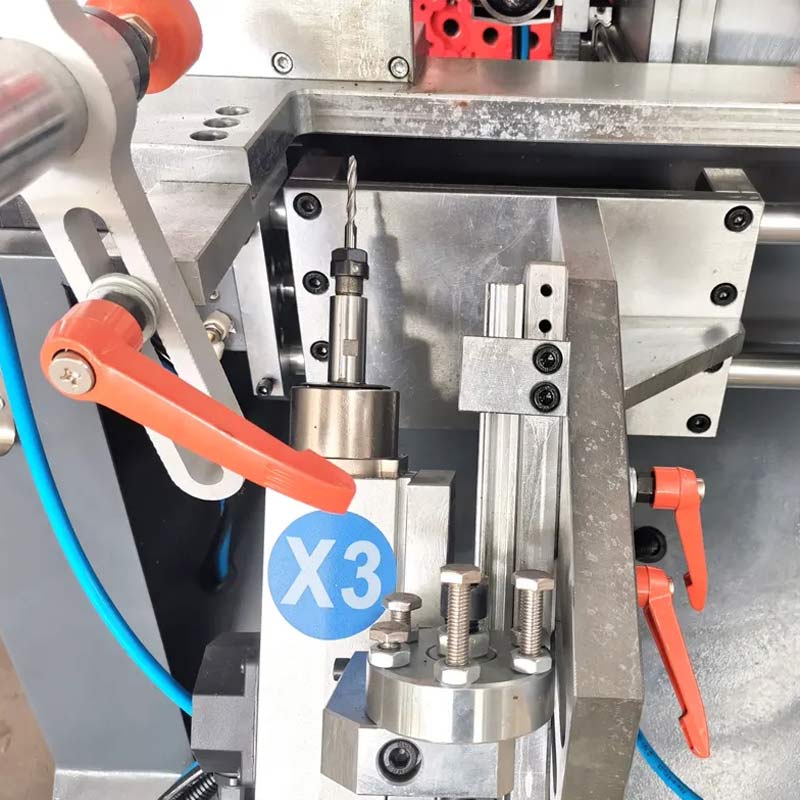

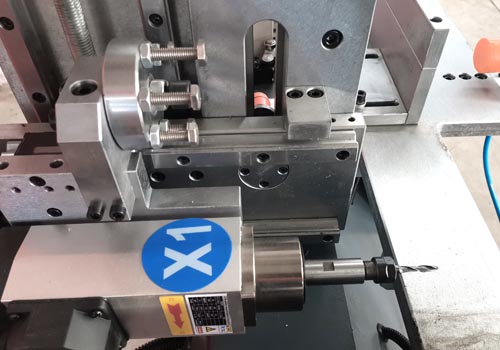

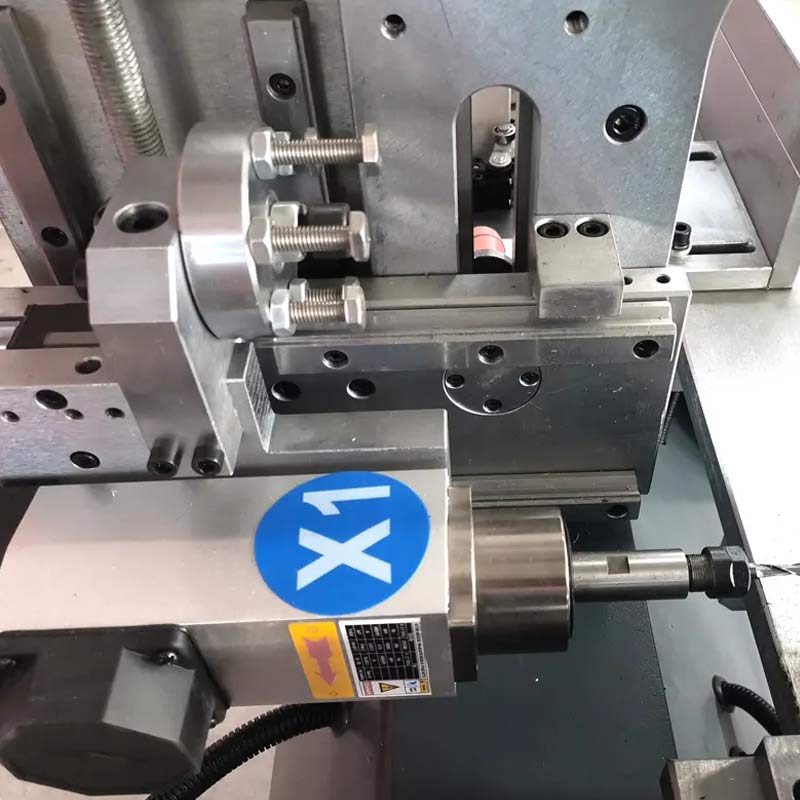

3-axis slot milling machine drilling unit

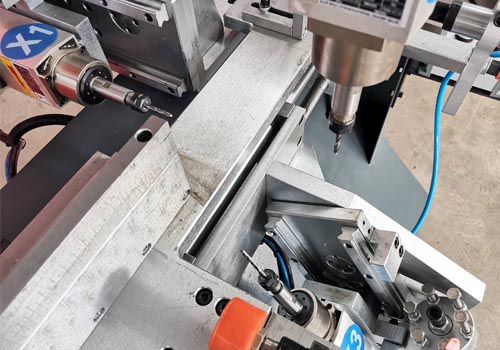

3-axis water slot milling machine details

FEATURES

• The three head water slot milling machine has three slot milling units and can respectively, be used for milling the surface and inside water slots of the uPVC profiles.
• The three slot milling units are independent and can be used together and separately from each other, with adjustable water slot milling speed and drilling depth.
• Horizontal pneumatic clamping.
• High-frequency motors.
• Drilling and milling speed adjustable.
• The machining depth and position of the milling unit can be adjusted.
• The machining depth is controlled by turning the depth dial.
• The moving distance of the worktable can be adjusted, and the length of the slot hole can be processed through the movement of the worktable.
• The angle of the milling units 2 and 3 are adjustable.

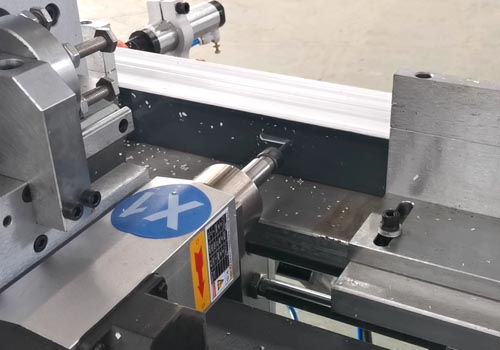

water slot milling machine milling

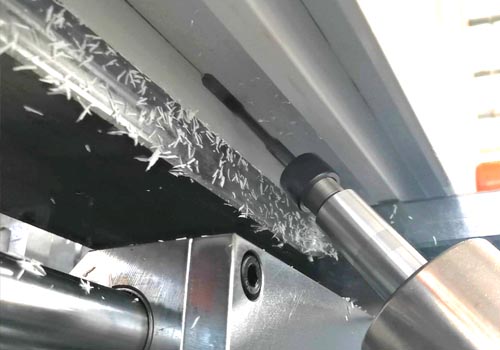

SCX02 Water slot milling machine hole milling

TECHNICAL SPECIFICATIONS

• Power supply: 220 V/50 Hz
• Input power: 1.5 Kw
• Air pressure: 0.5~0.8 MPa
• Air consumption: 20 L/min
• Cutter Diameter: ∮4×50/75 mm ∮5×50/75 mm
• Slot length: 30/60 mm
• Slot Depth(max): 30 mm
• Dimensions (Width×Depth×Height): 1830×750×1600 mm
