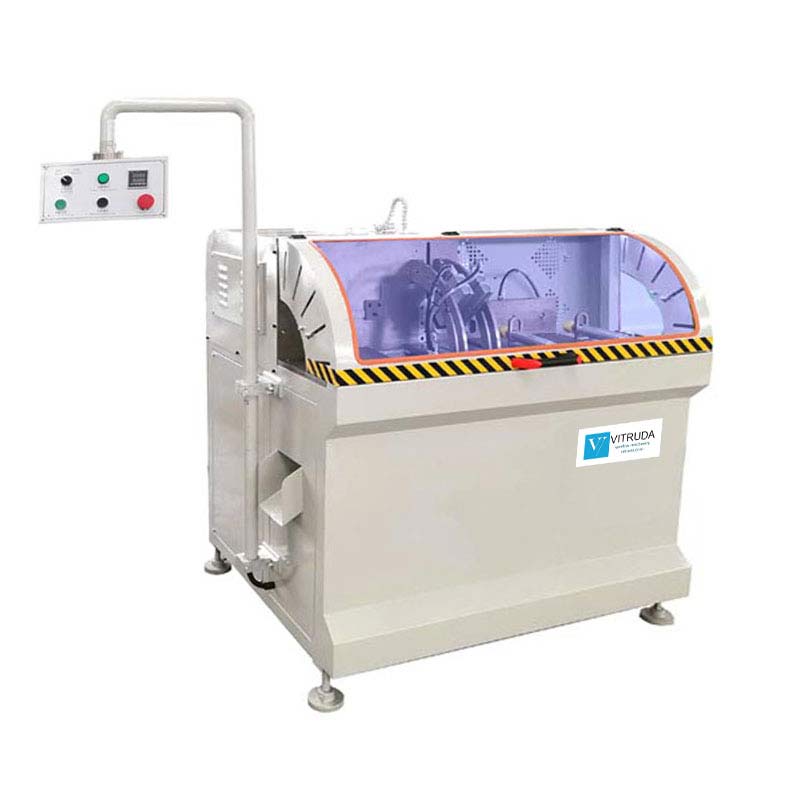

Automatic Corner Key Cutting Machine For Aluminum Profile

DESCRIPTIONS

LJJ 02 automatic corner key cutting machine for aluminum used for cutting aluminum corner key profile into right pieces also used for cutting LED extrusion, aluminium photovoltaic modules, and curtain wall profiles. It consists of a cutting unit, profile feeding system, clamping system, and bed.
Adopts an industry-grade computer system, the user can set the processing parameters according to the aluminum corner key, the cutting size shifts quickly, locating precision is high, and the repeat locating precision is ±0.2 mm (optional: CNC model).
The saw blade rotates smoothly due to the highly accurate main spindle, steady running with high precision.

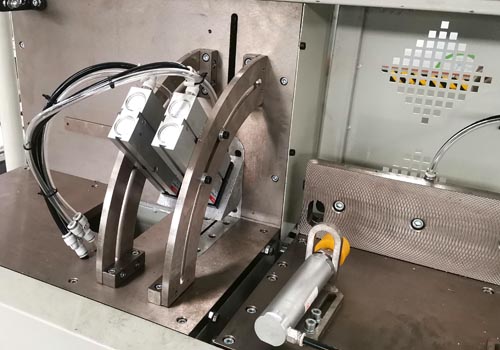

Aluminum corner key cutting machine double-side clamp system

FEATURES

• According to the section of the aluminum corner key, the cutting speed of the aluminum corner key cutting machine can be adjusted by the air-hydraulic cylinder. Cutting degree 90°, and adopted automatic alarm function when without aluminum window corner key or finish cutting.
• The feeding stroke can be adjustable within 3-600 mm.
• 1 cutting saw blade HSS (High-Speed Steel).
• 2 cylinders pneumatic left and right clamping system.
• Auto-feeding system to realize continuous feeding.

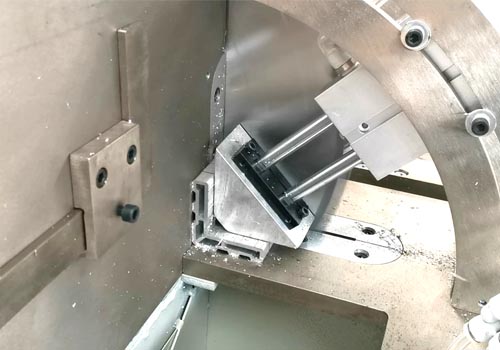

Aluminum Corner Key Cutting

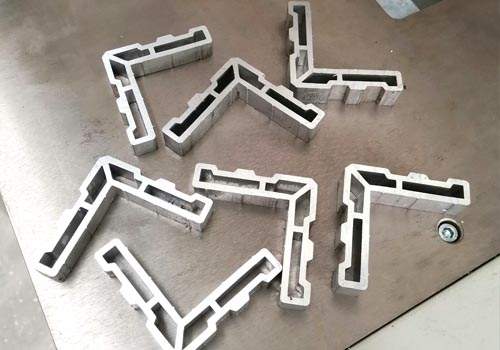

Aluminum corner key cutting effect

SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Input power: 3.0 Kw
• Motor rotary speed:3200 r/min
• Air pressure: 0.5~0.8 MPa
• Air consumption: 20 L/min
• Blade specification: Φ450 mm×φ30 mm×120 T
• Cutter feeding speed: 0~3 m/min
• Cutting length: 5~85 mm
• Cutting width: 120 mm
• Cutting angle: 90°
• Dimensions (Width×Depth×Height):1500×1200×1650 mm
• Net weight: 500 Kg
