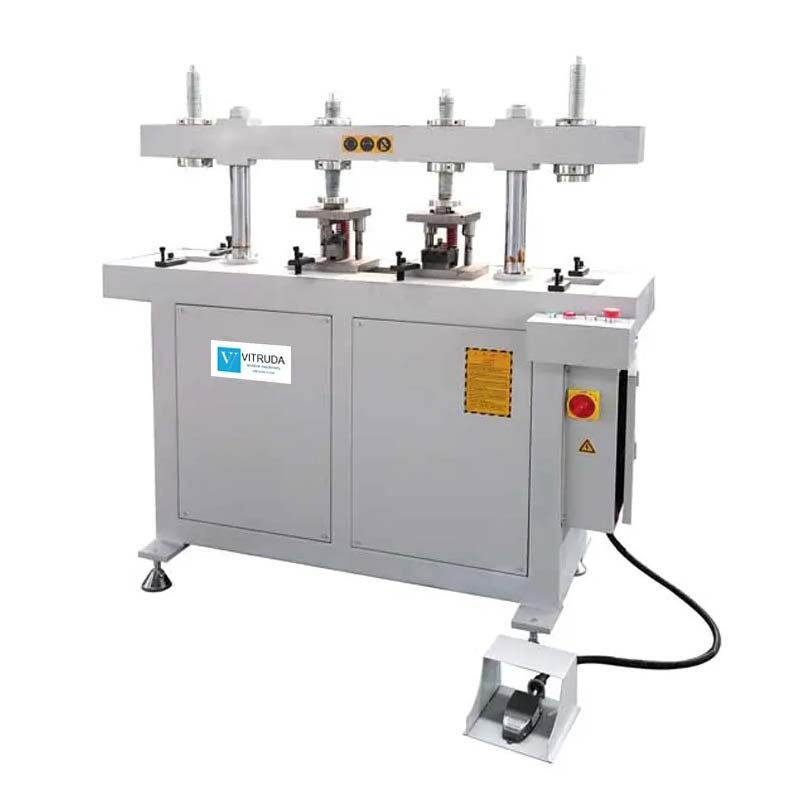

Hydraulic Aluminum Punching Machine

DESCRIPTIONS

The LYJ-75 aluminum punching machine with a hydraulic system is specially used for punching aluminum profiles or other materials. It consists of a workbench, a punching system, a hydraulic station, and a bed， the workbench has 4 punching stations and can be installed with 4 punching dies station as shown below, and the punching system adopts a double-guided structure.
The driving force is supplied by the hydraulic system, the big passion for smooth working.
This machine can punch and cut off, rotate shaft holes, screw adjusting holes, bolt holes, lock holes, lock tongue cover holes and lock core holes, etc.
This LYJ-75 aluminum extrusion punching machine needs to customize the punching dies according to the aluminum profile.

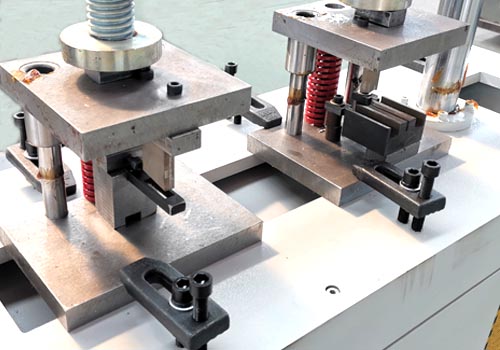

Aluminum punching machine dies

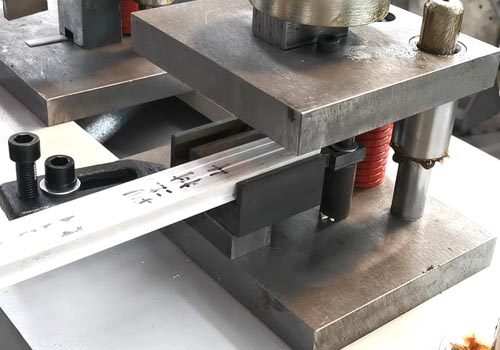

Aluminum punching machine profile punching

FEATURES

• Hydraulic system.
• Double guide column structure.
• Punching dies are replaceable.
• Foot-valve control.

SPECIFICATIONS

• Power supply: 380V/50 Hz
• Input power: 3.0 Kw
• Travel times: 20 c/min
• Rated oil pump pressure: 12 MPa
• The capability of the oil box: 72 L
• Press nominal pressure: 80 KN
• Closure height: 140~250 mm
• Max punching travel: 65 mm
• Dimensions (Width × Depth × Height): 1330×500×1600 mm
• Net weight: 700 Kg
