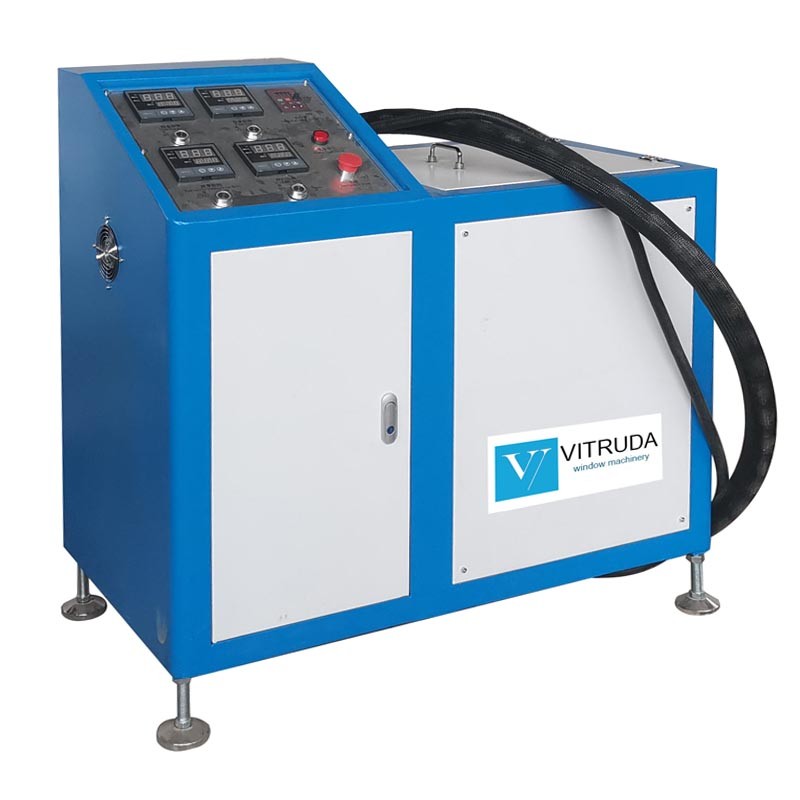

Hotmelt Extruder HGE02

DESCRIPTIONS

The hotmelt extruder insulated glass sealing machine used for hotmelt extruding and insulated glass sealing is special glass equipment for producing hotmelt-type insulated glass.
The hot melt adhesive is heated and melted by the heating system of this hotmelt extruder, then advanced by the pump in the hotmelt extruder, and then evenly coated by the glue gun at the interval of double glass to complete the hollow sealing.
The machine has high production efficiency, good sealing effect, and low cost.
This machine belongs to the economic insulated glass machine, the crucial glass and window machinery for making insulated glass and energy-saving aluminum and PVC windows.
The function of this hotmelt extruder is the same as that of the double-component glass sealing extruder, both are used for sealing double or triple energy-saving glass, but the sealant composition used is different.

Machine FEATURES

• 36kg large capacity hotmelt container, the speed of hotmelt output can reach 1kg/min.
• Standard 3m high temperature and high-pressure Teflon hose, four zones temperature control.
• The machine has a high wear-resistant special alloy gear pump high-quality platinum temperature sensor.
• Stainless steel heater insulated pneumatic anti-heat glue gun.
• This insulated glass sealing machine has leakage protection, high safety variable, and frequency speed control.

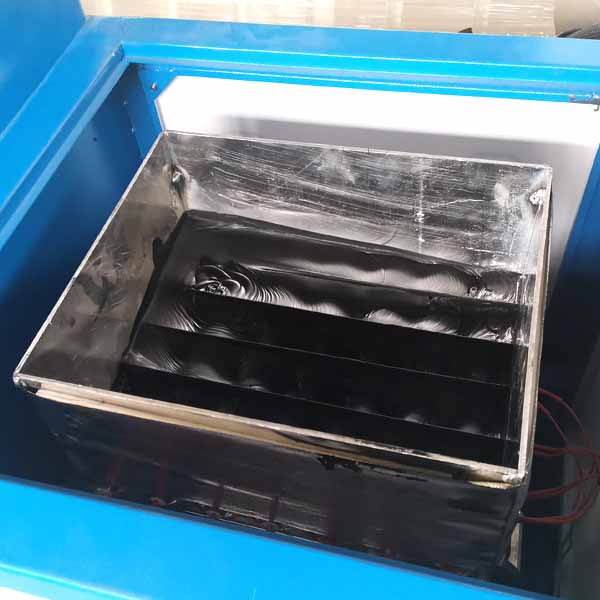

Hotmelt extruder heating box

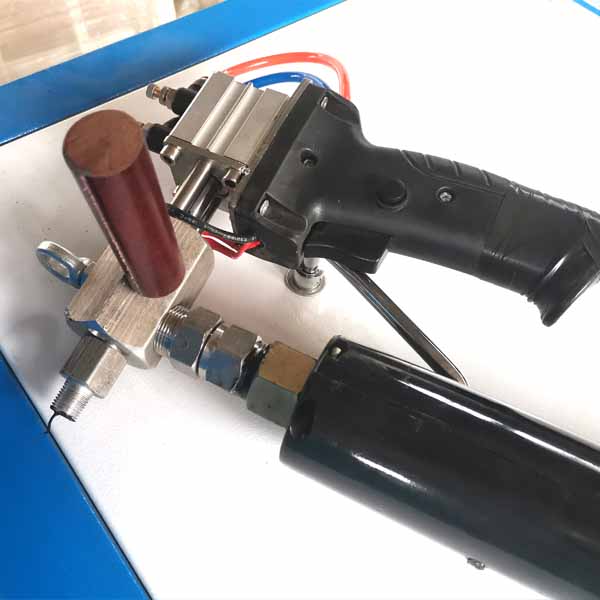

Hotmelt extruder  glue gun

TECHNICAL SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Input power: 5.5 Kw
• Dimensions (Width × Depth × Height): 1200×700×1100 mm
• Net weight: 400 Kg
