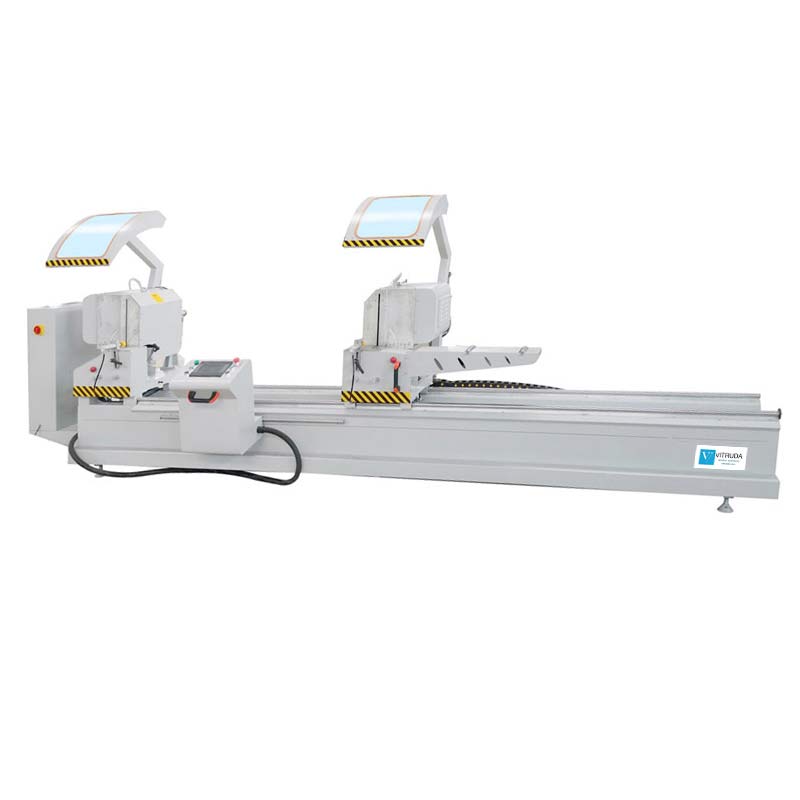

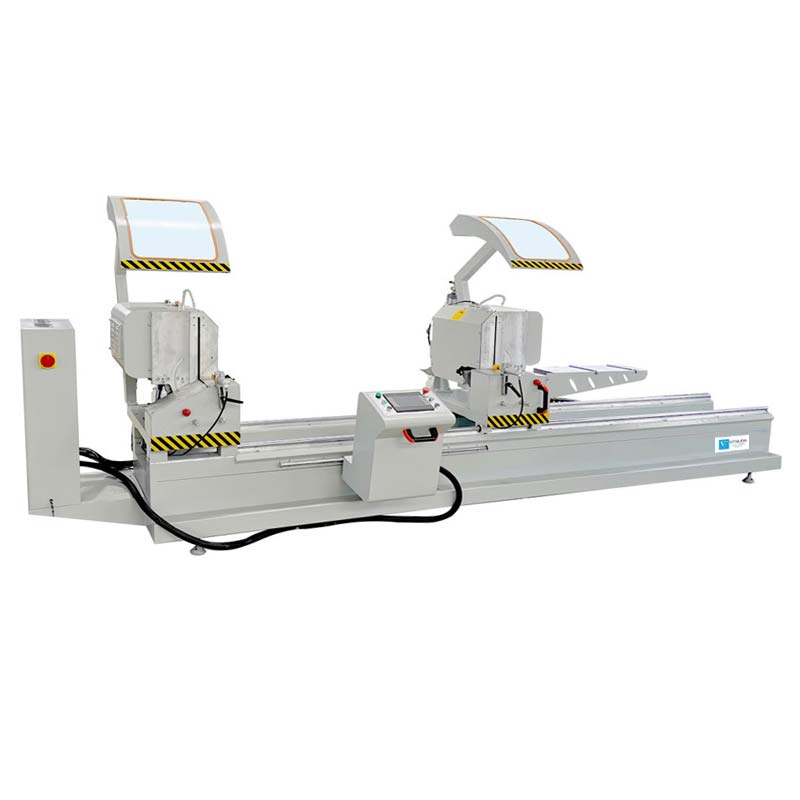

CNC Double Head Cutting Machine for Aluminium Profiles
PRODUCT
DESCRIPTIONS
1. This CNC double head cutting machine for aluminum profiles SSJ06A is mainly used for cutting aluminum window profiles. CNC control systems, reasonable design, and high-quality components ensure the high quality and high efficiency, is the ideal aluminium cutting machines for making aluminum doors and windows. This double head cutting machine allows you to make uPVC & aluminum windows and doors easily and efficiently.
2. The aluminum CNC double head cutting machine feeding system adopts linear guide pair, with high-accuracy and stability.
3. Adopts CNC control system, automatic positioning of cutting size and angle, easy operation and precise cutting.
4. Cutting length and angle are entered from LCD-display on the control screen.
5. Automatic head position for 45° and 90 °degrees, easy adjustment for intermediate angles.
6. Saw blade rotates smoothly due to high accuracy spindle.

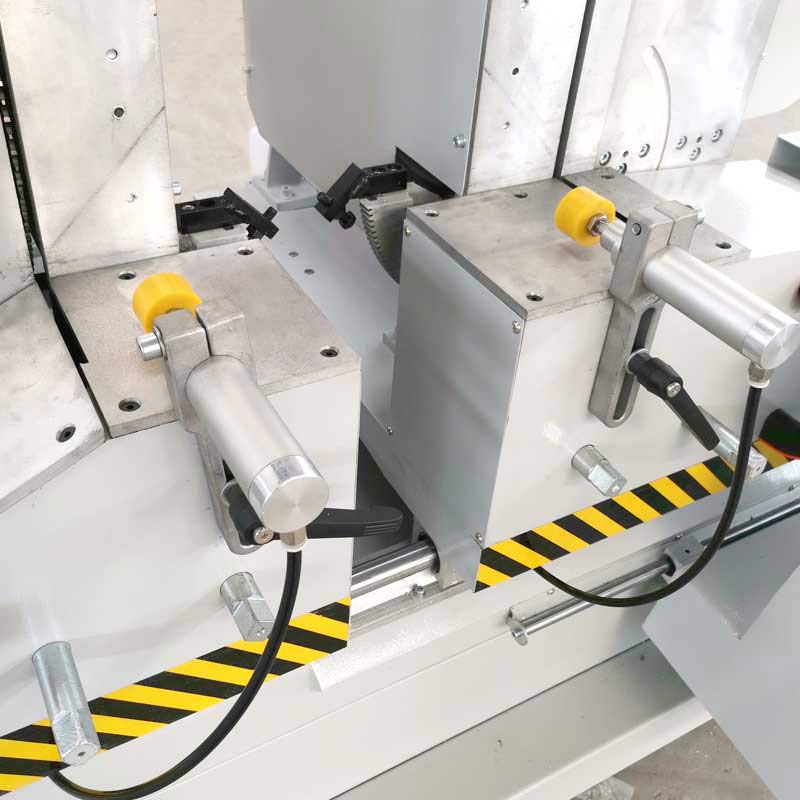

7. Middle auto-induction profile supporter and following profile supporter make the loading and clamping convenient.
8. Two heads can work together or single, when together work, this CNC double head cutting machine for aluminum can cut off the required length and angle profile in one operation.

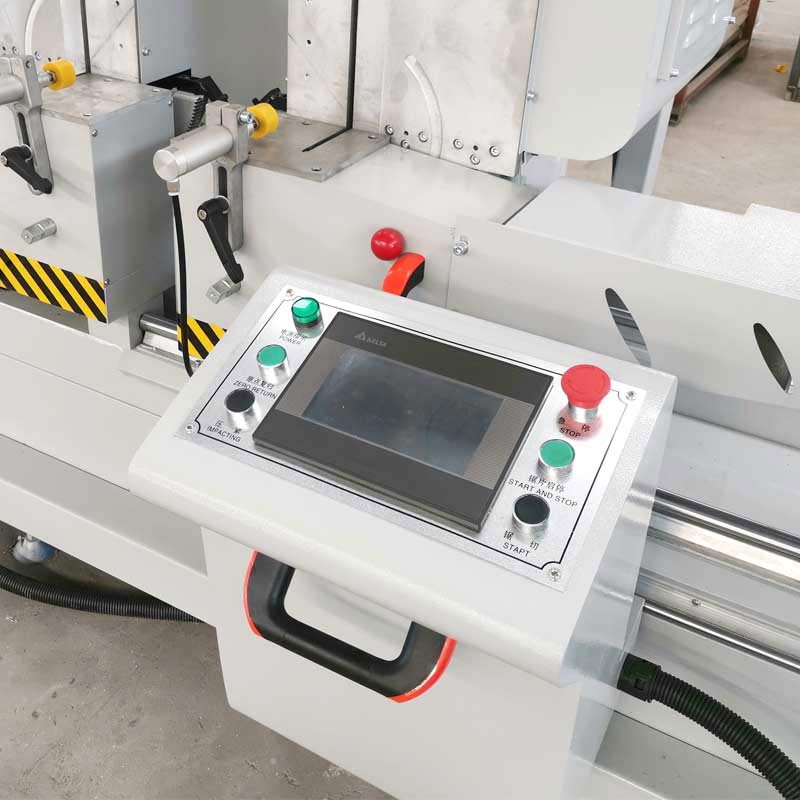

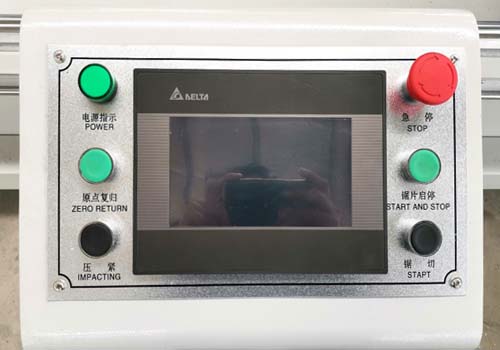

CNC double head cutting machine for aluminum tuchscreen

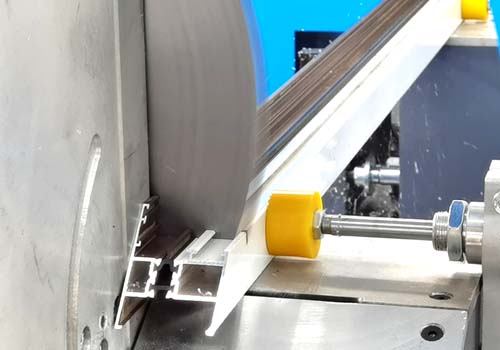

CNC double head cutting machine for aluminum 90 degree cutting

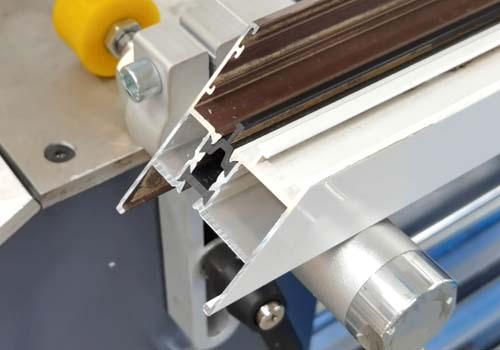

CNC double head cutting machine for aluminum 45 degree cutting
TECHNICAL
SPECIFICATIONS
Power supply: 380 V/50 Hz
Input power: 2x1.5 Kw
Motor rotary speed: 2800 r/min
Air pressure: 0.5~0.8 MPa
Air consumption: 80 L/min
Diameter of blade: ∮450 mm×∮30 mm
Cutting height: 45°max×200mm,90°max×300 mm
Cutting width: 120 mm
Cutting angle: 45°、90°
Feeding speed: 0~3 m/min
Cutting length: 420~3700 mm
Dimensions (Width × Depth × Height):5100×1300×1900 mm
Net weight: 850 Kg
