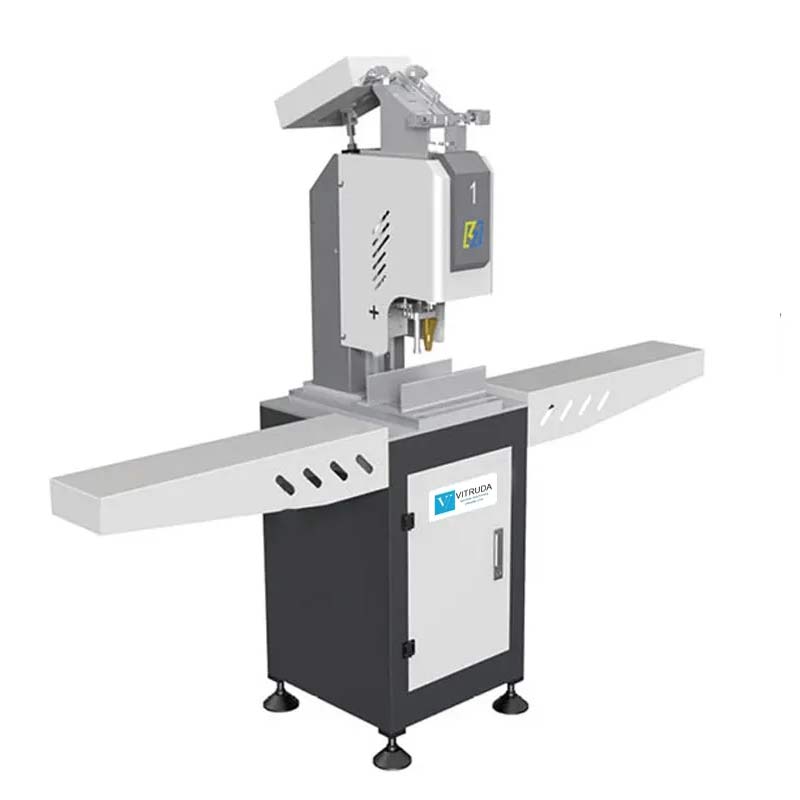

LDJ1-130 Single Head PVC Screw Machine

PRODUCT DESCRIPTIONS

LDJ1-130 Single head PVC screw machine is suitable for automatically screwing the steel reinforcement bar in the PVC profile.
It is composed of a screw feeding system, screw storage box, automatic fastening system, worktable, PVC profile clamping system, and profile support system on both sides. The screw fastening unit simplifies and makes more efficient the screwing process.
The screw drilling depth and the position of the screw units are adjustable according to the spacing of the drilled screws. Using PLC control, the machine automatically completes the conveying screw, profile clamping, screw drilling, and fastening, which is convenient and efficient for manufacturing PVC windows and doors.
The screwdriver bit of this screw fastening machine is easy to replace.

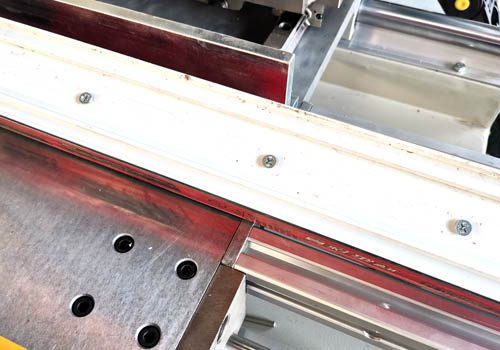

Single head PVC screw machine screw  fastening

FEATURES

• The single head PVC screw machine unit is adjustable according to the width of the PVC profile.
• This PVC window machinery is equipped with an automated screw input and screw-put sorting devices,
• The machine feeds the screws into the screw-driving unit and completes the screw-fastening process automatically.
• Operator-friendly due to the release of the screwing cycle via the run button or foot switch.
• Feed unit with automatic depth switch-off.
• Automatic screw feed into screw driving unit.
• Automatic screwing process.
• 2, 3, or 4 screwing units for long profiles are optional.
• Compact due to integrated pneumatic control.
• Left and right profile holder arms.

TECHNICAL SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Input power: 0.3 Kw
• Air pressure: 0.5~0.8 MPa
• Air consumption: 20 L/min
• Height of profile: 30~130 mm
• Max thickness of steel: 2 mm
• Screw specification (cross head): Φ3~5 mm/13~19 mm
• Movable distance: 20~70 mm
• Dimensions:(Width×Depth×Height): 2100×550×1750 mm
• Weight when empty: 320 Kg
