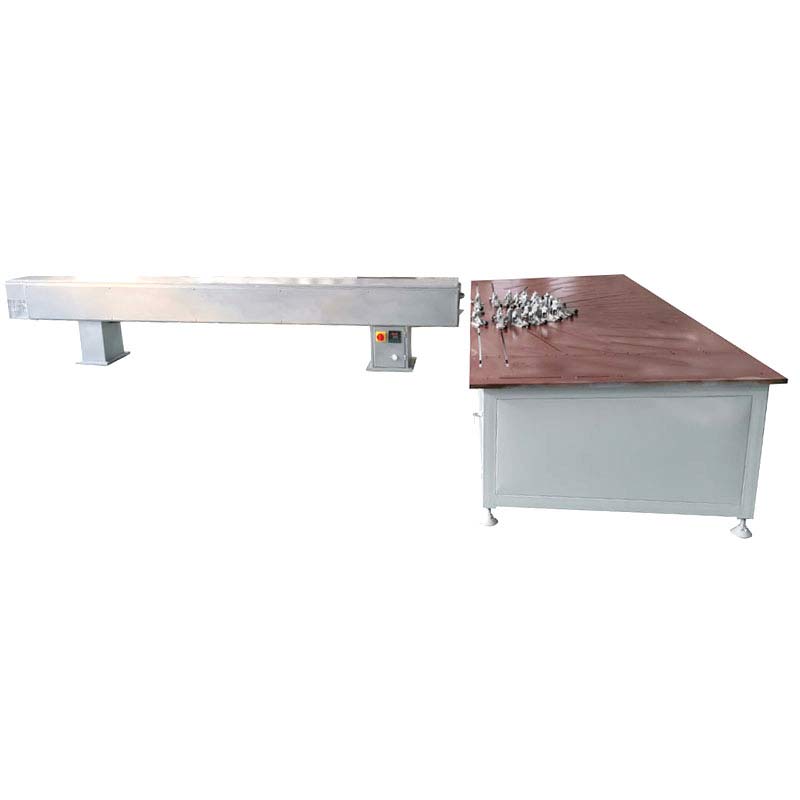

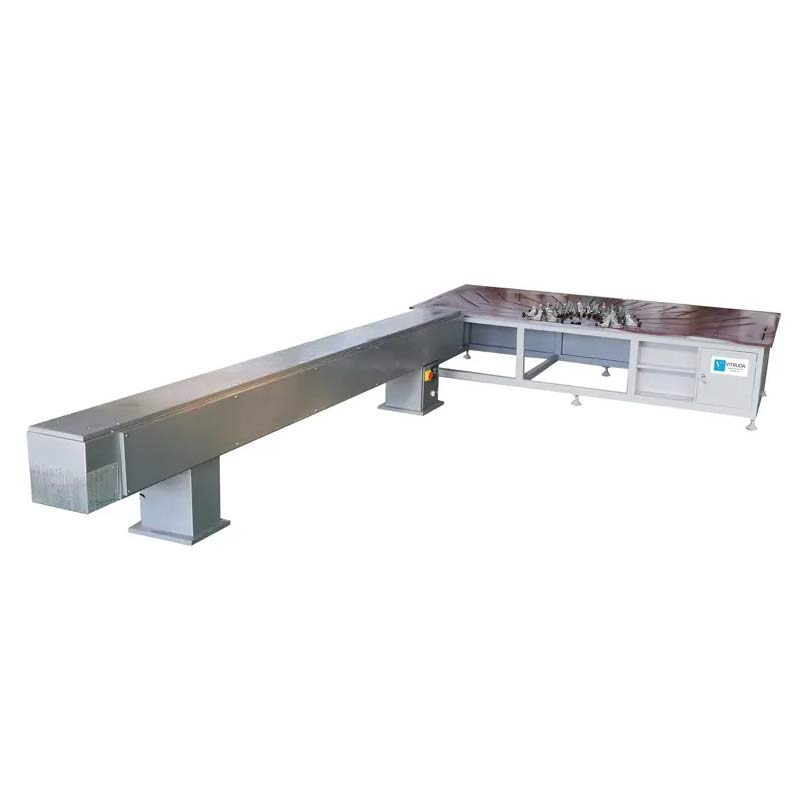

PVC Profile Bending Machine SYH1800

Product Item : SYH1800
Category： uPVC Bending Machines
Color: gray/white
Origin： China
Application: Designed for PVC profile bending
INQUIRY EMAIL

PVC Profile Bending Machine SYH1800

PRODUCT DESCRIPTIONS

1. This PVC profile bending machine is suitable for bending uPVC window and door profiles, it is a professional PVC window machine for you to make PVC arc and other special-shaped PVC windows and doors.
2. This PVC bending machine is equipped with an electrical heating box, using the electric heating system to heat the PVC profiles, which is cleaner, faster, and more efficient than the oil heating system of the PVC profile bending machine.
3. The bending diameter of the PVC profile is adjustable within 700~1800 mm.
4. Use a professionally fixed slider, the slider slides in the chute of the bending machine worktable to adjust different diameter requirements.
5. Only Power is needed, no compressed air is needed.
6. This PVC profile bending machine needs to customize the profile belt according to the profile.

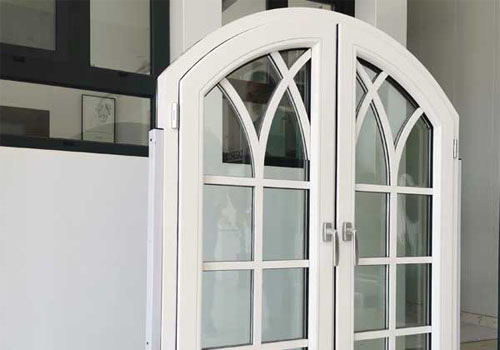

PVC arc window

PVC arc window

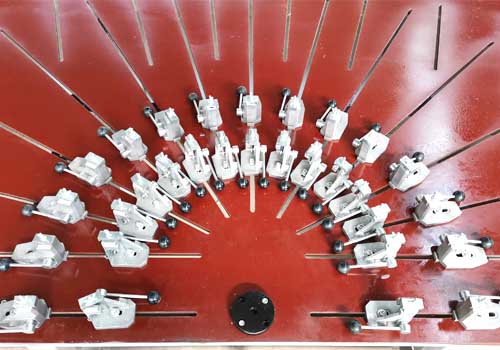

PVC profile bending machine worktable details

PVC profile bending machine worktable details

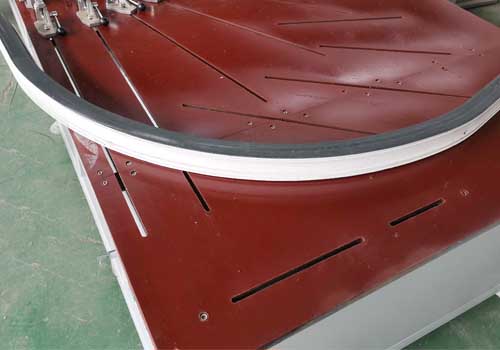

PVC profile bending machine arc bending

PVC profile bending machine arc bending

TECHNICAL SPECIFICATIONS

• Power supply: 220 V/50 Hz
• Input power: 12 Kw
• Bending Round Diameter Range: 700~1800 mm
• Heating Temperature: 90~130°
• Electrical heating unit size: 3500×300×650 mm
• Worktable size: 2850×1250×800 mm
• Net weight: 400 Kg
