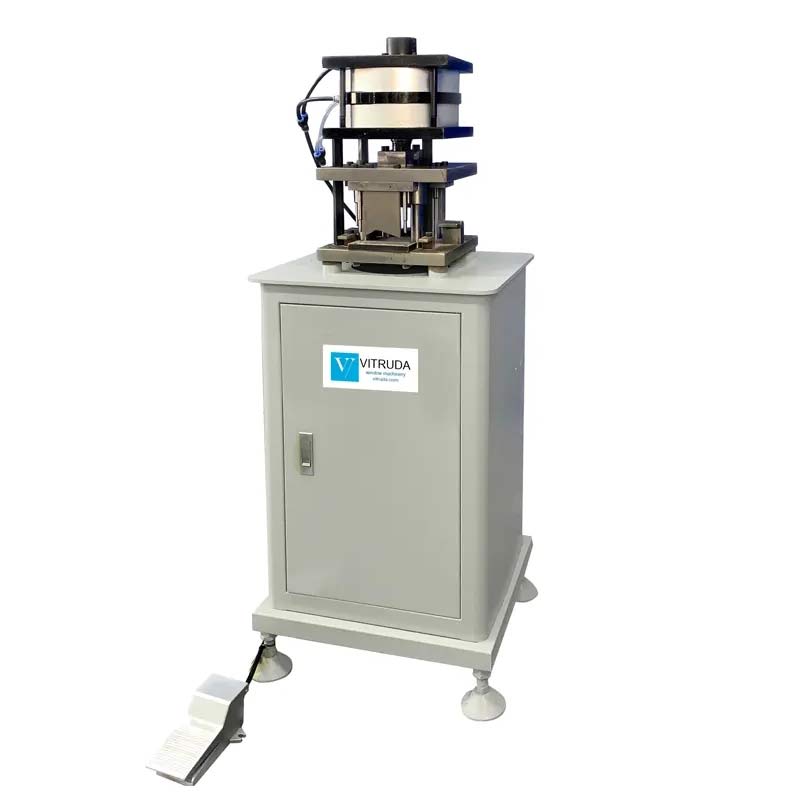

LY-30 Aluminum Profile Punching Machine with Pneumatic System

PRODUCT DESCRIPTIONS

This pneumatic aluminum profile punching machine LY-30 is suitable for punching multiple types of holes, such as aluminum slide window opening channels, screw holes and drive rod holes, etc.

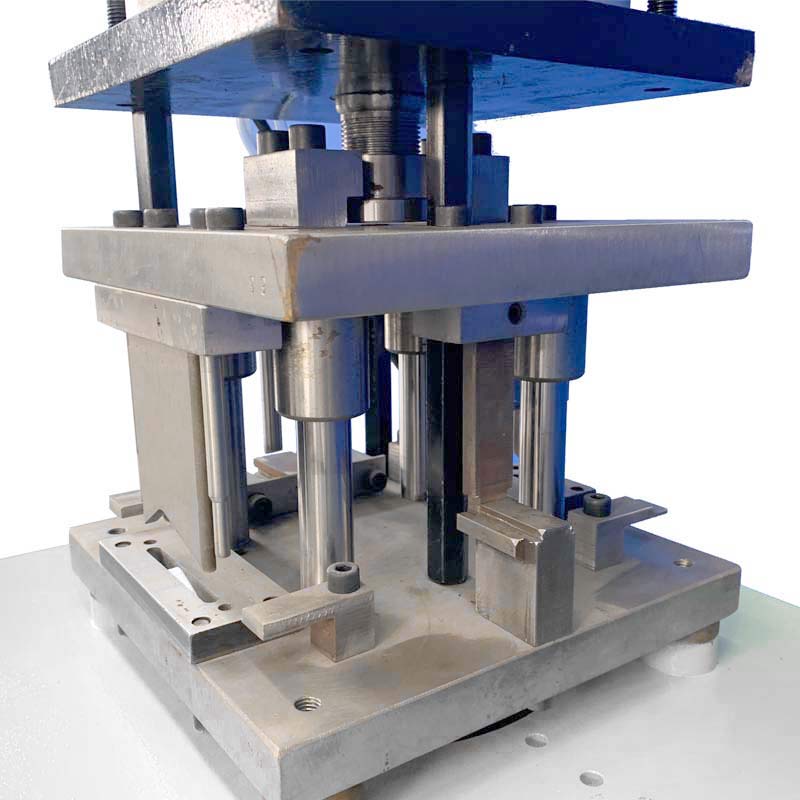

It consists of a working table, a pneumatic punching system, and a bed, and the punching die is designed with 4 stamping stations, which can be customized according to customer requirements. the machine has small in size, easy to move, and simple operation. It is an important window machine for manufacturing aluminum & uPVC windows and doors.
This LY-30 aluminum punching machine uses compressed air as power and control, 5 working positions, and can be used to punch the installation groove, corner-cutting, and punch the end of the transmission rod (6 mm, 8 mm).
It can also be used to punch the water slot of the aluminum sliding windows and doors.

aluminum profile punching machine profile punching

FEATURES

• This LY-30 pneumatic aluminum profile punching machine must customize the punching dies according to the aluminum & PVC window profile.
• This punching machine has high production efficiency and a highly qualified rate of processed aluminum window products.
• Pneumatic system.
• Five punching stations are available.
• Five sets of punching die are available.
• Punching dies are replaceable.
• Foot-valve control.

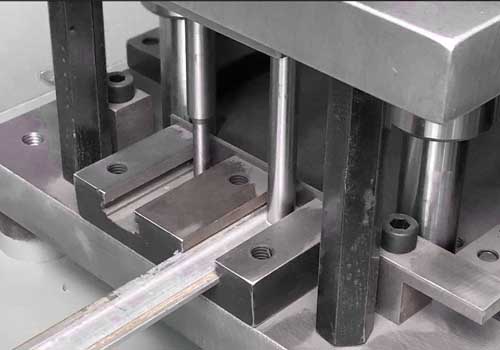

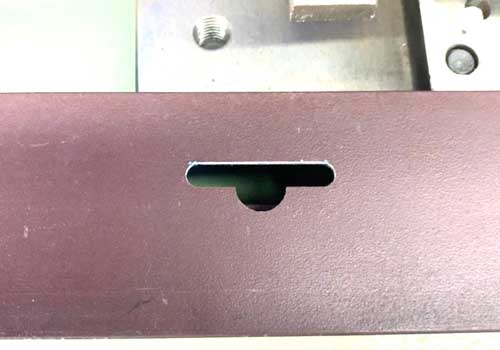

Aluminum profile punching machine lock hole punching

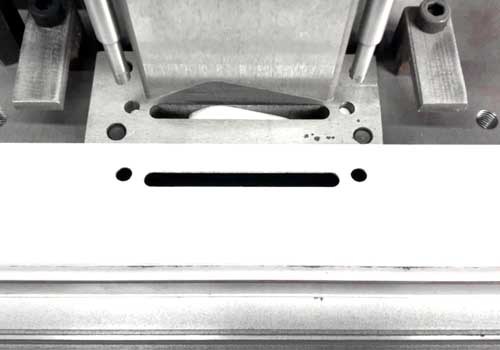

Aluminum profile punching machine hole punching effect

TECHNICAL SPECIFICATIONS

• Working air pressure: 0.6~0.8 Mpa
• Press nominal pressure: 30 KN
• Punching stroke: 30 mm
• Die size: 340×240×500 mm
• Qty. of the station: 5
• Dimensions (Width × Depth × Height): 450×450×1600 mm
• Net weight: 200 Kg
