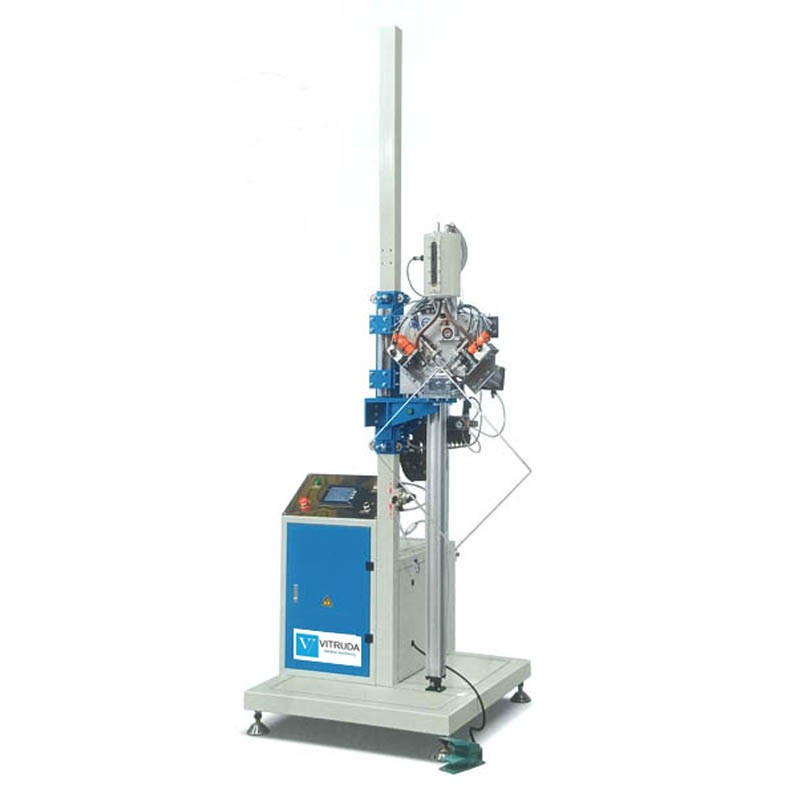

Automatic Desiccant Filling Machine

DESCRIPTIONS

This automatic desiccant filling machine is used for aluminum spacer drilling, desiccant filling, and hole sealing.
Adopts PLC and touch screen control system, easy to operate.
The left and right filling times of the aluminum spacer filling machine can be set according to the spacer length size, automatic punching, desiccant filling, and hole sealing.
The height of the working unit can be adjusted, which is necessary glass equipment for manufacturing insulating glass and energy-saving aluminum & PVC windows.

FEATURES

• This automatic desiccant filling machine can automatically fill bending and forming aluminum spacer or commonly inserted corner aluminum spacer.
• The filling height can be adjusted according to the size of the aluminum spacer.
• Professional desiccant feeding device.
• Voltage overload protection system.

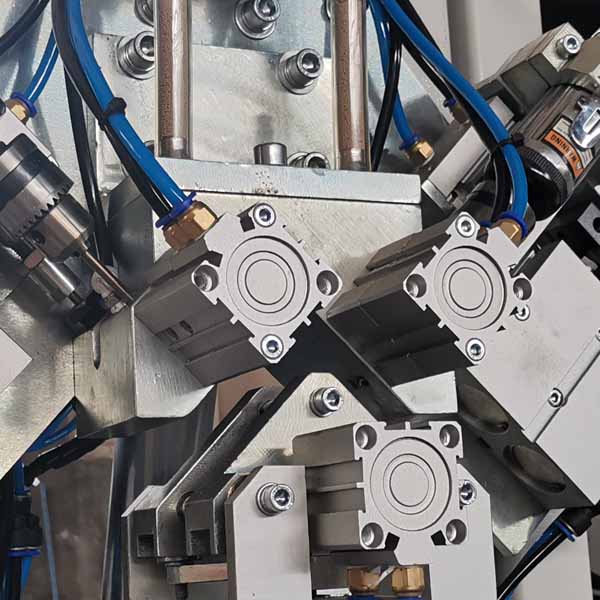

Automatic desiccant filling machine working unit

TECHNICAL SPECIFICATIONS

• Power supply: 220 V/50 Hz
• Input power: 1.0 Kw
• Work pressure: 0.5 ~ 0.8 MPa
• Max size of aluminum frame: 2500 х 2500 mm
• Min size of aluminum frame: 250 х 300 mm
• Flow control: 24 g/s
• Dimension :1380х 1200 х 3600 mm
• Net weight: 400 kg
