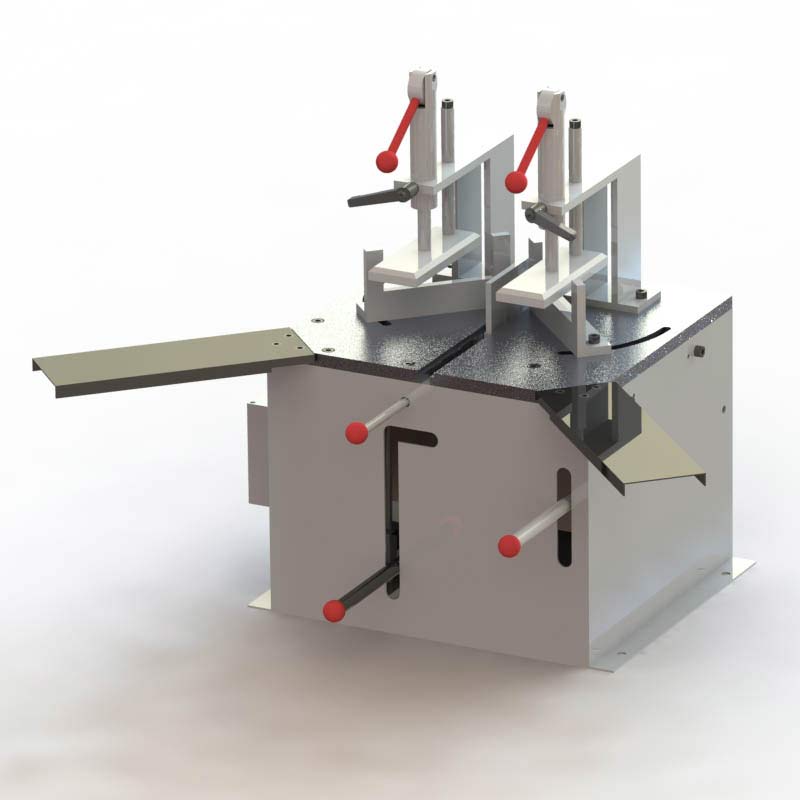

Portable PVC Window Welding Machine

PRODUCT DESCRIPTIONS

1.Semi-automatic Portable PVC window welding machine, portable PVC making machine for small workshop used for PVC window single corner welding.

2. This upvc portable welding machine adopts a semi-automatic structure design, and the melting and welding of the PVC profiles adopts spring and linear bearing structure to feeding and does not need to be tightened by hand. Work long hours without fatigue.

3. The fixed workbench and the movable workbench are designed with grooves, and the profile placement adopts a positioning structure to ensure the accuracy of the melting volume and welding volume of the profile.

4. This portable PVC window manufacturing machine does not require an air source, which reduces the investment cost of making PVC windows and doors.

5. The portable PVC welder feeding pressure can be adjusted according to different PVC window profiles.

6. The PVC profile positioning backing plate can be adjusted, and the welding angle ranges from 30 to 180 degrees.

7. The PVC profile clamping plate can be adjusted in height, which is suitable for welding profiles of different heights.

8. This portable UPVC welder and portable cutting saw portable PVC window corner cleaning tool, portable internal corner cleaning tool, portable external corner cleaning tool, portable water slot milling tool can be used together to make PVC windows. It is the smallest investment for your factory to make PVC windows to make more money.

TECHNICAL SPECIFICATIONS

Power supply: 220 V/50 Hz or customer specification
Input power: 1.2 Kw
Dimensions:(Width×Depth×Height): 400×450×600 mm
Welding width(max): 120 mm
Welding height: 20~120 mm
Weight: 80 Kg
