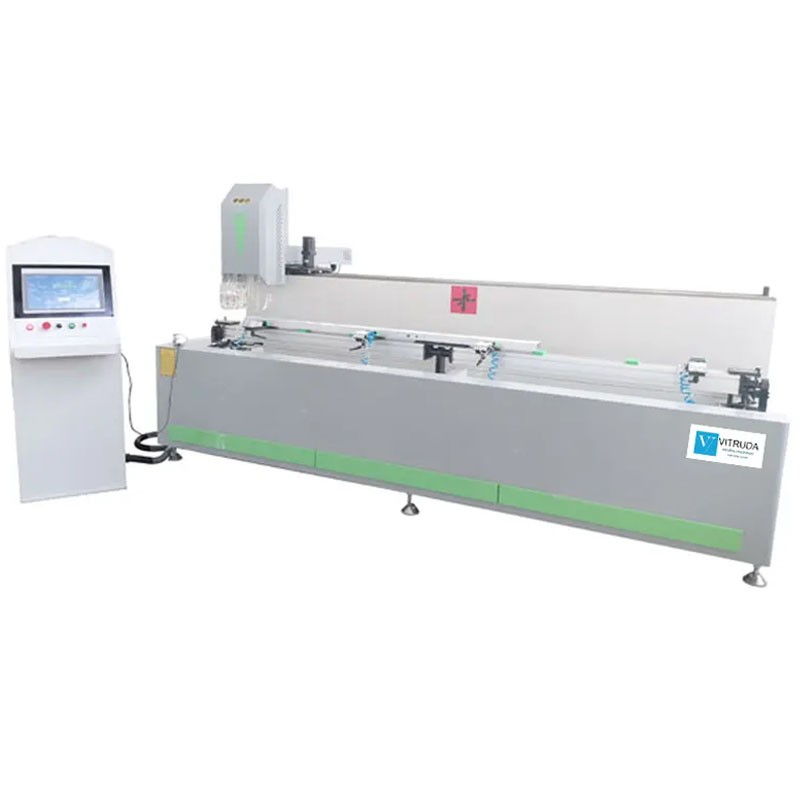

CNC Aluminum Profile Machining Center

DESCRIPTIONS

This GZD03 3-axis CNC aluminum profile machining center is suitable for machining various installation holes, door lock holes, hardware holes, and other grooves aluminum profiles. Its movable head adopts two drill units, each unit uses a different size drill. This aluminum CNC machine is more efficient than an aluminum copy router in making aluminum windows and doors.
The drilling unit feeding system adopts a linear guide motion pair, ball screw, rack, pinion, etc., and can move in three directions of X, Y, and Z, driven by servo motor and ball screw which has high positioning accuracy and good stability.
The machine can process aluminum window profiles, non-ferrous metals, track structures, PVC window profiles, etc., automatic complete multi-hole machining process in one clamping, accurate milling positions of the lock holes, and high-speed machining.
The workbench can be turned at -90 degrees, 0 degrees, and 90 degrees to meet the processing requirements of multiple sides of aluminum profiles.
Hole processing information, such as size, machining position, hole shapes, depth, drilling, and milling speed, etc. can be set on the touch screen.

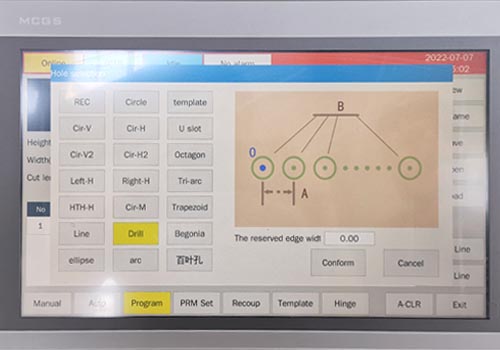

CNC aluminum profile machining center touchscreen

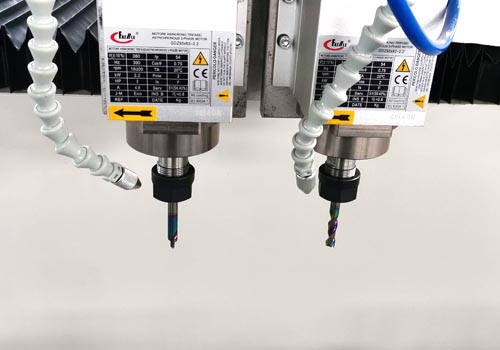

CNC aluminum profile machining center double drills

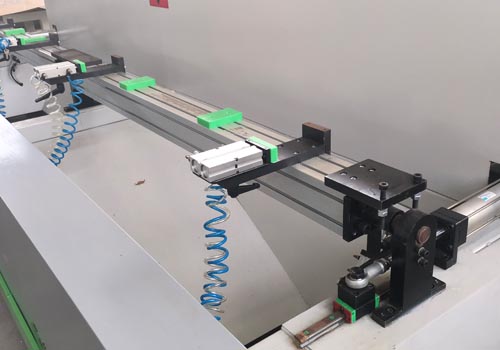

CNC aluminum profile machining center worktable

FEATURES

• This GZD03 three-axis CNC aluminum profile machining center has two high-speed spindle motors and can install different diameter drills.
• According to the machining requirements, the machine can select one spindle motor only or two spindle motors together during programming.
• The aluminum profile machining center can process different types of holes and avoid drill change.
• The profile clamping system can be adjusted according to the different specifications of aluminum profiles and the position of the machining holes.
• Calling the prepared hole machining program can automatically complete the machining of all holes in three directions of the aluminum profiles.
• Big touch screen operation.
• -90°,0°90° three directions machining automatically.
• 6,8,12 mm drill bit clamping device available.

SPECIFICATIONS

• Power supply: 380V/50 Hz
• Input power: 8 Kw
• Air pressure: 0.5~0.8 MPa
• Air consumption: 20 L/min
• Milling range: 3100×400×200 mm
• X-axes travel: 3100 mm
• X-speed: 0~60 m/min
• Y-axes travel: 400 mm
• Y-speed: 0~30 m/min
• Z-axes travel: 200 mm
• Z-speed: 0~30 m/min
• Spindle speed: 0-18000 r/min
• Spindle power: 3.5 KW

• Milling cutter diameter: 5/8 mm

• Weight when empty: 1300 Kg
