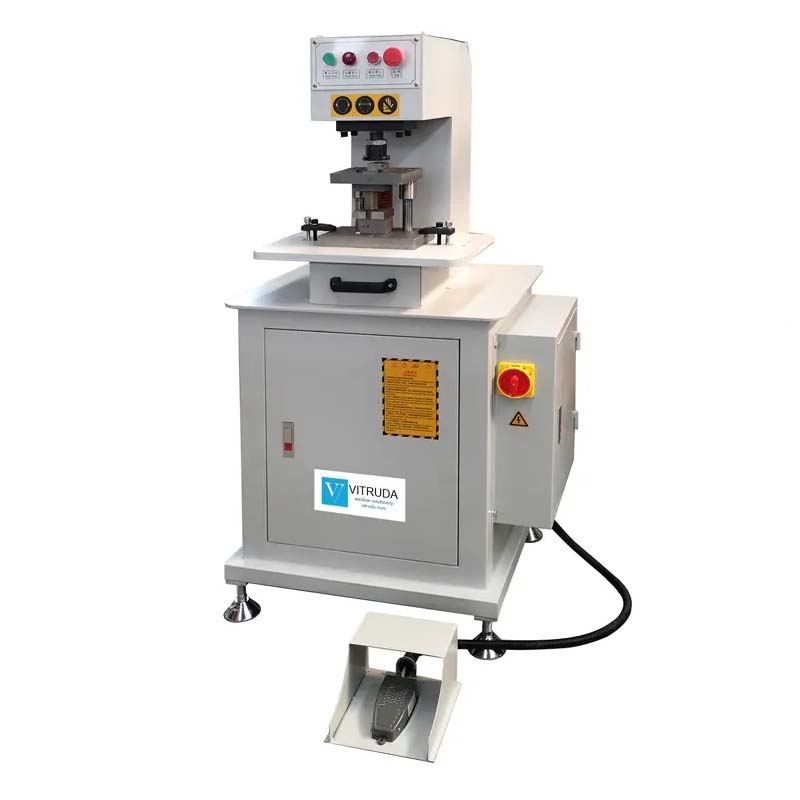

GYJ01 PVC Punching Machine

PRODUCT DESCRIPTIONS

1.PVC punching machine is used for shearing U shape steel reinforcement of the PVC doors and windows. When welding the mullion profile of the PVC window, it is necessary to punch the U-shaped notch of the teel reinforcement at the mullion position, as shown below.

2.The machine is powered by hydraulic system , with large shearing pressure, running reliable and stable, and has high production efficiency.

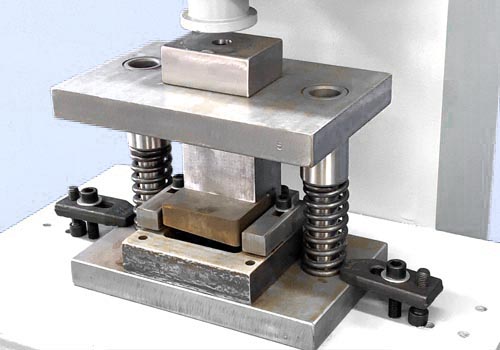

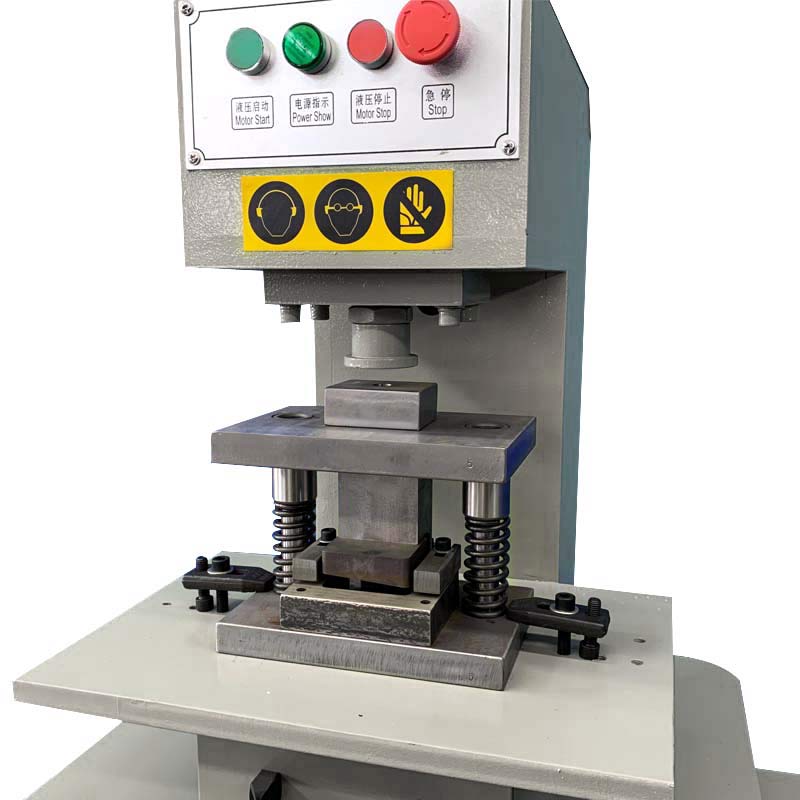

PVC punching machine die

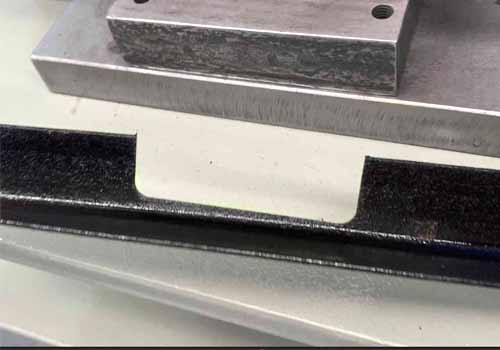

PVC punching machine steel reinforcement U shap punching effect

TECHNICAL SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Input power: 1.5 Kw
• Motor rotary speed: 1440 r/min
• Rated oil pump pressure: 15 MPa
• Capability of oil box: 20 L
• Press nominal pressure: 50 KN
• punching stroke: 5~30 mm
• Max steel shearing thickness: 2 mm
• Die size: 250×250×215 mm
• Dimensions (Width×Depth×Height): 700×950×1450 mm
• Net weight: 200 Kg
