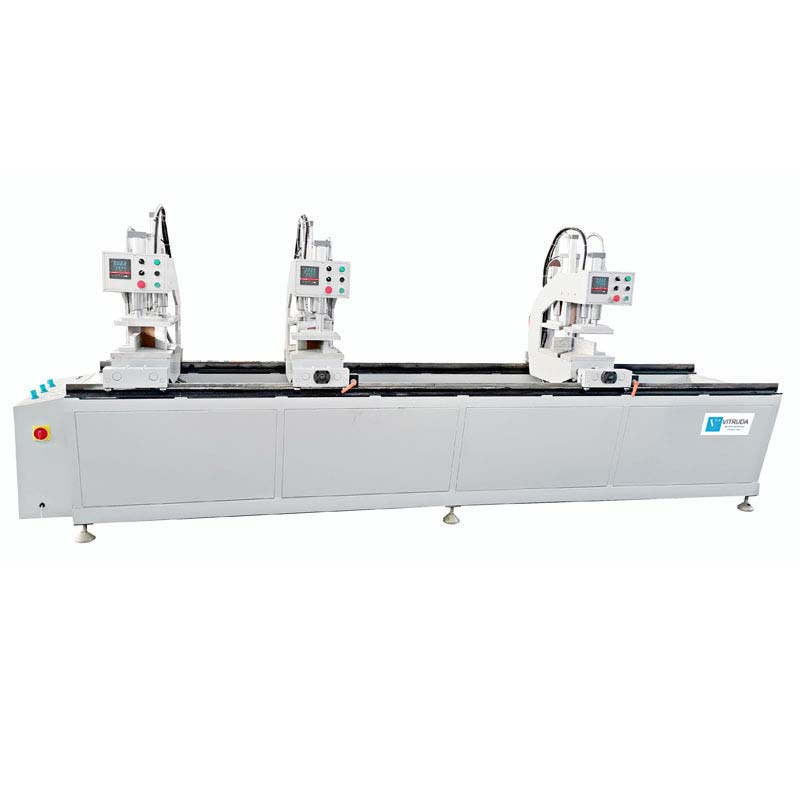

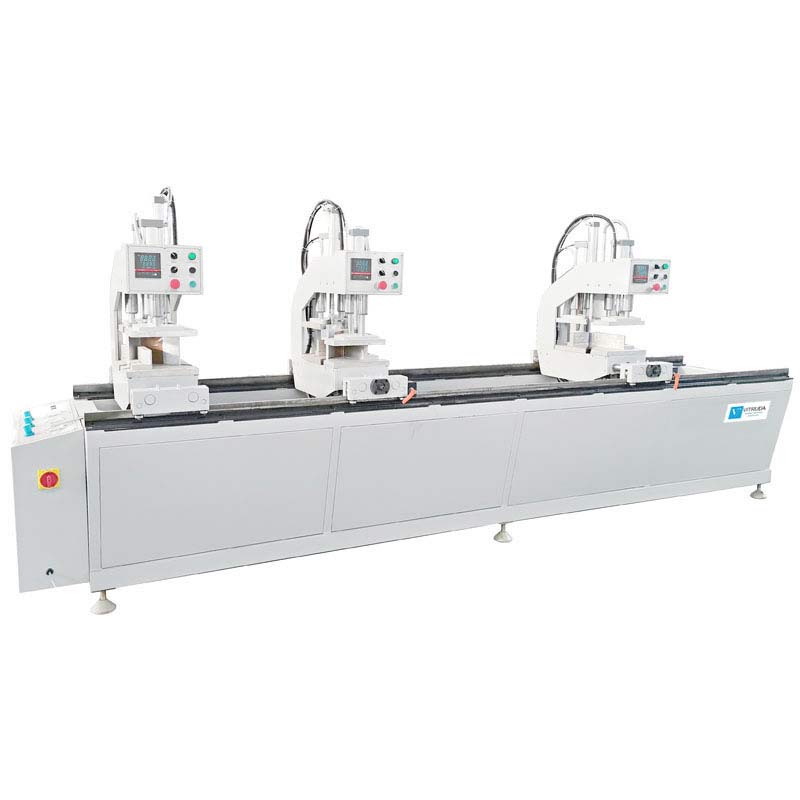

Three Head PVC Welding Machine

PRODUCT DESCRIPTIONS

1. This three head PVC welding machineis designed for welding uPVC casement and sliding doors and windows. The three heads can work independently or at the same time. It can be used for welding windows with 90 degree angles and mullion profile welding, and can also be used at any angle Welding.

2. Using programmable controller (PLC), after setting the welding parameters, the welding process is automatically completed to ensure that the three head PVC welding machine runs more stable and reliable.

3. Adopting the secondary pressure function to ensure the precise welding dimensions and angular strength of doors and windows.

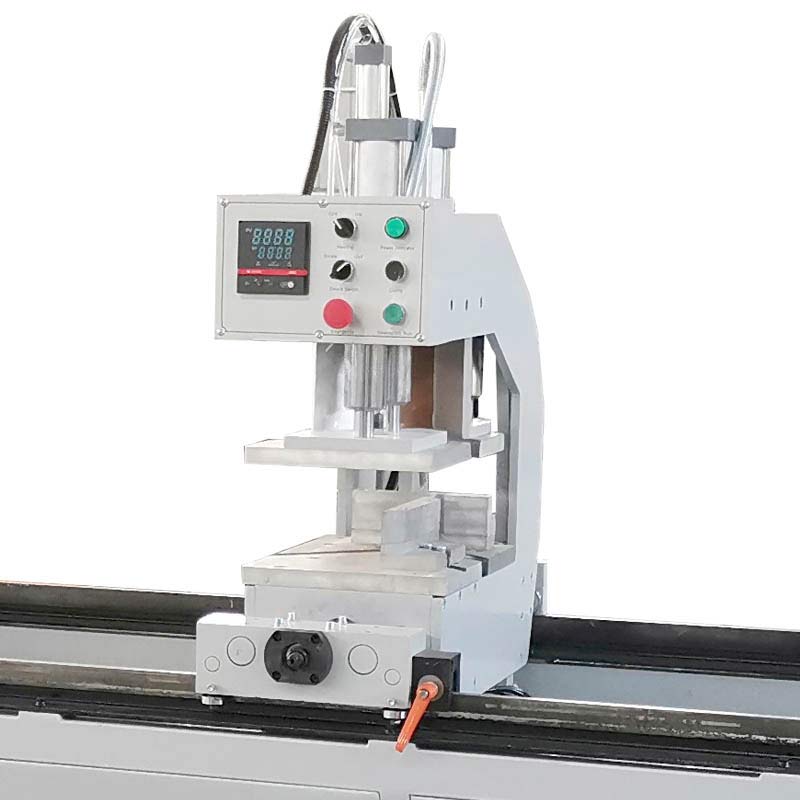

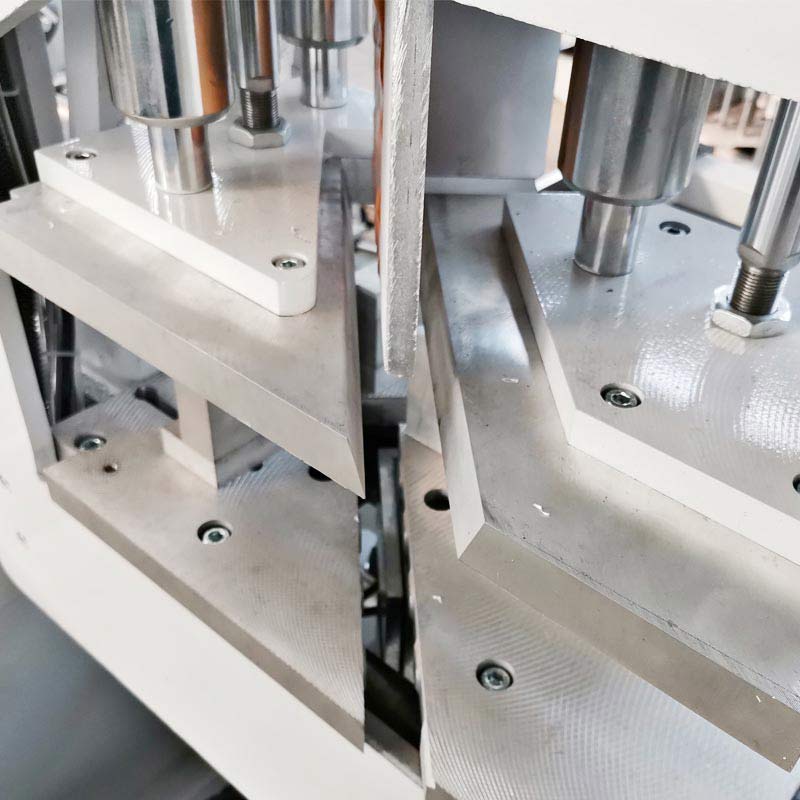

4. Each machine head is equipped with three layers of welding backing plates, which can be selected according to different height of pvc window profiles.

5. The heating time and the joint time of the profile welding can be set by the dial, and the clamping pressure and jointing pressure can be adjusted by the pressure regulating valve, which is suitable for the welding requirements of different countries and regions.

6. Each welding unit of this three head PVC welding machine can be welded at a 90-degree angle or welding mullion profiles.In order to ensure the accuracy of the mullion profile welding, it is necessary to use a V notch cutting machine and a pvc mullion profile cutting saw to cut the pvc window profile.

7. Various PVC window corner shapes such as┎┓┳┏┓┏┳┏┳┓┳┳┳, can be welded in one operation with this three head PVC welding machine.

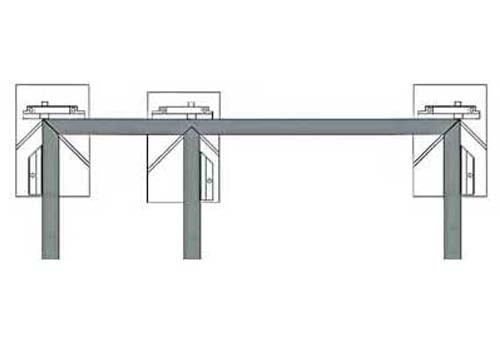

PVC window mullion welding

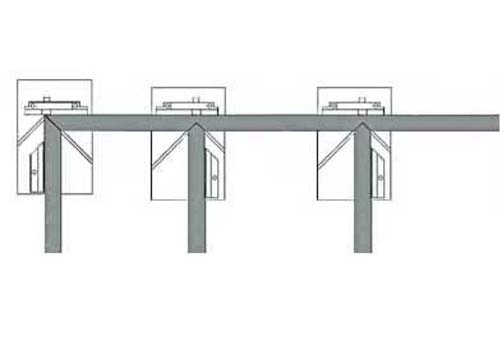

PVC window two mullions welding

TECHNICAL SPECIFICATIONS

Power supply: 380 /50 Hz or customer specification
Input power: 3.5 Kw
Dimensions:(Width×Depth×Height): 4000×1100×1700 mm
Weight when empty: 1250 Kg
Air pressure: 0.5~0.8 MPa
Air consumption: 110 L/min
Welding width(max): 120 mm
Welding height: 20~120 mm
Welding range: 400~3500 mm
