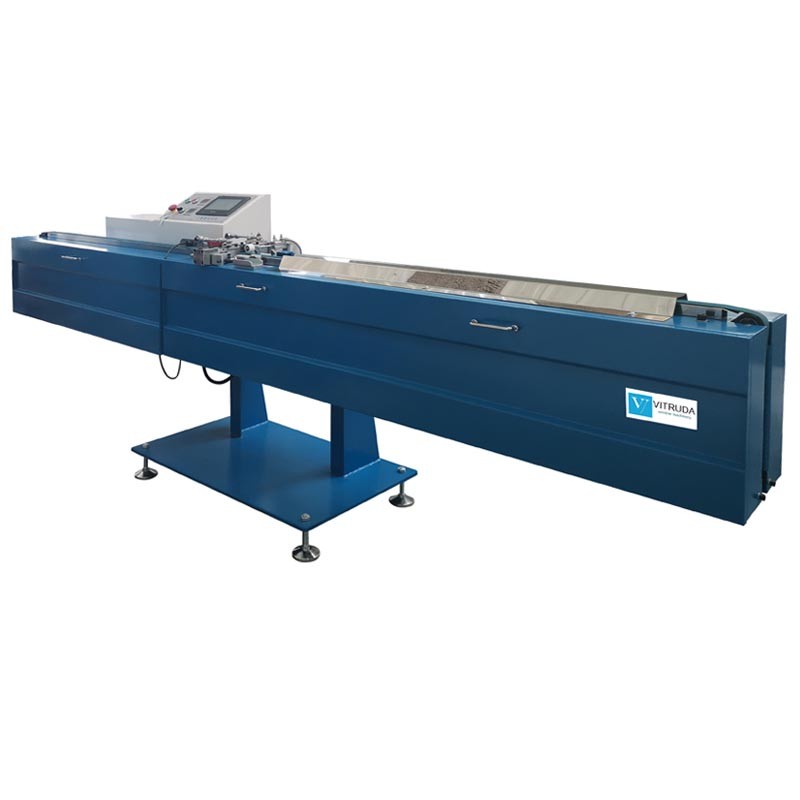

Butyl Extruder TJ05H

DESCRIPTIONS

This butyl extruder is the main glass machine for aluminum spacer sealing of insulated glass manufacturing.
It is a semi-automatic butyl extruding machine that adopts PLC, a touch screen, and an advanced pneumatic pump system, which makes the pressure more stable and energy-saving.
It adopts a frequency conversion speed control system to make the speed from 15-35m/min and adopts an automatic glue adjusting system, which can be adjusted within 6-18. 5mm.
The glue cylinder adopts a rotary structure, with 0-90 degree free rotation, which is more convenient for glue release and maintenance.
Adopt a preheating system; preheating time can be set arbitrarily to improve efficiency; it is the critical glass and window machinery for making energy-saving windows.

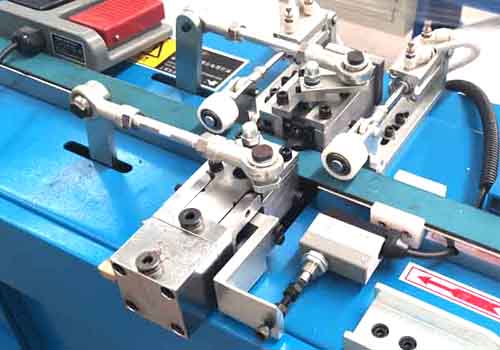

Butyl extruder details

BUTYL EXTRUDER FEATURES

• Butyl extruder adopts PLC and touch screen control system.
• To ensure continuous production time, adopt a Ø195mm diameter glue cylinder with a large loading capacity.
• Adopt a pneumatic booster system to fully ensure the balanced glue pressure from the glue head, avoiding uneven gluing thickness and glue breakage.
• Adopt 4-segment frequency conversion speed control to take care of the skillfulness of the operator and improve the working efficiency.
• Adopt automatic heating function of glue head and glue cylinder.
• No glue alarm prompt.
• Automatic glue quantity alarm system.

TECHNICAL SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Input power: 2.2 kW
• Gluing speed: 22 m/min
• Conveying speed: 15~35 m/min
• Glue temperature: 110~ 140 C
• Air pressure: 0.5~ 0.8 MPa
• Air consumption: 60 L/min
• Extrusion pressure: 15~20 Mpa
• Rubber head adjustable range: automatic 6~8 mm manual 6~27 mm
• Diameter of rubber cylinder: 200 mm
• Overall size: 3000x620x1100 mm
• Net weight: 500 Kg
