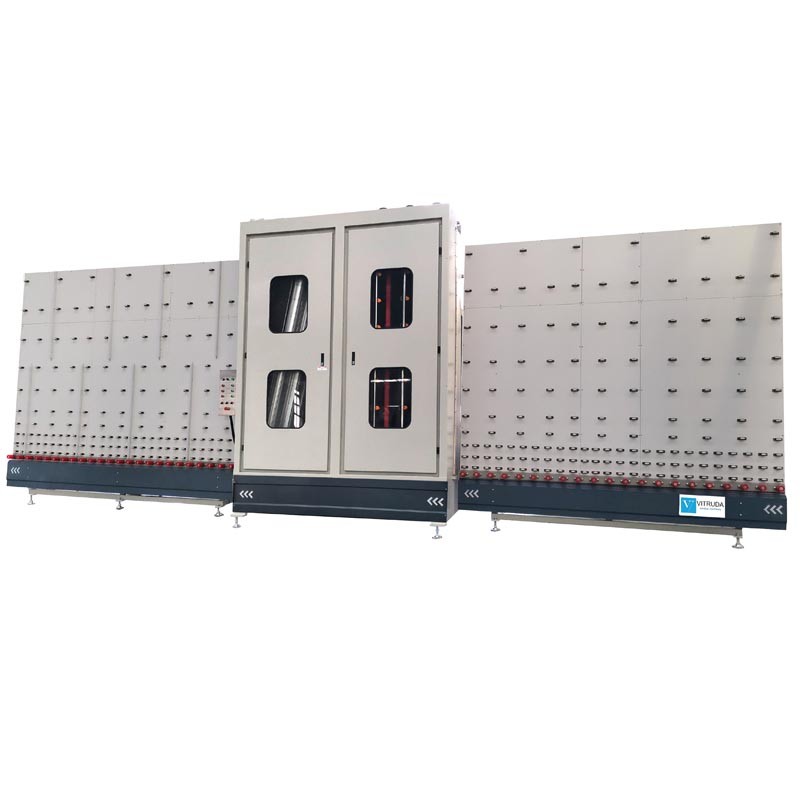

Automatic Vertical Glass Washing Machine
DESCRIPTIONS

This automatic vertical glass washing machine is suitable for automatic cleaning and drying of glass; with a floating design glass transfer mechanism, the cleaning speed can be adjusted, suitable for cleaning 3 – 18mm glass.
It is the necessary glass machine to produce insulating glass; the glass washing and drying units are all made of stainless steel, which is durable.
The glass transfer system adopts intelligent frequency conversion speed regulation to realize the efficient operation of the washing area; it is the crucial glass and window machinery for making energy-saving aluminum and PVC windows.
It can be used jointly with glass combining parts and an automatic sealing robot to form an insulating glass production line.

FEATURES

• The glass feeding system adopts frequency conversion to regulate the speed, and the practical design of the drying unit of the vertical glass washing machine ensures the drying effect and reduces energy consumption.
• The cleaning and drying unit are made of stainless steel.
• The glass transmission, cleaning, and drying process is completed automatically.
• It can be used jointly with a glass combining machine and automatic sealing robot to form an insulating glass production line.
• Voltage overload protection system.

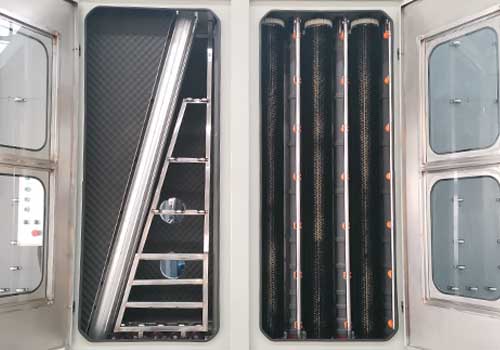

Vertical glass washing machine part 1

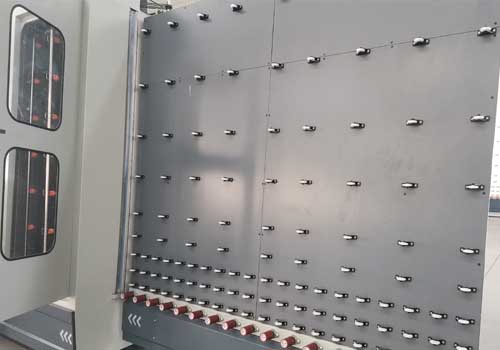

Vertical glass washing machine part 2

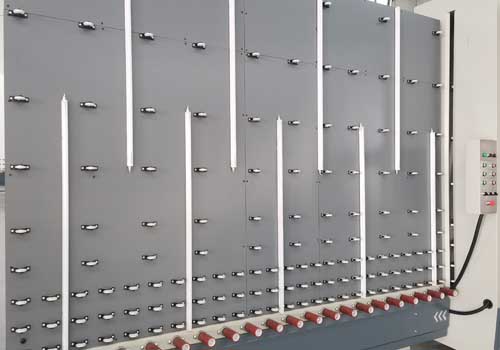

Vertical glass washing machine part 3

TECHNICAL SPECIFICATIONS

LQ2000
Power supply: 380 V/50 Hz
Total power: 19kW
Max glass size: 2000 x 2500 mm
Min glass size: 280x450 mm
Thickness of original glass: 3~18 mm
Cleaning speed: 0~8 m/min
Total weight: 3000 kg
Overall dimension: 8500x2100x3050 mm
• LQ1800
Power supply: 380 V/50 Hz
Total power: 15 kW
Max glass size: 1800 x 2500 mm
Min glass size: 280x450 mm
Thickness of original glass: 3~18 mm
Cleaning speed: 0~8 m/min
Total weight: 2500 kg
Overall dimension: 8500 x 2100 x 2850 mm
