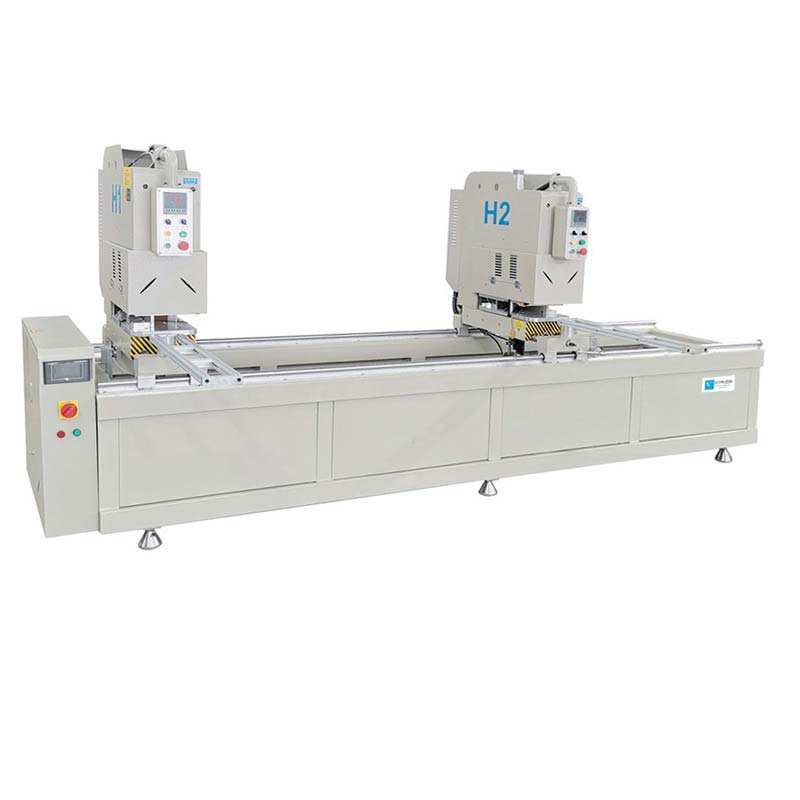

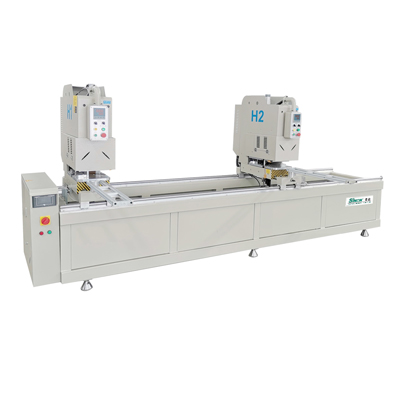

uPVC Window Two Head Seamless Welding Machine

PRODUCT DESCRIPTIONS

The uPVC window two head seamless welding machine is suitable for welding uPVC two-color co-extrusion profiles and standard white profiles with a high level of automation, the automatic process starting and finishing.
We know that there are many kinds of surface finishes for PVC win-door profiles, such as white, white-gray co-extrusion, natural wood surface clad PVC, etc. When using a standard PVC window welder to make windows, the corner surfaces need to be cleaned, which can damage the finish and make the appearance unattractive.
This two head seamless welding machine solves this problem, the surface of the corner does not need to be cleaned, and the complete decorative surface is preserved, so that the colorful window can be applied to more interior styles.
In addition to the above reasons, if the white profile is welded with seamless welding machines, the surface of the corner does not need to be cleaned, the corner appearance is beautiful and the window production efficiency is high. It should be noted that the inside and outside of the corner still need to be cleaned.

Double head seamless welding machine  details

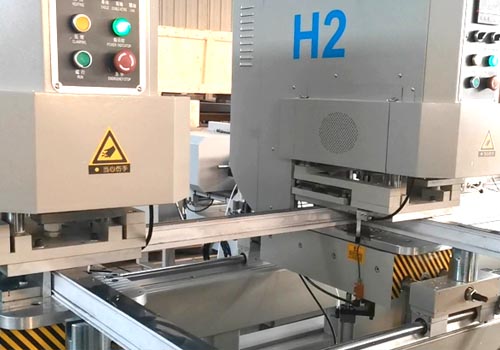

double head seamless welding machine welding

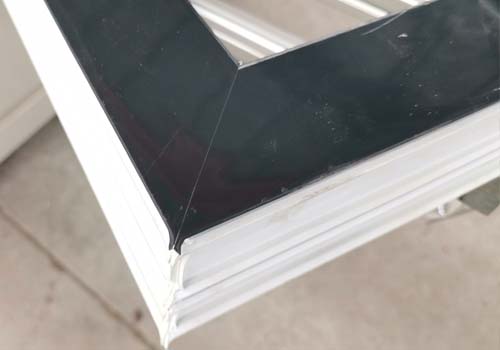

Double head seamless welding machine corner welding effect

FEATURES

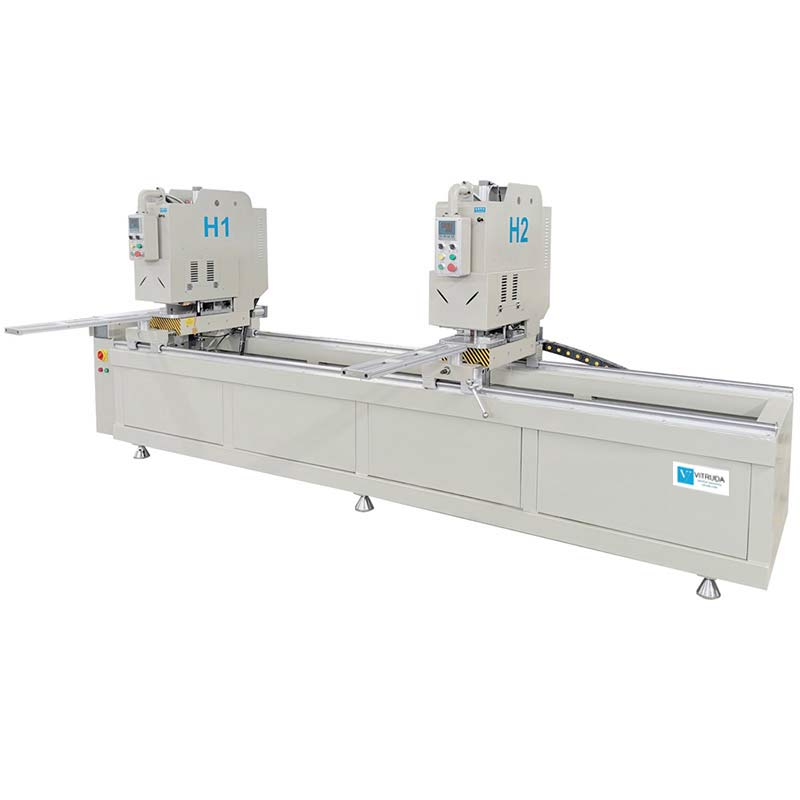

• This two head seamless welding machine consists of 2 welding units, guide rails, 2 heating systems, 2 temperature control systems, a PLC control system, and two corner cleaning structures, the length of the machine is 3500 mm. It is crucial window machinery for making two-color co-extrusion windows and doors.

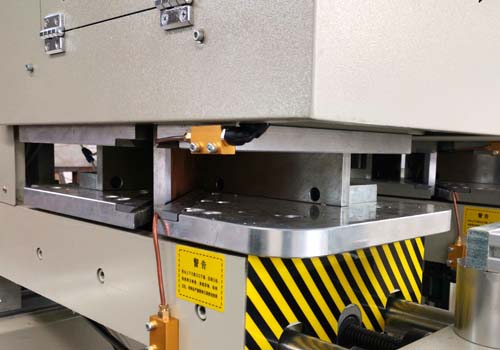

• This seamless welding machine is designed with corner cleaning knives made of alloy and air-blowing structures as shown below, which automatically clean the surface and cools the corner, and the welding seam’s surface after welding is beautiful and smooth. Pneumatic motion and the auxiliary motion are CM oil-free and linear ball bearings.

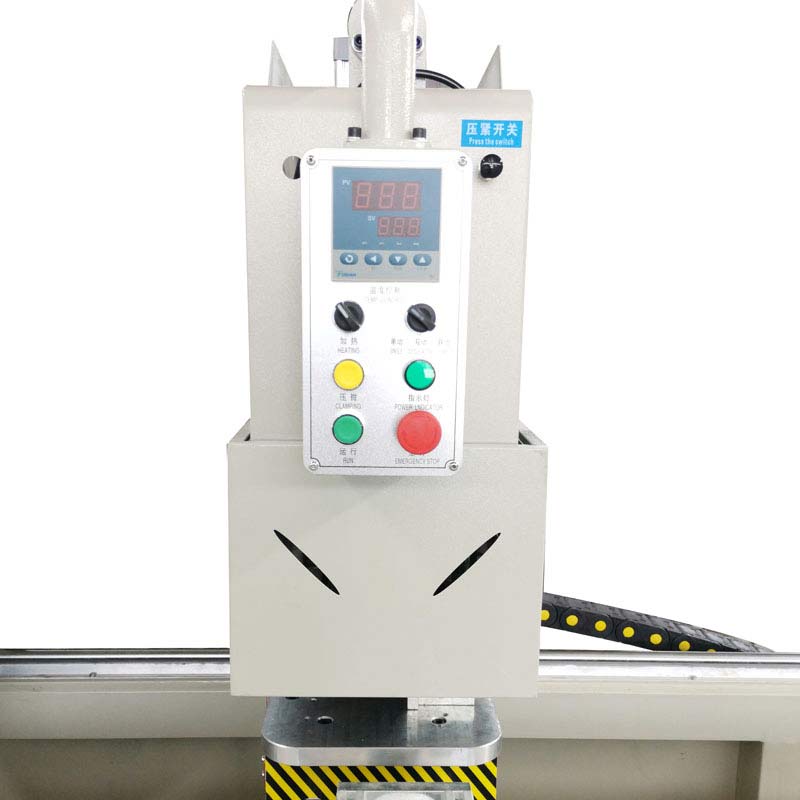

• The temperature is set by the electronic thermostat, and the heating time, combining time and blowing time are set by the touch screen. as shown below.
• The front clamping and rear clamping of the profile are synchronized to ensure the flatness of the corner welding, which is different from the double-head welding machine.

HOW TO MANUFACTURING COLORFUL UPVC WINDOWS – 7 EASY STEPS

TECHNICAL SPECIFICATIONS

• Power supply: 380 V/220 V
• Input power: 3.5 Kw
• Air pressure: 0.5~0.8 MPa
• Air consumption: 150 L/min
• Welding width(max): 120 mm
• Welding height: 20~160 mm
• Welding range: 400~3500 mm
• Dimensions (Width×Depth×Height): 5100×1500×1850 mm
• Net weight: 1000 Kg
