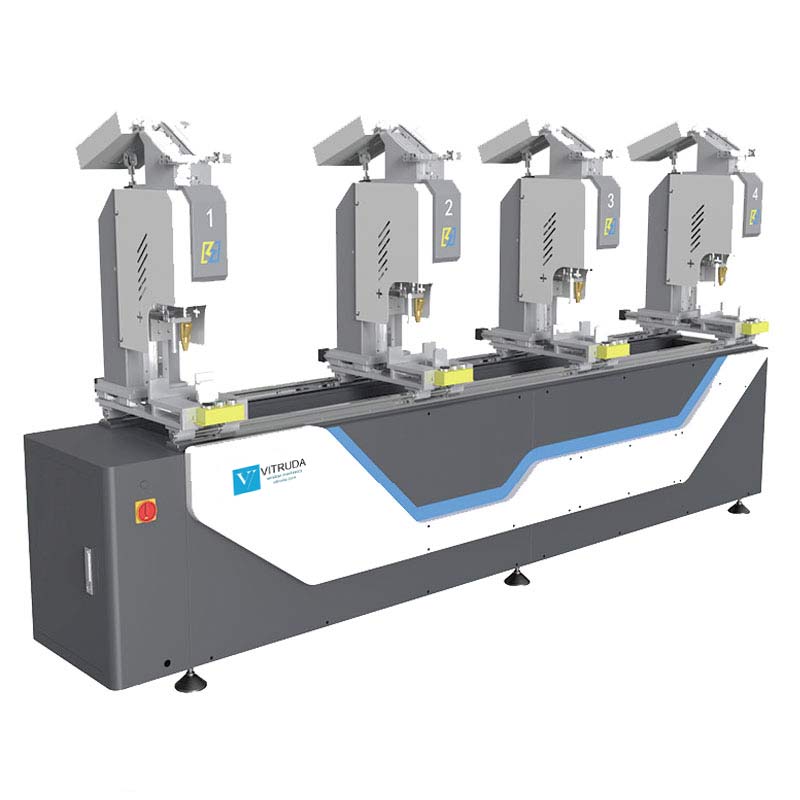

LDJ4 PVC Profile Four Head Screw Machine

PRODUCT DESCRIPTIONS

1. This automatic PVC profile four head screw machine is suitable for fast fastening between PVC profiles and reinforced steel, it is a necessary PVC window machine.

2. The screws used in this PVC profile screw machine are highly adaptable, as long as they meet the standards, the manufacturer of the screw is not limited.

3. The depth of screw fastening is adjustable, and there is generally no need to adjust when changing profiles.

4. The spacing of the fastening screws can be adjusted by adjusting the position of each screwing machine head.

5. This PVC profile four head screw machine is controlled by PLC system and the screw feeding, PVC profile clamping, screw drilling, and tightening can be completed automatically at one time. The operation is convenient, the production efficiency of PVC doors and windows is high, and the labor cost is saved.

6. The screwdriver bits are easy to disassemble and assemble, and it only takes a few seconds to replace the screw.

7. Supports S-shaped screws, and profiles of different widths can be adjusted by lead screws without removing the backing plate.

SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Input power: 4×0.5 Kw
• Air pressure: 0.5~0.8 MPa
• Air consumption: 70 L/min
• Height of profile: 30~130 mm
• Max thickness of steel: 2 mm
• Screw specification (cross head): Φ3~5 mm/13~19 mm
• Movable distance: 20~70 mm
• Dimensions:(Width×Depth×Height): 3300×900×1700 mm
• Weight when empty: 850 Kg
