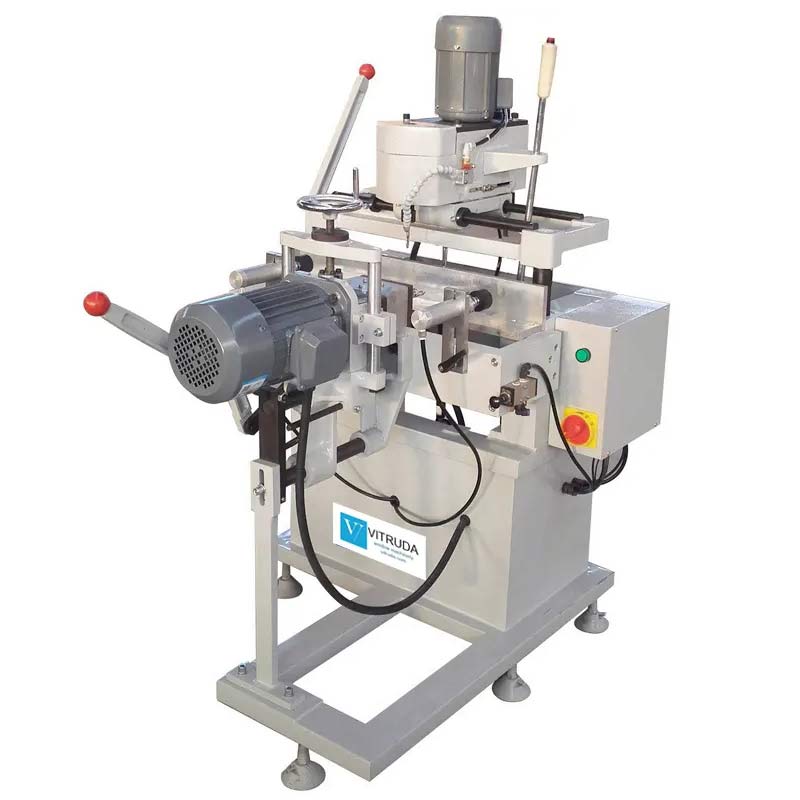

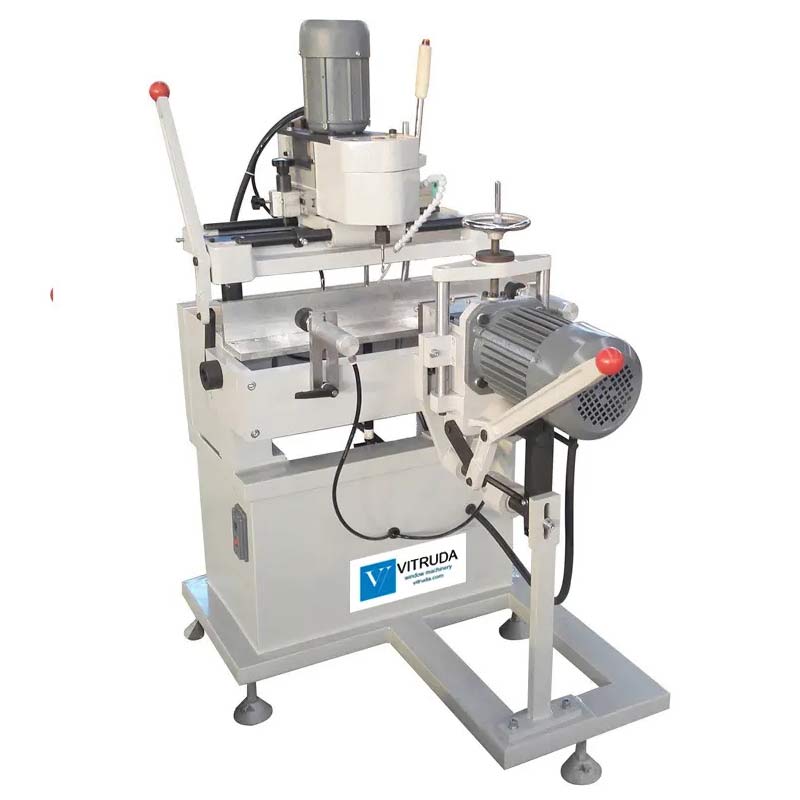

Aluminum Window Lock Hole Drilling Machine

Product Item : SSKC02-100
Category： Copy Router Machines
Color : gray/white
Origin： China
Application: Designed for copy milling and triple drilling of aluminium and PVC profiles
INQUIRY EMAIL

Aluminum Window Lock Hole Drilling Machine

DESCRIPTIONS

1. This aluminum window lock hole drilling machine with triple drilling is used for processing water slots and Handle holes for installing the window hardware at the PVC and aluminum profile.

2. The lock hole drill system opposite the operator, easy operation.The machining of three holes is driven by a motor through a gear box to rotate three drills.

3. Routing to stops or universal template in a1:1 ratio.The profiling milling part is processed by a milling cutter driven by a motor through a belt drive under the guidance of a two-stage profiling contact rod. The diameter of the contact rod is the same as the diameter of the milling cutter. The milled hole pattern is the same as the hole pattern of the profiled plate.

4. Handle wheel for easy adjusting milling height. Friendly using design.

5. Horizontaltriple drill bit kitand vertical copy router with a special cutout working table to realize.

6. Equipped with a standard hole template, the plan template lock hole drilling machine is standard equipped or specifically designed.

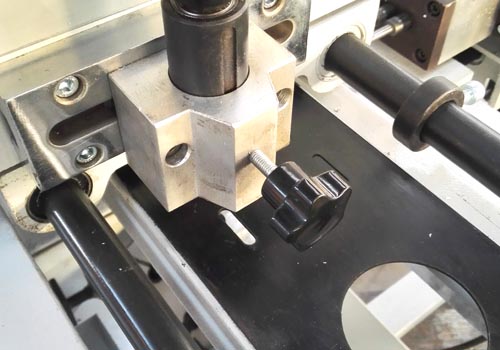

lock hole drilling machine copy template

lock hole drilling machine copy template

SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Input power: 2.2 Kw
• Air pressure: 0.5~0.8 MPa
• Air consumption: 30 L/min
• Milling cutter Diameter: 5 mm / 8 mm
• Copy milling range: 100×290 mm
• Slot Depth(max): 30 mm
• Main-Shaft Revolution: 12000 r/min
• Dimensions (Width×Depth×Height): 900×1130×1400 mm
• Net weight: 300 Kg
