uPVC Window interlock milling machine

PRODUCT DESCRIPTIONS

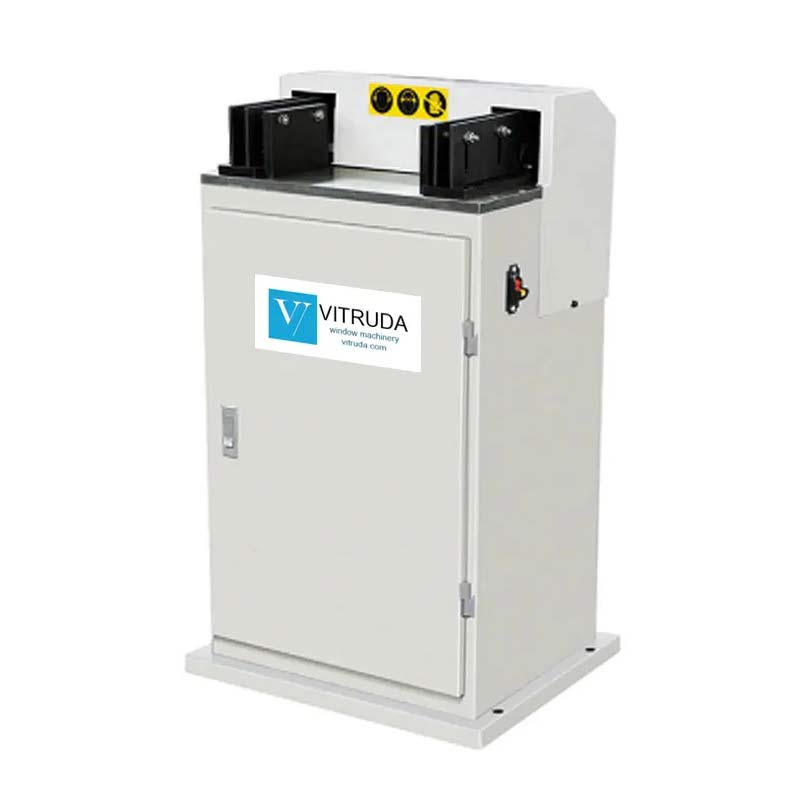

This SFX02 uPVC window interlock milling machine is suitable for milling the interlocking profile of uPVC sliding windows and doors. It comprises the machine bed, worktable, electromotive, central axle, profile guiding mold, and electric system.
Electro-motor directly connects the central axle, making installing and replacing the milling cutters easy.
This machine adopts two adjustable guiding systems and positioning systems, suitable for different uPVC interlocking profiles.

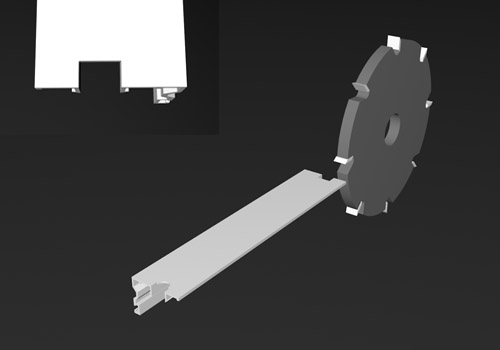

uPVC interlock milling machine milling

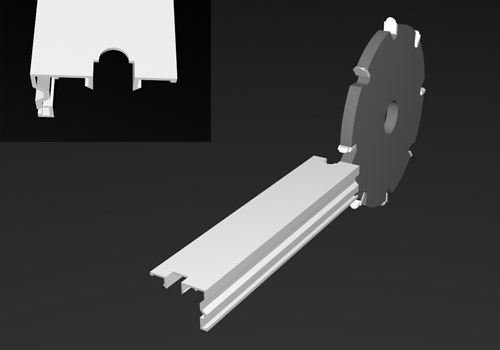

uPVC window interlock milling machine milling

FEATURES

• The milling cutter of this uPVC window machine interlock milling machine needs to be customized according to the PVC interlock profiles.
• Both direct-end flutes and arc-end flutes can be processed.
• Milling cutter replaceable.

TECHNICAL SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Input power: 0.75 Kw
• Main-shaft Revolution: 2800 r/mm
• Max Processing Height: 100 mm
• Diameter of milling cutter: ∮115~∮200 mm
• Dimensions (Width×Depth×Height): 530×530×1100 mm
• Net weight: 100 Kg
