CNC Aluminium Profile Saw Machine for Sale

Product Item : LJZ2-CNC-500*4200
Category： Aluminum Cutting Machine
Color : gray/white
Origin： China
Application: Designed for aluminum profiles cutting
INQUIRY EMAIL

CNC Aluminium Profile Saw Machine for Sale

PRODUCT DESCRIPTIONS

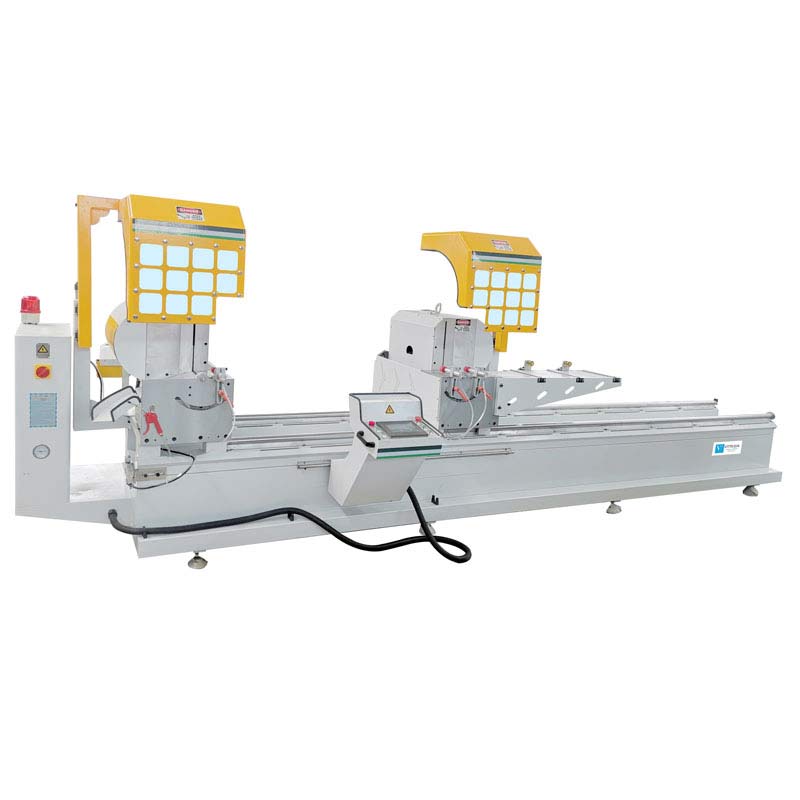

This LZJ2 double head CNC aluminium profile saw machine is suitable for cutting aluminium window profiles. It consists of a CNC system, two cutting units, rails, a touch screen, and a bed, and adopts 500 mm saw blades, automatic positioning, and angle conversion It is the central alumiuium machine for processing aluminum, uPVC, curtain wall, and other profiles.
Input the cutting length on the touch screen and the right cutting unit is automatically positioned. The two cutting units can be selected to work independently or jointly, and the cutting angle is automatically switched at 45 degrees, 90 degrees, and 135 degrees driven by the cylinder, these operations are all realized on the touch screen.
The feeding system adopts high-quality linear guides with high accuracy and good stability, and the saw blade adopts a high-precision spindle with stable rotation.

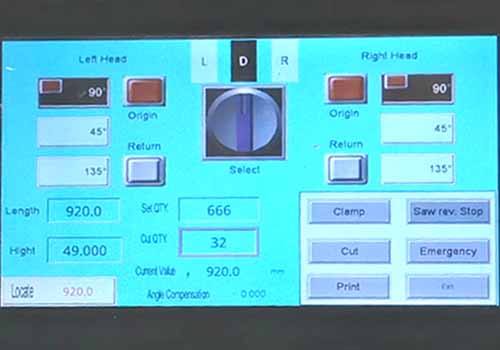

CNC Aluminium Profile Saw Machine Touchscreen

CNC Aluminium Profile Saw Machine Touchscreen

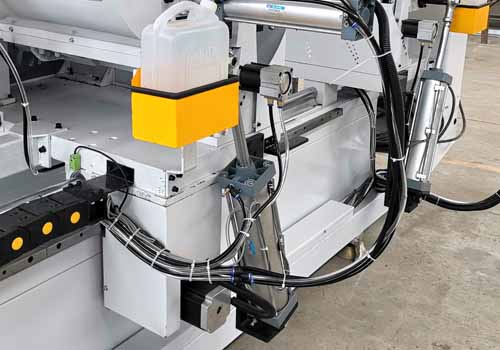

LZJ2 CNC aluminium profile saw machine automatic cutting angle position system

FEATURES

• The cutting feed of the aluminium profile saw machine is completed by the work-in (gas-liquid damping) cylinder, and its pneumatic control system has the function of steeples speed regulation.
• According to the processing needs, the feed and return speed can be adjusted to make it slow, the function of rapid feed and rapid return.
• The two cutting units can be used together or separately to cut the required length and degree effectively.
• Adopt two cutting saw blades HSS (High-Speed Steel) – 500mm.

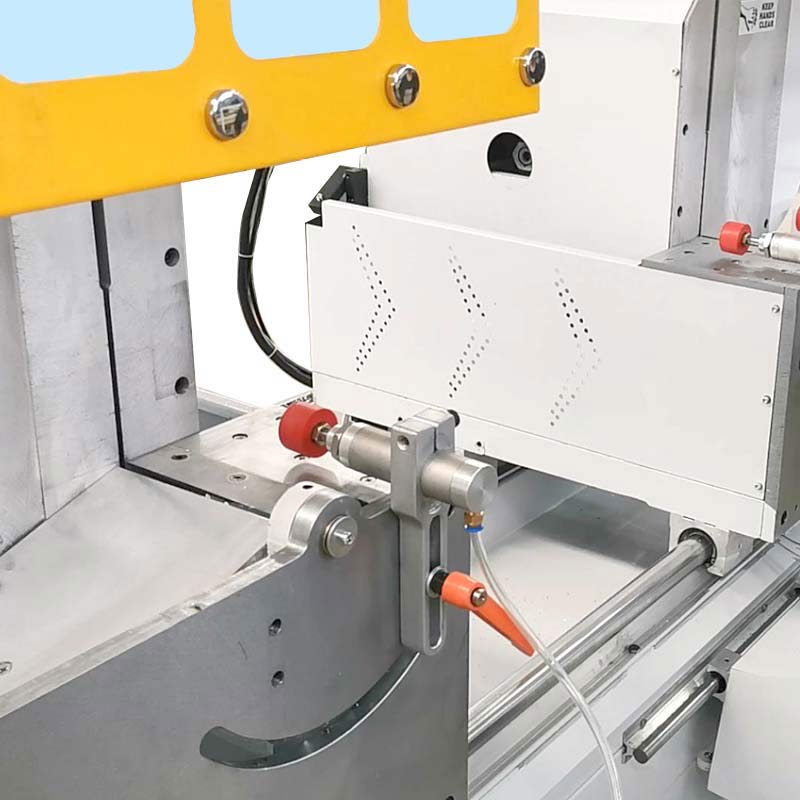

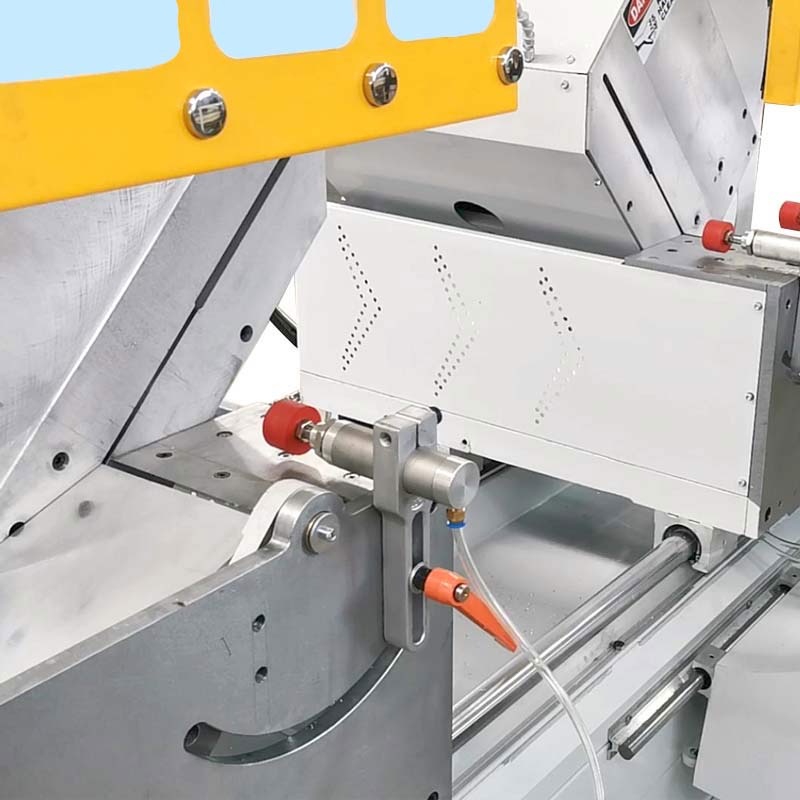

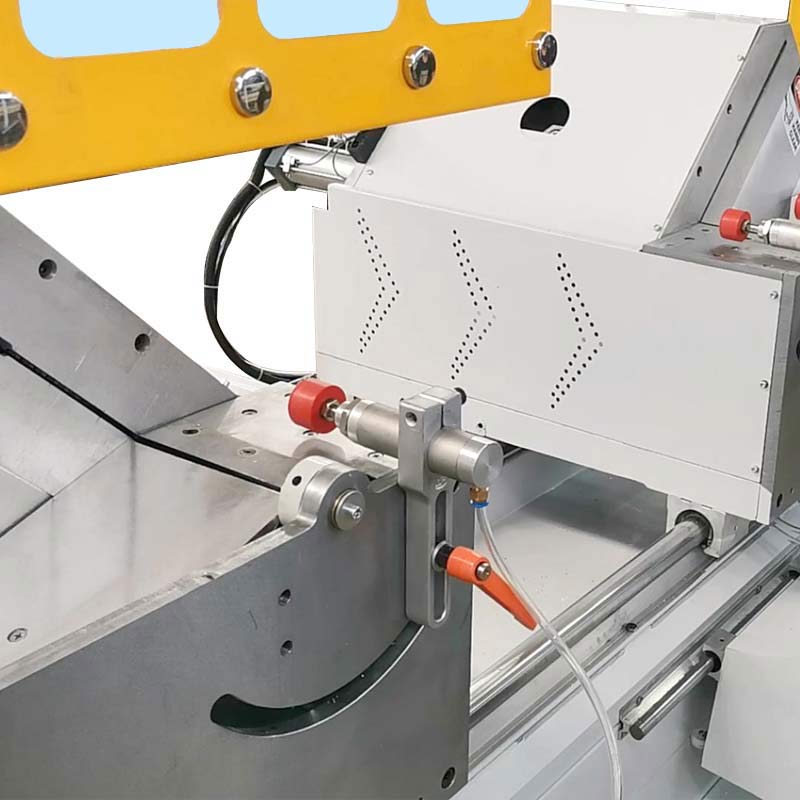

• Adopt two horizontal pneumatic cylinder clamping systems.
• Profile support unit.
• Adjustable saw blade travel speed.
• Linear rails head movement.

TECHNICAL SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Input power: 2×2.2 Kw
• Motor rotary speed: 3200 r/min
• Air pressure: 0.5~0.8 MPa
• Air consumption: 80 L/min
• Diameter of blade: ∮500×∮30×4.4 mm z=120
• Cutting height: 45°max×200 mm,90°max×300 mm
• Cutting width: 120 mm
• Cutting angle: -45°,135°,90°
• Feeding speed: 0~3 m/min
• Cutting length: 420~4200 mm
• Dimensions (Width×Depth×Height): 6100×1300×1650 mm
