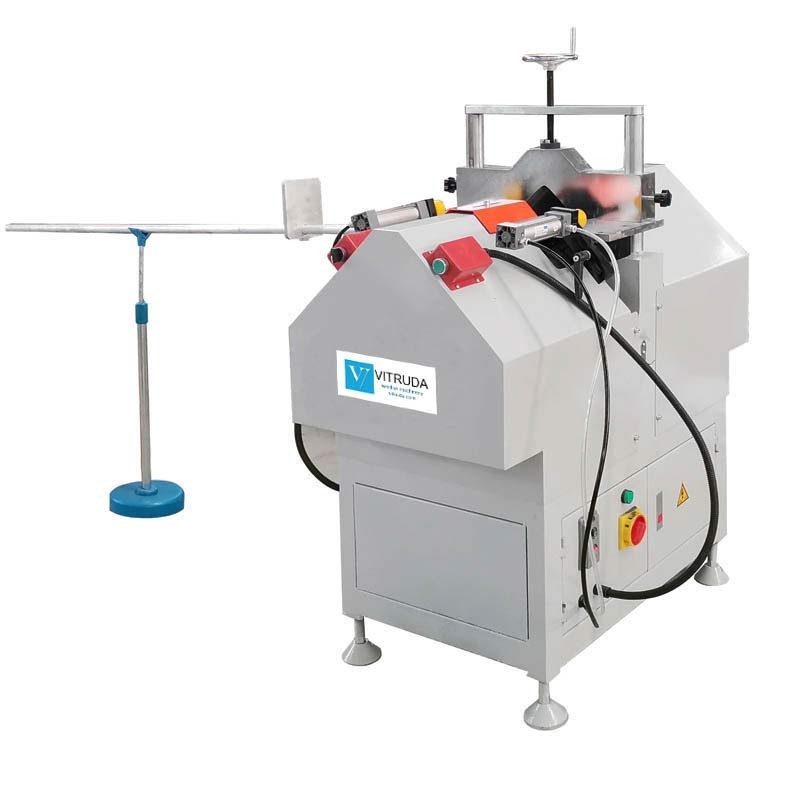

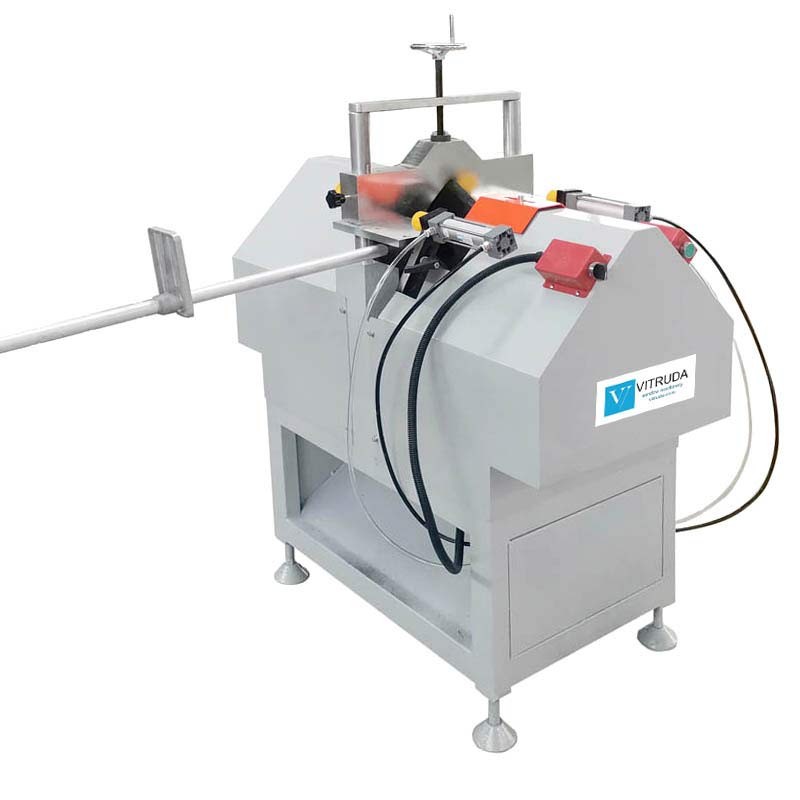

uPVC Window V Notch Cutting Machine

PRODUCT DESCRIPTIONS

This uPVC window V notch cutting machine is a necessary uPVC window machine for making fixed and casement uPVC windows with mullion profiles. It is composed of a cutting unit, a liftable worktable, a profile stop, and a machine bed. You can adjust the worktable according to the depth of the V notch and lock it.
This uPVC profile V notch cutting machine has a switch and a button, turn the switch to clamp the uPVC frame profile, and press the button to run the V notch cutting process.

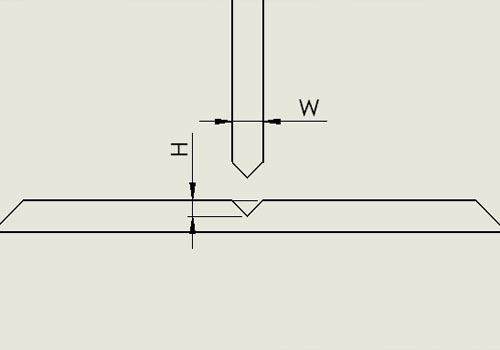

It is equipped with a scale and a locking device by adjusting the height of the v cutting machine worktable to locate the V notch cutting depth size.
According to the chemical properties of the PVC profile, the cutting speed can be adjusted.
Adopt two cutting saw blades HSS (High-Speed Steel).
Adopt two cylinders horizontal pneumatic clamping system.
Left profile holding and stop.
When making fixed or casement uPVC windows and doors using the welded mullion method, the mullion cutting machine is necessary in addition to the V-notch cutting machine.

How to Adjust the Worktable of the V-notch Cutting Machine?

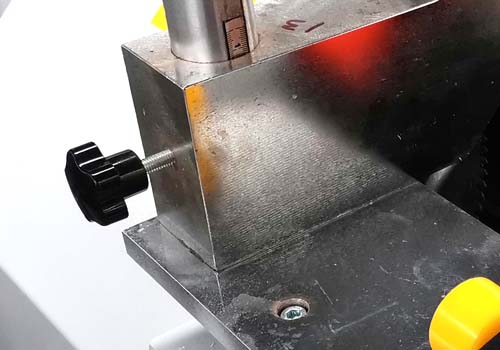

V notch cutting machine worktable adjust the five-star handle

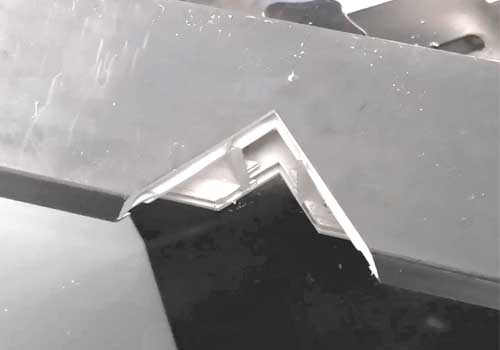

V notch cutting

TECHNICAL SPECIFICATIONS

Power supply: 380 V/50 Hz
Input power: 2x1.1 Kw
Motor rotary speed:2800 r/min
Dimensions (Width×Depth×Height):560×1260×1350 mm
Air pressure: 0.5~0.8 MPa
Air consumption: 20 L/min
Saw blade diameter: ∮300 mm×∮30 mm
V notch cutting height: 0-60 mm
Cutting length: 300~1600 mm
