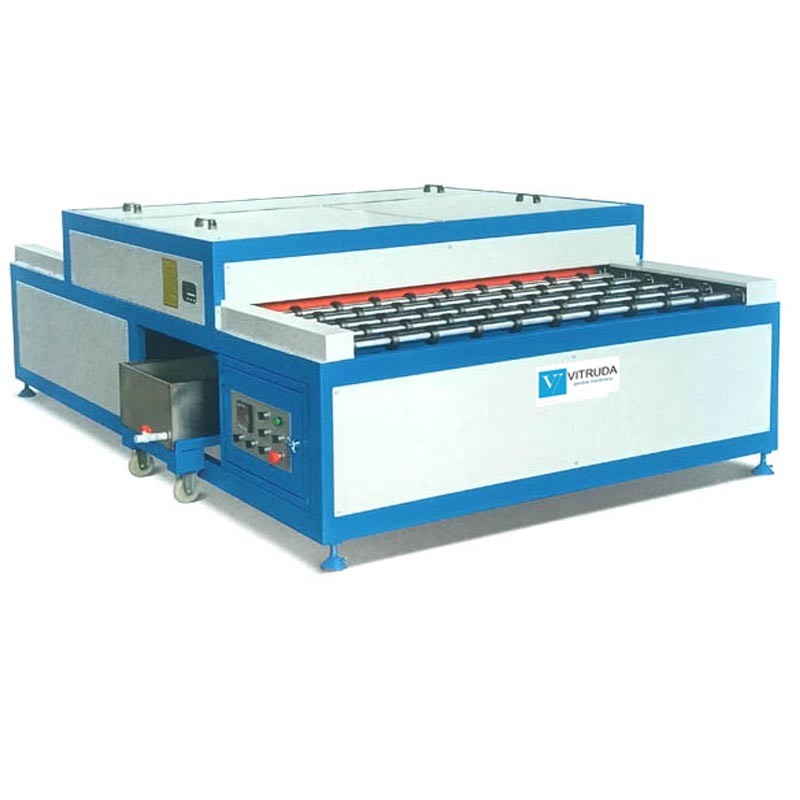

Horizontal Glass Washing Machine

DESCRIPTIONS

This horizontal glass washing machine is suitable for washing and drying glass, and it is a necessary machine for making insulated glass and, aluminum & PVC windows.
It adopts a horizontal structure and overall frame design. It consists of a glass washing unit, a water absorption unit, and a drying unit.
The water absorption unit adopts a sponge roller to absorb water, and the drying unit adopts a hot air structure to dry glass quickly.
The cleaning area and waterway system are all made of stainless steel and corrosion-resistant materials, which are durable.
The conveyor system adopts step-less speed regulation to realize high efficiency.

FEATURES

• The horizontal structure, cleaning unit, and drying unit are separated.
• Water storage tank with rollers for the easy water change.
• Suitable for cleaning small size glass.
• Voltage overload protection system.

TECHNICAL SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Total power: 8.43 kW
• Max glass size: 1560x2000 mm
• Min glass size: 400x400 mm
• The thickness of original glass: 3~1 2 mm
• Cleaning speed: 1.2~5.0 m/min
• Overall dimension: 3800x1900x900 mm
