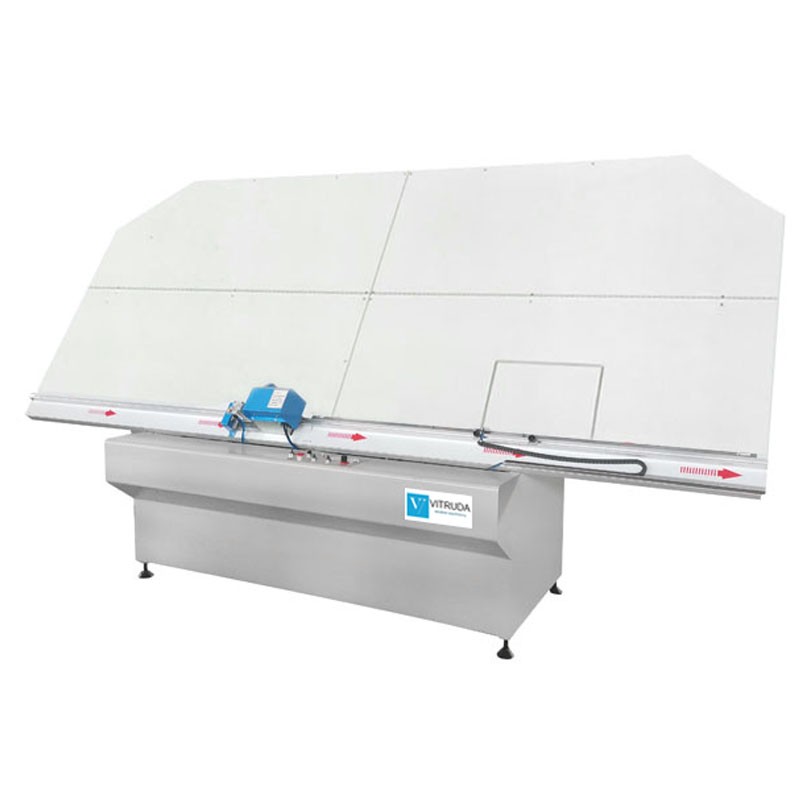

Automatic Spacer Bending Machine

DESCRIPTIONS

This automatic spacer bending machine is suitable for 90 degrees bending of the aluminum spacer, a particular glass machine for making insulated glass and energy-saving aluminum and PVC windows & doors, solving the problem of sealing insulating glass by inserting the corner.
The PLC system controls the spacer bender and automatically completes the aluminum spacers’ positioning and bending.
The performance is stable and reliable, easy to operate.

FEATURES

• PLC control system for spacer bending.
• Spacer bending size adjustable.
• Voltage overload protection system.
• Reliable machine positioning, smooth operation, and extensive processing range of aluminum frames.

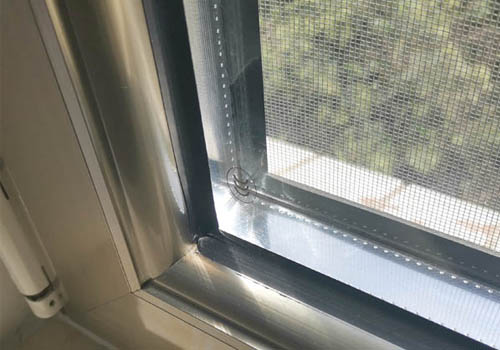

Spacer bending effect

TECHNICAL SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Input power: 3 Kw
• Air pressure: 0.5 ~ 0.8 MPa
• Aluminum spacer specification: 5.5~26.5 mm
• Aluminum bar size: 350x 350 ~ 2500 X 2500 mm
• Bending angle: 90°
• Overall dimension: 4400x 1600 X 2300 mm
• Net weight: 450 Kg

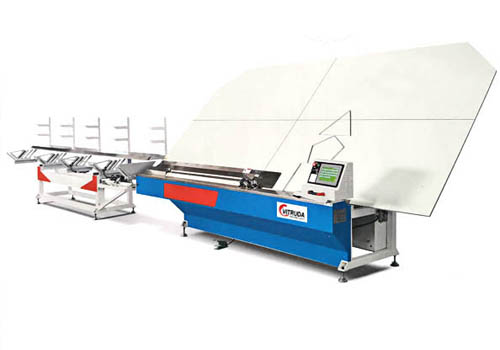

CNC Spacer Bending Machine
