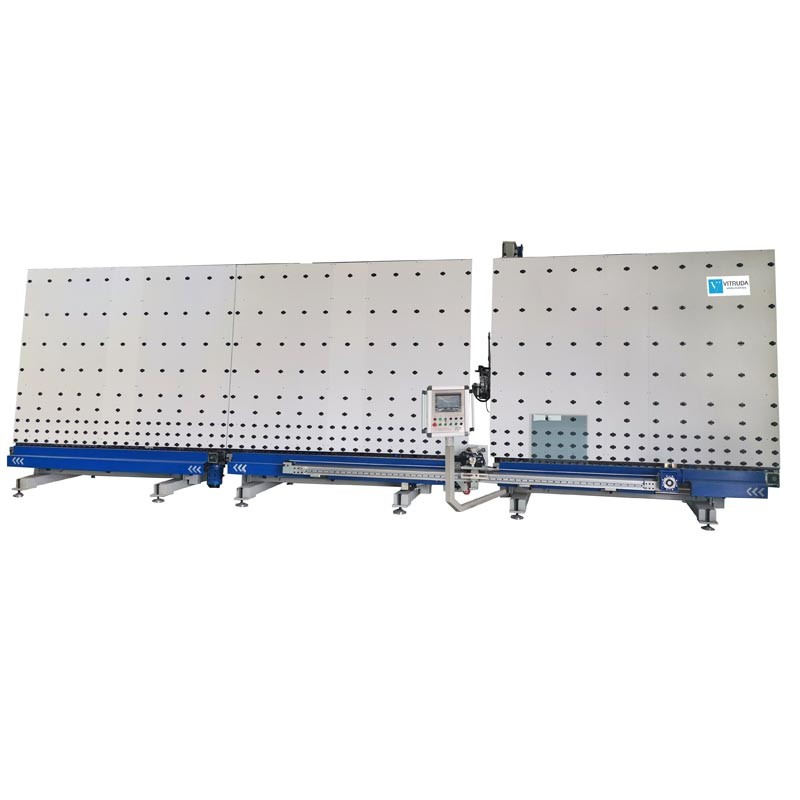

Automatic Insulated Glass Sealing Robot

DESCRIPTIONS

This automatic insulated glass sealing robot is used for continuous sealing and gluing on the outside of a rectangular insulated glass of various sizes, with high efficiency and stable quality.
The edges are coated with glue without bubbles, and the corners are total without manual trimming.
It is equipped with two completely independent glue supply systems, which can switch according to requirements.
The third part can be pre-stored with glass to enhance the continuity of machine operation and improve production efficiency. It is the vital glass and window machinery for making energy-saving aluminum and PVC windows and insulating glass.

FEATURES

• Adopt servo control system, stable performance.
• Adopt a precise synchronous belt transmission system to ensure smooth and pollution-free glass operation.
• Adopt an automatic alarm device for glue quantity.

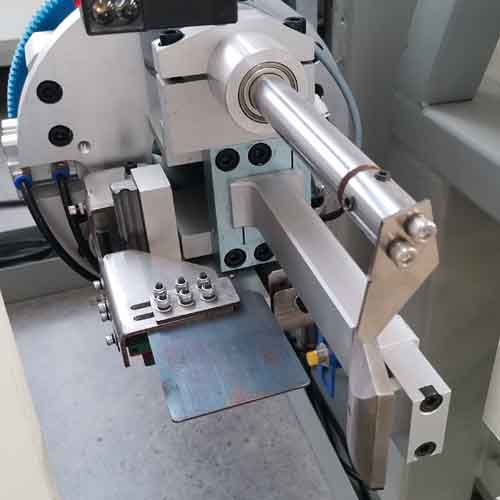

Automatic glass sealing robot system

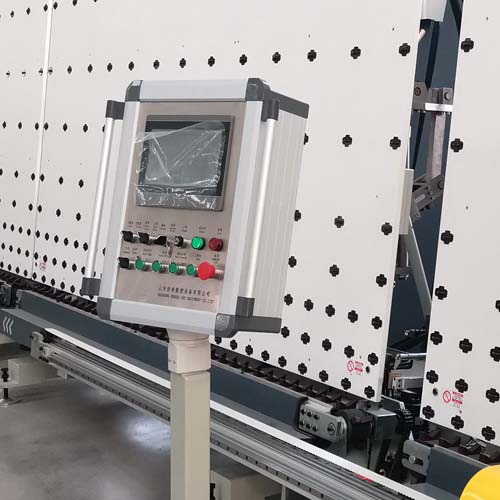

Automatic glass sealing system

TECHNICAL SPECIFICATIONS

Power supply: 380 V/50 Hz
Total power: 7 kW
Glue supply system: single mixing/double mixing
The thickness of insulating glass: 12-50 mm
Working speed: 5~40 m/min
Min, glass size: 280 x 400 mm
Max. glass size: 2000x 2500 mm
Glue width: 6-22 mm
Glue depth: ≤18 mm
Airflow: 0.8 m3/min
Air pressure: 0.6-0.8 MPa
Overall dimension: 8500 x 1400 x 2950 mm
