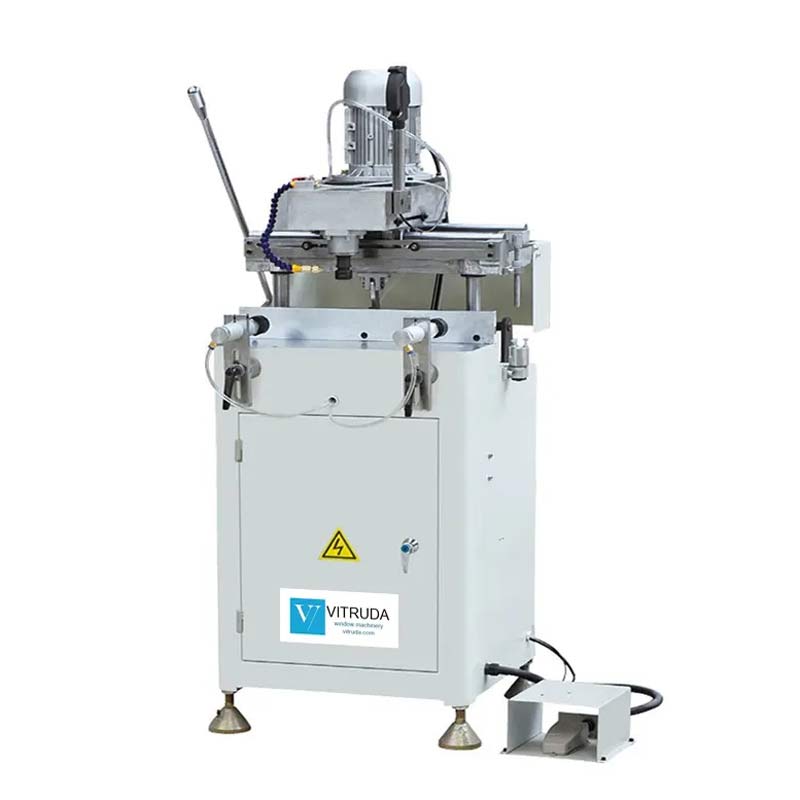

LSXZ1B Single Head Aluminium Copy Router

DESCRIPTIONS

LSXZ1B single head aluminium copy router used for copy routing appropriate slots on aluminium profiles for mounting locks, water slots, grips, hinges, latches, and opening channels.

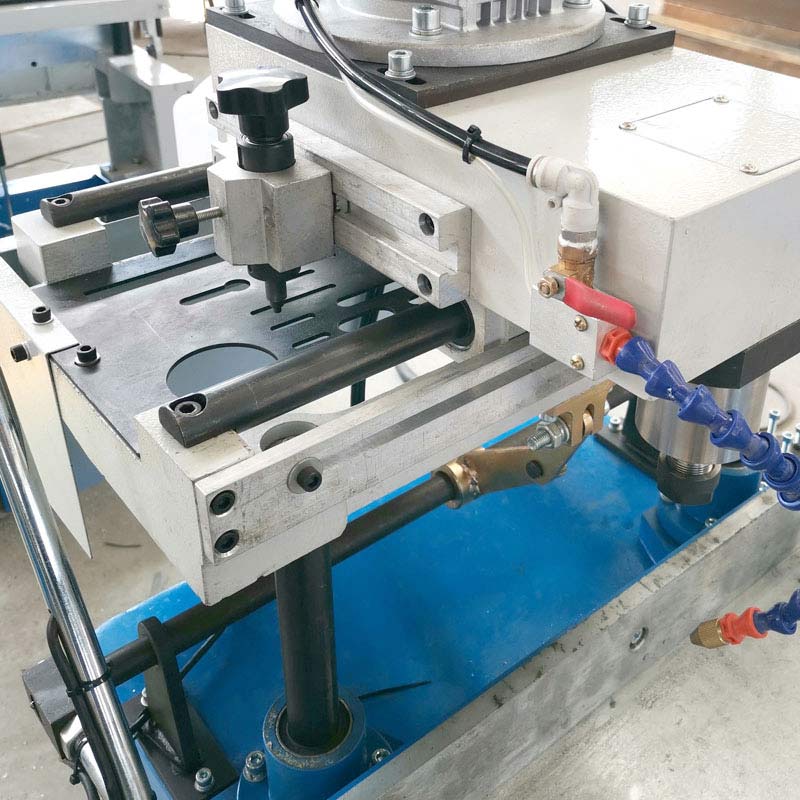

It consists of a drilling and milling unit, standard hole template, worktable, profile clamping device, copy routing structure and bed, etc.

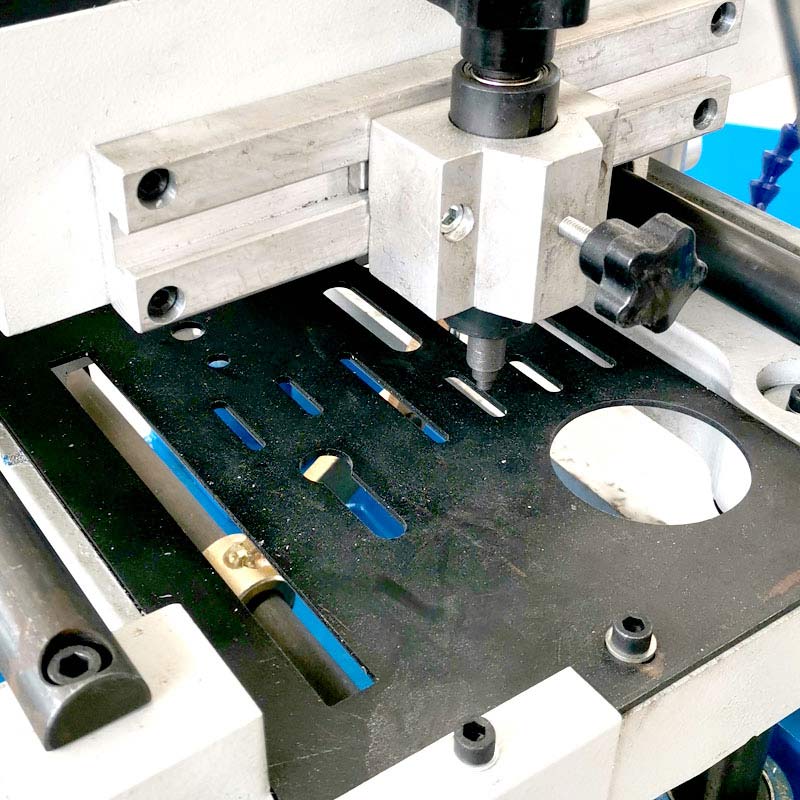

Equipped with a 1:1 ratio standard milling template, which can quickly copy routing various lock holes, water slot holes, and other shapes of hole grooves, and customize professional copy dies for unique window-making shaped holes.
When milling rectangular holes on the aluminium profiles, you can use the four positioning blocks to set the size quickly.

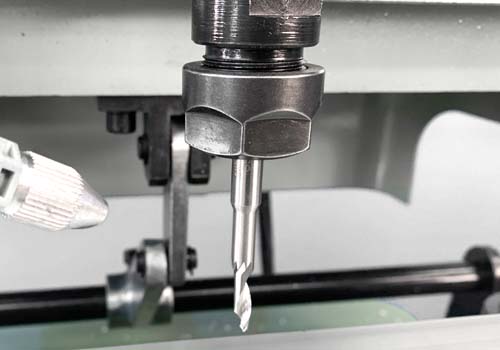

Single head aluminium copy router drill

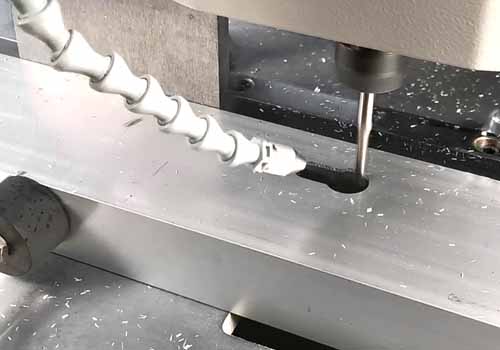

Single head aluminium copy router lock hole routing

FEATURES

• This single head aluminium copy router has a standard hole copy die customized according to customer requirements.
• When milling aluminum alloy profiles, it is necessary to spray the milling cutter with the cooling system.
• The router unit moves on recirculating ball bearings, ensuring excellent stability and precision to the head unit, and making it possible to work on every kind of aluminum and PVC profile.
• Copy router unit used with the copying template.
• Adopt a gas-spring structure to ensure stable drilling.
• The scale of copy routing operation is 1:1.
• Adjustable routing depth.
• Horizontal pneumatic clamping.

TECHNICAL SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Input power: 2.2 Kw
• Air pressure: 0.5~0.8 MPa
• Air consumption: 10 L/min
• Milling cutter Diameter: Ø 5 mm / Ø 8 mm
• Copy milling range: 370×125 mm
• Main-Shaft Revolution: 12000 r/min
• Dimensions (Width × Depth × Height): 870×700×1500 mm
• Net weight: 180 Kg
