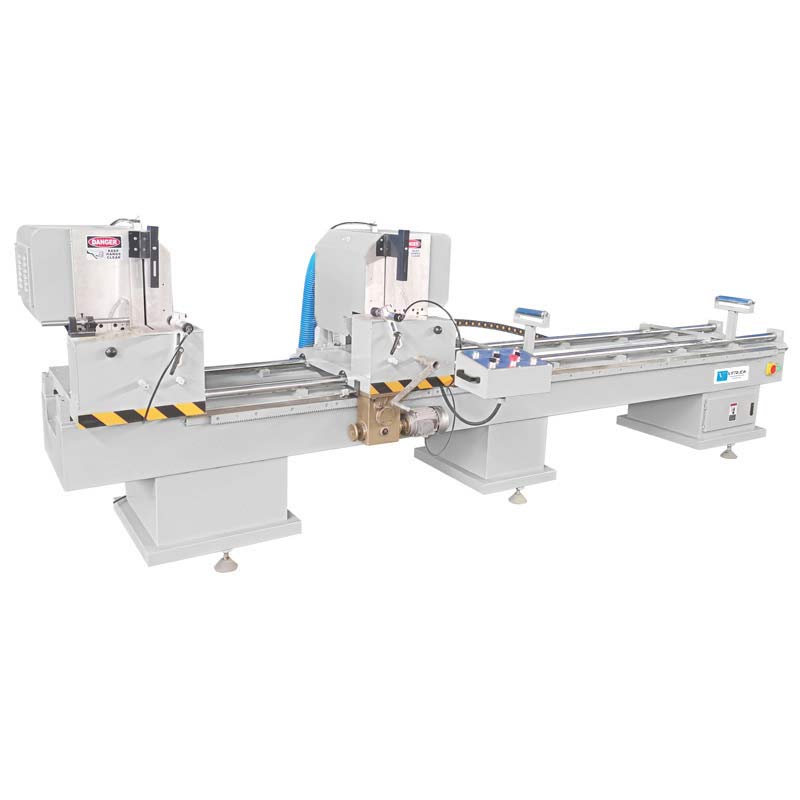

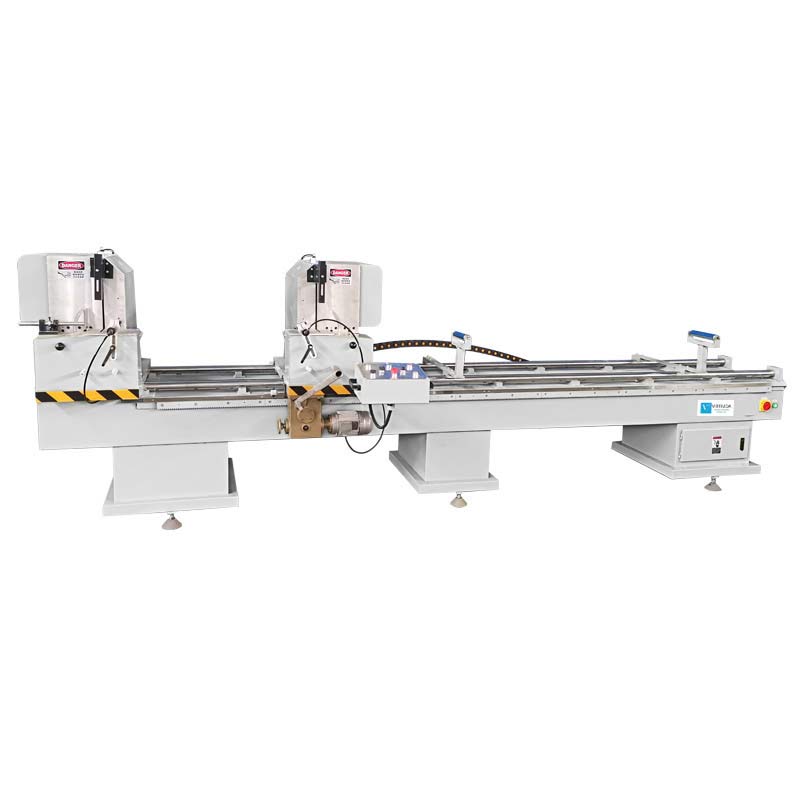

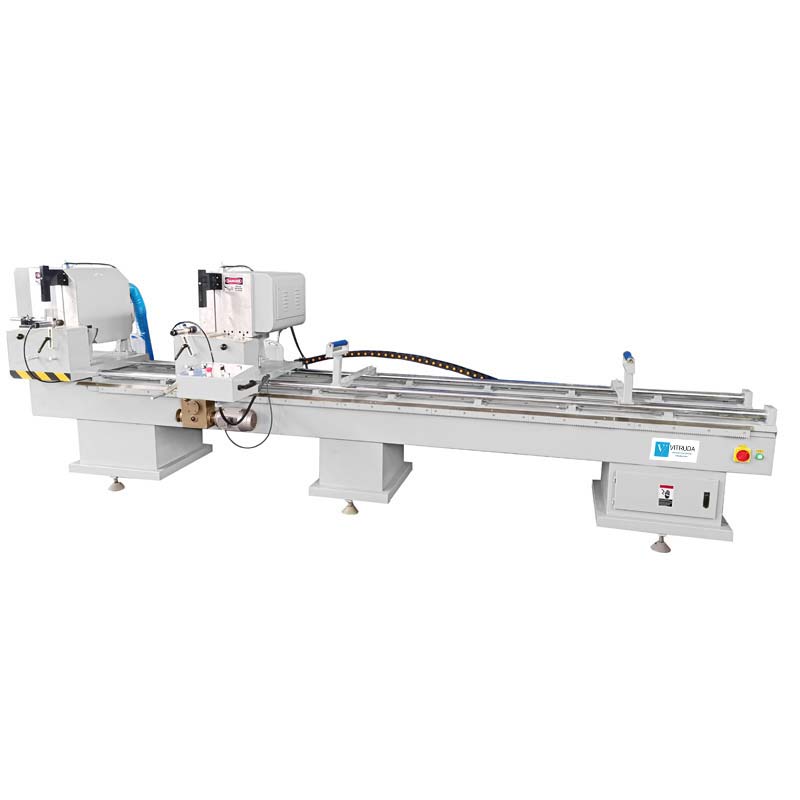

UPVC Window Double Head Mitre Saw

PRODUCT DESCRIPTIONS

1. This uPVC window double head mitre saw is mainly used for cutting 90 degree and inside 45 degree of uPVC profiles. Other angles can also be cut.

2. The right moving head of the PVC double head mitre saw is automatically and easily driven by a gear motor. Automatic braking device.

3. Micro-cut lengthadjustment handwheeldevice to ensure accuracy and easy operation.

4. The additional equal length intermediate support mechanism is convenient for feeding and positioning.

5. The right machine head moves on two linear guides to ensure stable moving speed and cutting accuracy.

6. The spindle has high precision and the saw blade rotates smoothly.

8. Two hand safety operations.

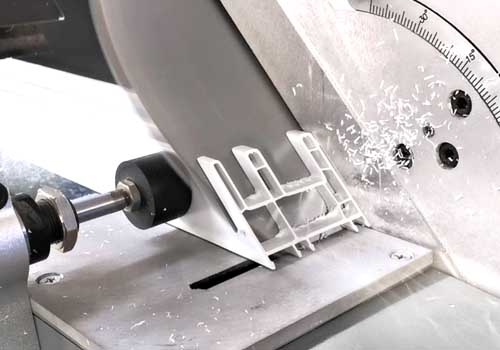

uPVC window double head mitre saw45-degree cutting

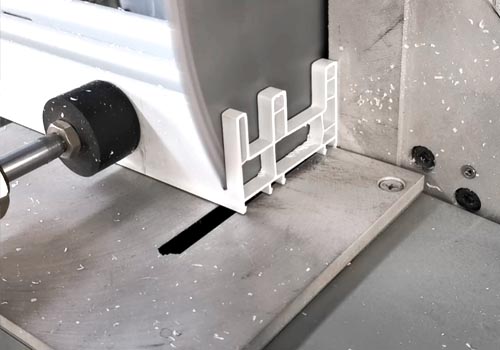

uPVC window double head mitre saw90-degree cutting

TECHNICAL SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Input power: 2×1.5 Kw
• Motor rotary speed: 3200 r/min
• Air pressure: 0.5~0.8 MPa
• Air consumption: 80 L/min
• Diameter of blade: ∮450 mm×∮30 mm
• Max cutting height: 200 mm
• Cutting width: 120 mm
• Cutting angle: 45°、90°
• Dimensions (Width×Depth×Height):4500×1200×1560 mm
• Net weight: 1050 Kg
