Hinge Hole Drilling Machine for Aluminum Window

Hinge Hole Drilling Machine for Aluminum Window

DESCRIPTIONS

This hinge hole drilling machine for aluminum window is suitable for drilling the hinge mounting holes of aluminum outward opening windows. It is an efficient aluminum window-making machine for high-quantity-producing aluminum windows.
It consists of a fixed and a movable drill unit, the drill unit consists of 5 drill systems, and the position of each drill bit can be adjusted to suit hinges of different specifications. The movable drill unit can move on the guide rail.
After clamping the aluminum window frame, the hinge hole drilling machine for aluminum can complete the drilling of all the hinge holes, such as the aluminum casement window sash and the side-hung window sash, with high processing speed and high accuracy.

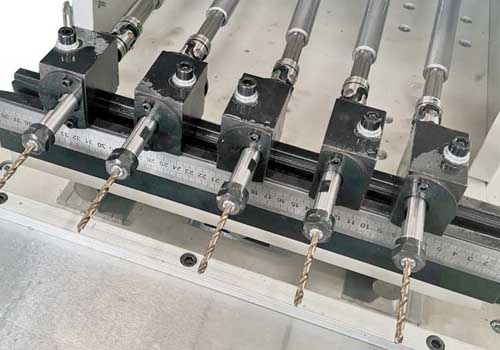

Hinge hole drilling machine for aluminum window details

hinge hole drilling machine for aluminum window details

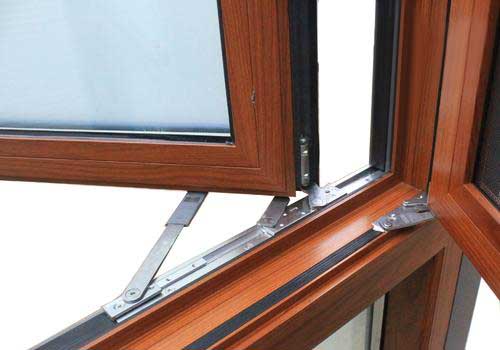

Hinge hole drilling machine for aluminum hinge drilling


FEATURES

This hinge hole drilling machine for aluminum window uses the linear guide; the right drilling unit can move left and right according to the size of the french aluminum casement window sash.
• Adjust the drilling distance according to the hole distance of the hinge hardware, and the machine can drill max five hinge holes on one side of the aluminum window sash.
• The hole drilling distance is adjustable.
• Double sides machining.

SPECIFICATIONS

Power supply: 380 V/50 Hz
• Input power: 3.0 Kw
• Air pressure: 0.5~0.8 MPa
• Air consumption: 20 L/min
• Drilling aperture: ∮3~5 mm
• Max profile dimension: 250×260 mm
• Drill up and down movement distance: 50 mm
• Adjacent two holes minimum distance: 23 mm
• Spindle drilling feed distance: 60 mm
• Main-shaft Revolution: 1400 r/min
• Dimensions (Width × Depth × Height): 4000×800×1500 mm
• Net weight: 650 Kg
