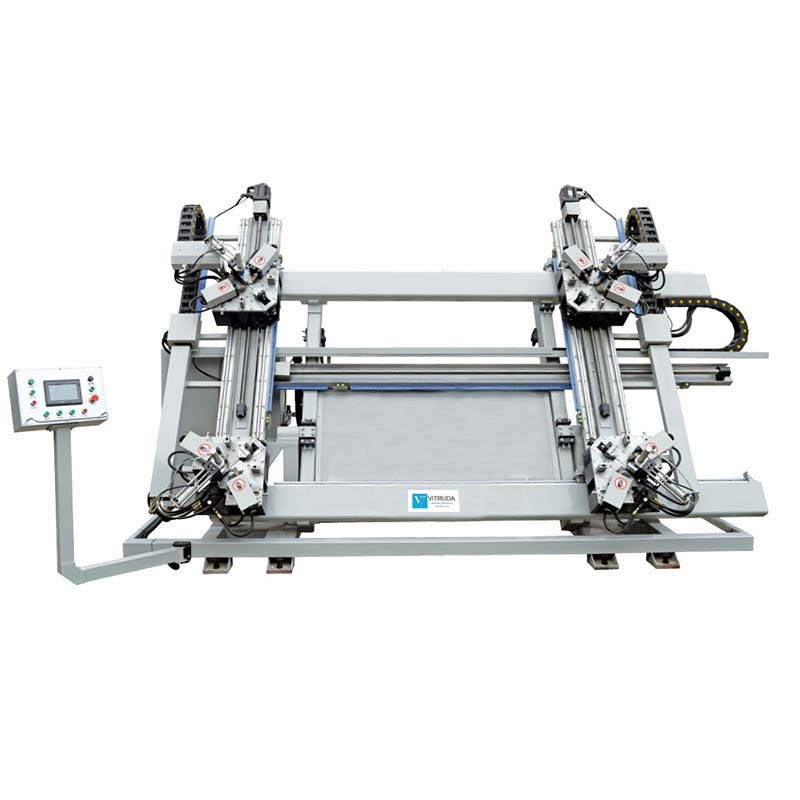

LZJZ4 Four Head CNC Corner Crimping Machine

Product Item : LZJZ4-CNC-100x1800x3000
Category： Aluminum Corner Crimping Machines
Color : gray/white
Origin： China
Application: Joining the four corners of aluminium windows
INQUIRY EMAIL

Aluminum Window Four Head CNC Corner Crimping Machine

PRODUCT DESCRIPTIONS

This aluminium window four head CNC crimping machine is an important aluminum machinery for making aluminum windows and doors.

1. Automatic hydraulic crimping of all 4 corners in one operation.

2. The crimping heads can be positioned exactly by a 3-axis control (both vertical axes are working synchronously).

3. The depth of each crimping head is individually adjustable.

4. The vertical configuration of the four head CNC corner crimping machine facilities enormously the handling of the pre-assembled and completely crimped elements.

5. The high-quality controlling CNC system ensures corner crimping speed and accuracy.

6. The corner-crimping blade can be adjusted easily forward and backward. left and right of the different section of aluminum profiles.

SPECIFICATIONS

Power supply: 380 V/50 Hz
Power output: 7.5 Kw
Rating oil pressure: 16 MPa
Total combining pressure: 0.5~0.8 MPa
Air consumption: 0.8 L once
Motor rotational speed 1400 r/min
Dimensions:(Width×Depth×Height): 4700×2000×2600 mm
Weight when empty : 3000 Kg
Capability of oil box: 60 L
Min frame dimension: 450×450 mm
Max frame dimension: 1800×3000 mm
Profile width: 95 mm
Cater-corner error of finished windows: ≤1 mm
Connection seam error: ≤0.15 mm
Working push power: 45 KN
Corner combining casing movement journey: 85 mm
