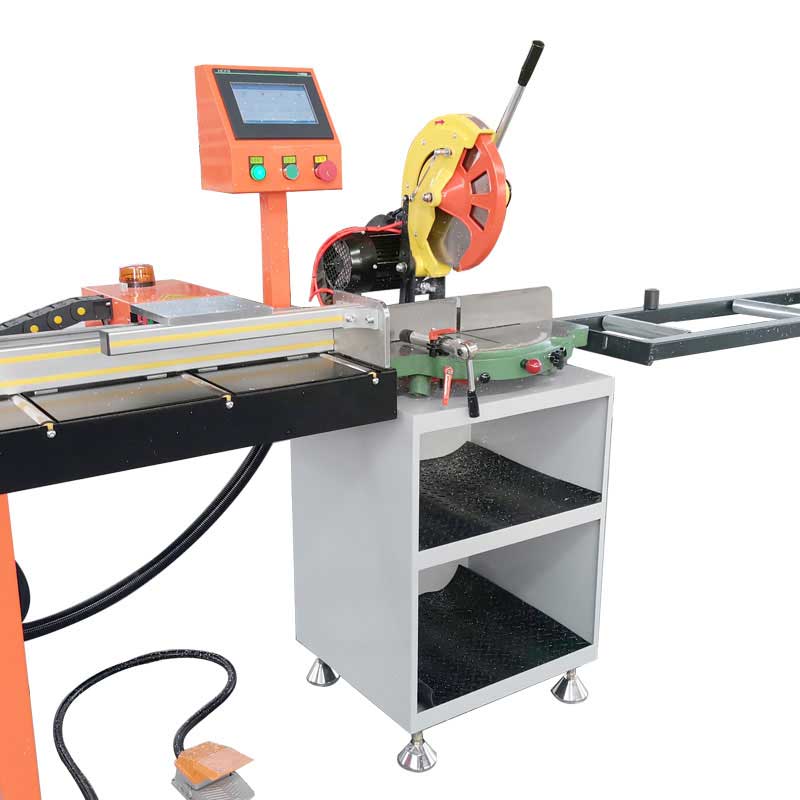

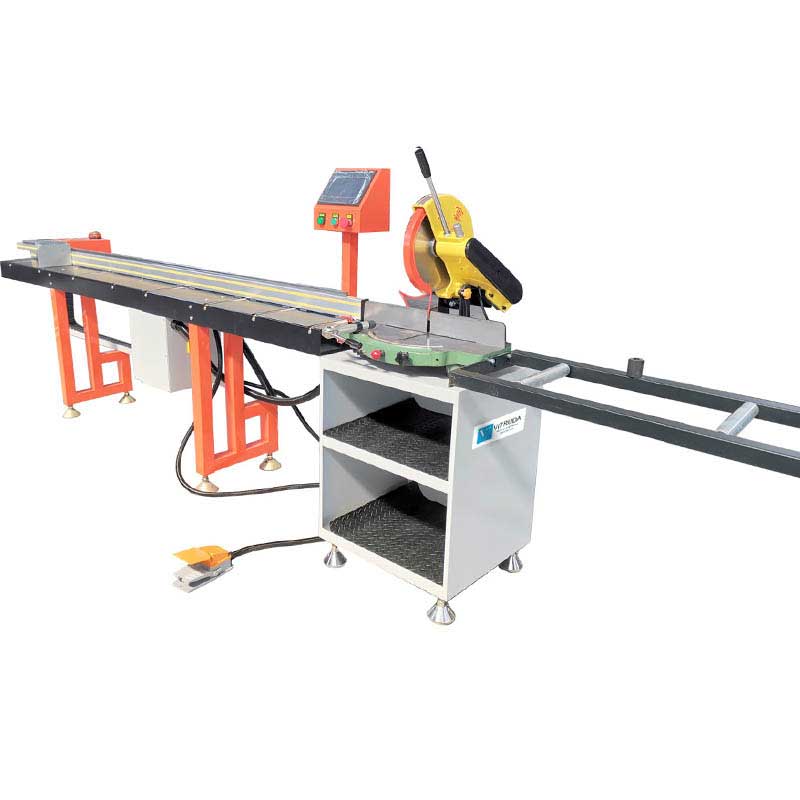

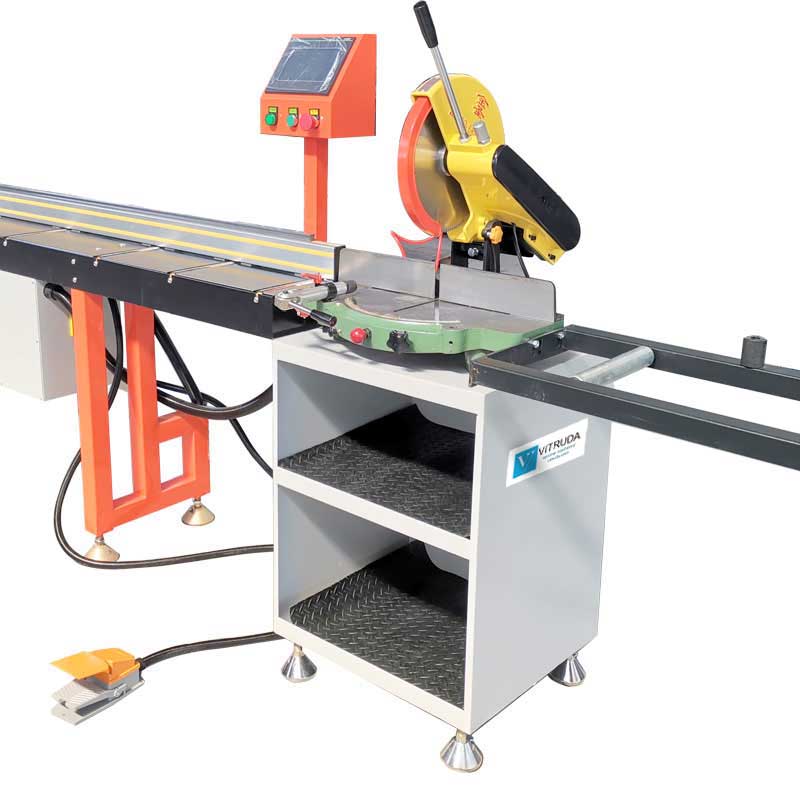

CNC Positioning Single Head Cutting Saw for Sale

PRODUCT DESCRIPTIONS

1. This CNC positioning single head cutting saw is specially designed for cutting 45°~90°PVC and aluminum profiles. It can also cut any angle. It is necessary equipment for making pvc & aluminum doors and windows, sliding doors, and home decoration.

2. This single head cutting saw can be operated manually.

3. The saw head adopts turntable rotation positioning technology, which makes the cutting angle adjustment convenient and quick.

4. The left side of the manual single head cutting saw adopts a CNC measuring table system, the cutting size positioning is fast and accurate, and multiple sets of cutting data can be input at the same time, and the right side is equipped with a file supporting frame.

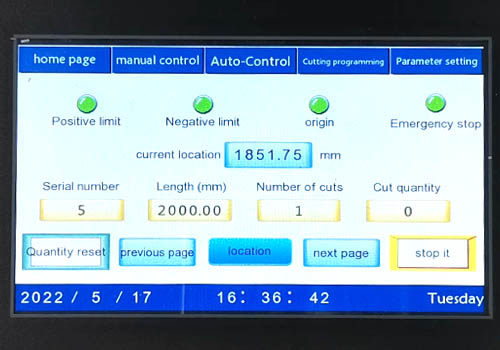

Single head cutting saw CNC positioning system

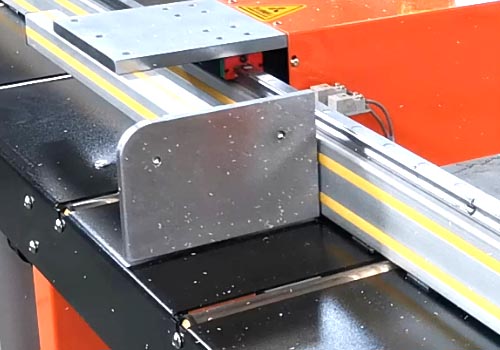

measuring table profile stop

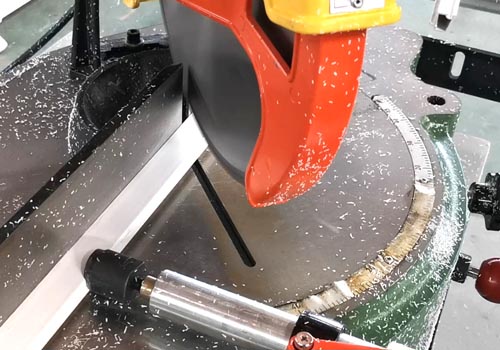

Manual Single head cutting saw 45-degree cutting

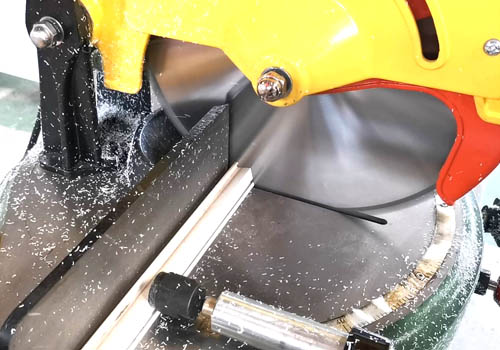

Manual Single head cutting saw 90-degree cutting

TECHNICAL SPECIFICATIONS

Power supply: 380 V/50 Hz
Power output: 1.1 Kw
Motor rotary speed: 3200 r/min
Dimensions:(Width×Depth×Height): 6800×650×1550 mm
Weight when empty: 150 Kg
Saw blade diameter: ∮350/400 mm×∮30 mm
Cutting height: 140 mm
Cutting width: 100 mm
Cutting length: 300~3000 mm
