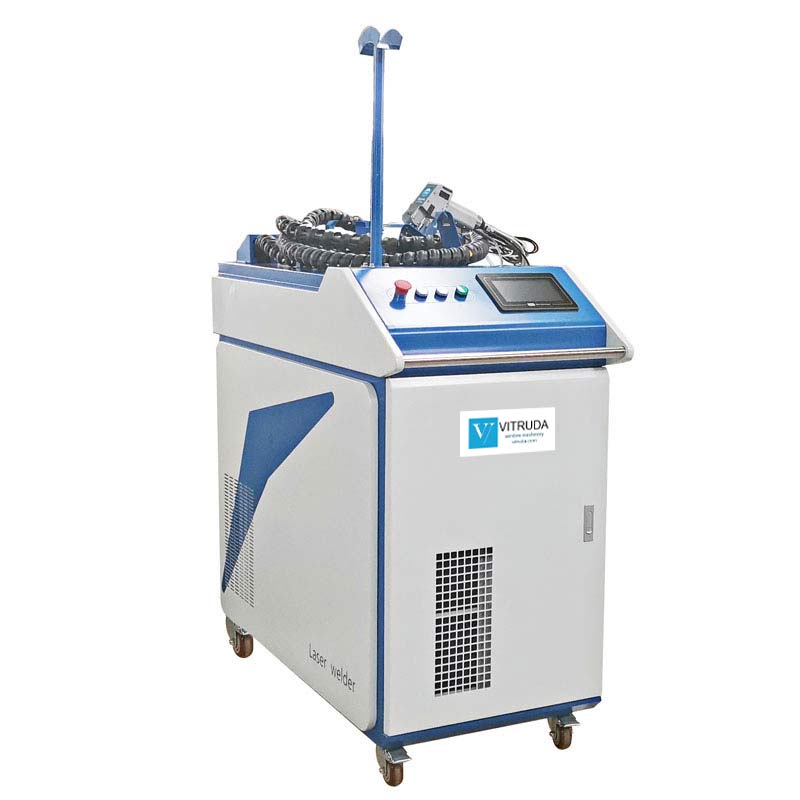

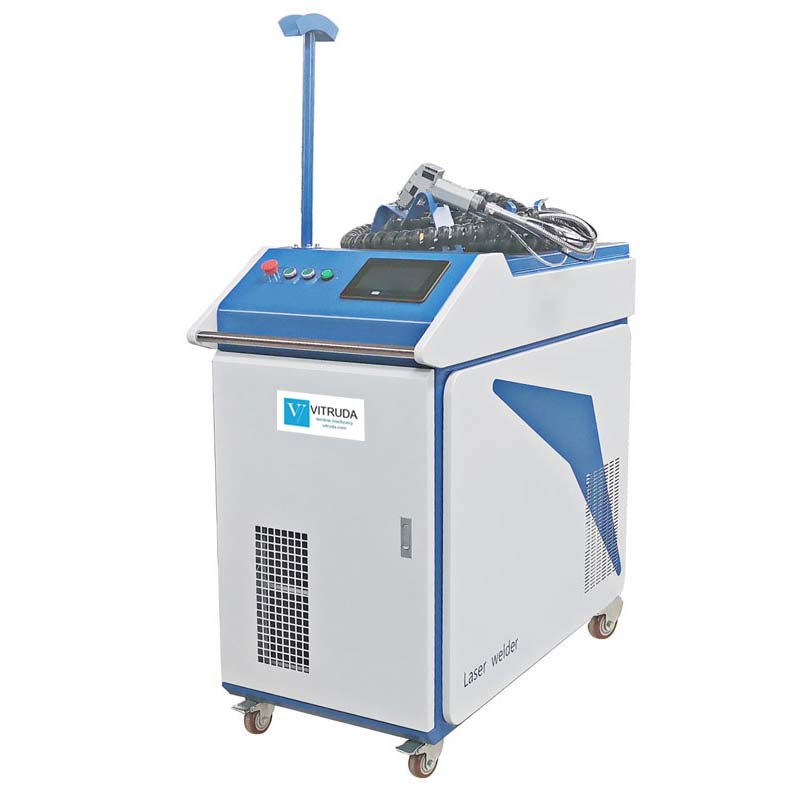

DFHLM-1000 Handheld Laser Welding Machine

DESCRIPTIONS

1. This handheld laser welding machine has a high welding speed of up to 4X faster than the traditional welding speed. It can help your factory save production costs.
2. Laser welding material consumes less and the machine has a long service life.
3. This portable laser welder is simple and convenient to operate, and beginners after simple training can also weld beautiful products.
4. The weld seam is beautiful and smooth, which reduces the subsequent polishing process and post-processing grinding and improves production efficiency and productivity with no need for machining or straightening deformed parts.
5. High-quality welding of thick, thin, and reflective metals without distortion, deformation, undercut, or burn-through, the workpiece is welded firmly, and the operation is safe and environmentally friendly.

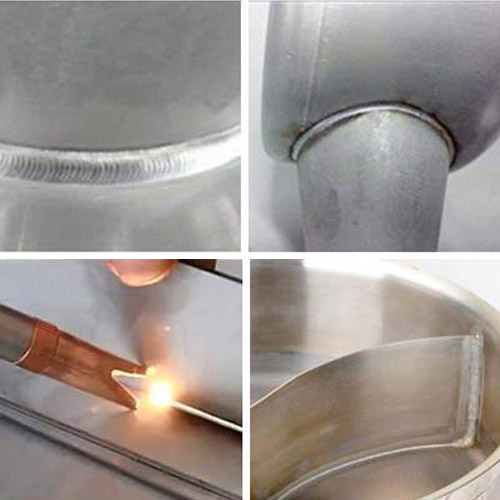

Handheld laser welding machine welding effect

APPLICATION

The handheld laser welding machine is faster and easier than traditional welding, It is an ideal laser welder for aluminium profiles, home machines, furniture, stainless steel production, medical equipment, advertising industry, shelf manufacturing, chassis manufacturing, and other industries.

Handheld laser welding machine application

TECHNICAL SPECIFICATIONS

Power supply： 380 V/50 Hz
Laser power： 1000 W/1500 W/2000 W
Dimensions: (Width × Depth × Height) 1105×720×1005 mm
Weight when empty： 350 Kg
Laser wavelength：1075±5 nm
Optical fiber cable length：3 m (length can be customized)
Aiming and positioning： red light positioning
Host power consumption：2.5 KW
Welding speed：90~100 mm /S
Cooling system： water-cooled integral constant temperature
Working environment temperature： 13~35 ℃
Working environment humidity requirements： <70% without condensation
