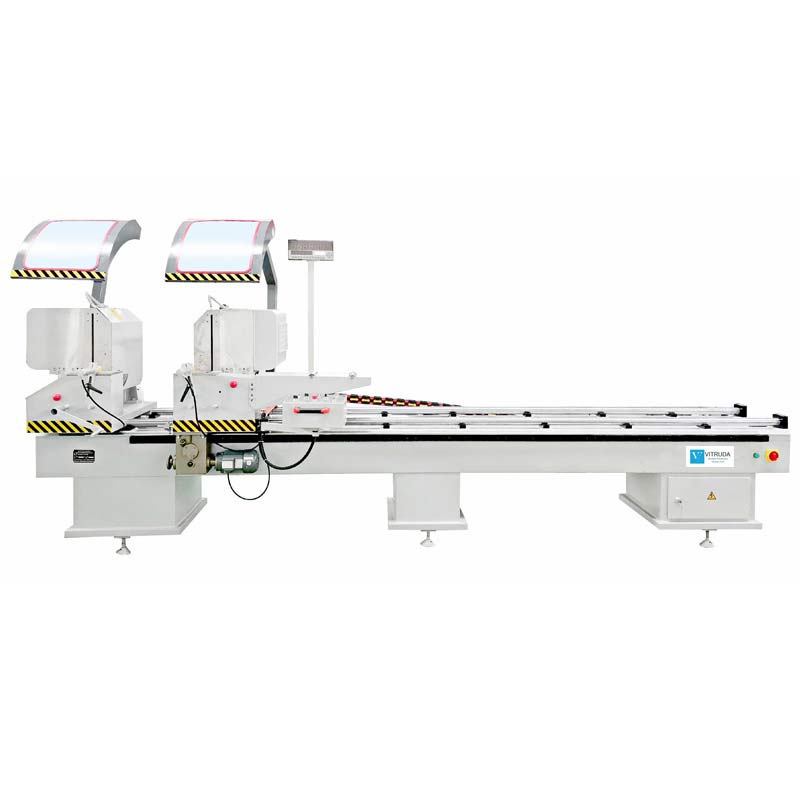

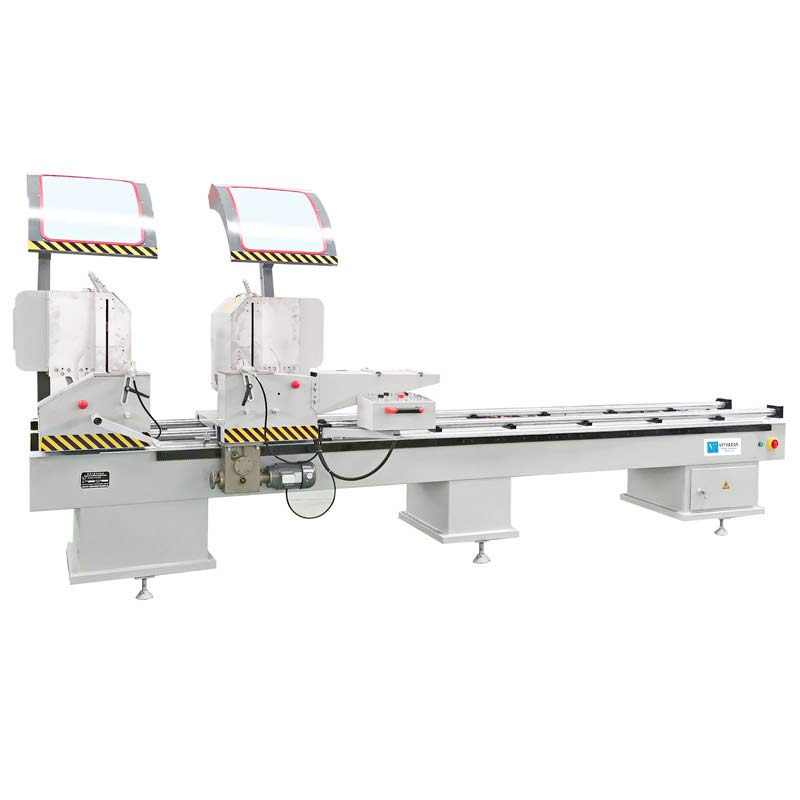

SSJ06B Aluminium Double Head Cutting Machinewith Digital Display

DESCRIPTIONS

1. This aluminium double head cutting machine is mainly used for cutting aluminium window profiles at 90 degrees and 45 degrees and is a high-quality cutting machine in the process of making aluminium windows and doors. It consists of a fixed cutting unit and a movable cutting unit, adopts a digital display measuring system, and the positioning size is clear and precise.

2. The right cutting unit of this machine is driven by a micro motor and reducer gear,  the micro-cut length adjustment handwheel device ensures accuracy and easy to operation.

3. Compared with the aluminium double head cutting machine of the SSJ06-3700 model, the lifting protective cover and the fixed supporting frame of the right cutting unit are added, which makes the operator safer.

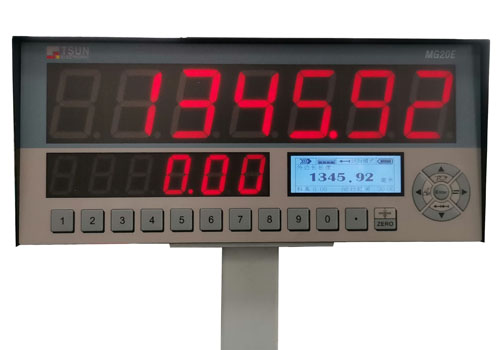

Aluminium double head cutting machine display

FEATURES

1.This aluminium double head cutting machine is equipped with a cutting-size digital display system, so cutting size is more accurate.

2. The right cutting unit moves on the two linear guides to ensure stable moving speed and cutting accuracy

3. The spindle has high precision and the saw blade rotates smoothly.

4. The saw blade is driven by a gas-liquid damping cylinder, and the cutting speed can be adjusted smoothly.

5. 2 pieces HHS 450mm saw blade.

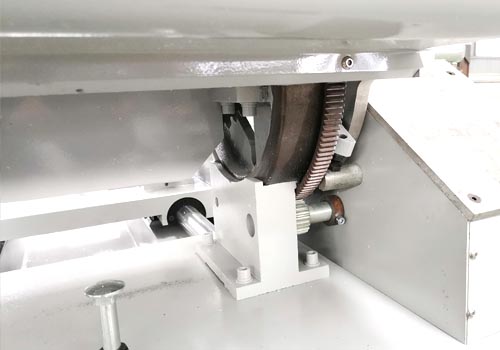

Aluminium double head cutting machine angle adjust

TECHNICAL SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Input power: 2×1.5 Kw
• Motor rotary speed: 3200 r/min
• Air pressure: 0.5~0.8 MPa
• Air consumption: 80 L/min
• Diameter of blade: ∮450mm×∮30 mm
• Max cutting height: 200 mm
• Cutting width: 120 mm
• Cutting angle: 45°、90°
• Dimensions (Width × Depth × Height):4500×1200×1560 mm
• Net weight: 1050 Kg
