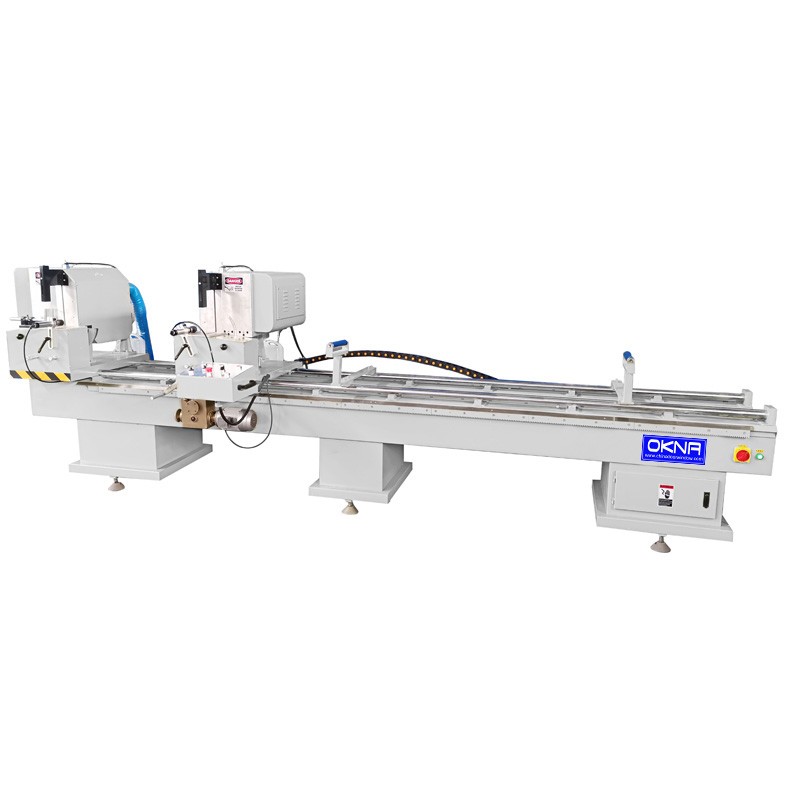

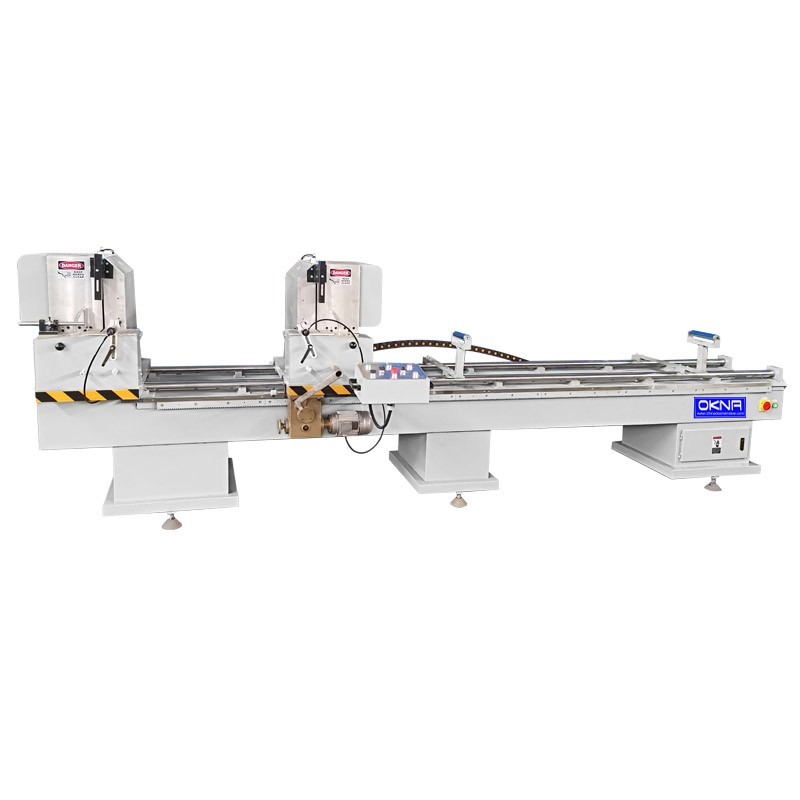

Aluminum Profile Double Head Mitre Saw

PRODUCT DESCRIPTIONS

This SSJ06 aluminum profile double head mitre saw is mainly used for cutting 90-degree and 45-degree aluminum window profiles. It is composed of a left-fixed cutting unit, a right-movable cutting unit, two linear guides, and a right-head moving system. The right head can move on the rails.
The aluminum profile double head mitre saw’s spindle has high precision, the saw blade rotates smoothly, and equipped profile support mechanism is convenient for feeding and positioning.

It adopts 2 pieces of Ø 450 mm HSS (High-Speed Steel) saw blades, suitable for cutting most uPVC and aluminum window profiles. The aluminum profile cutting machine’s spindle has high precision, the saw blade rotates smoothly, and equipped profile support mechanism is convenient for feeding and positioning. The feeding speed of the saw blade can be adjusted to suit different window and door profiles.

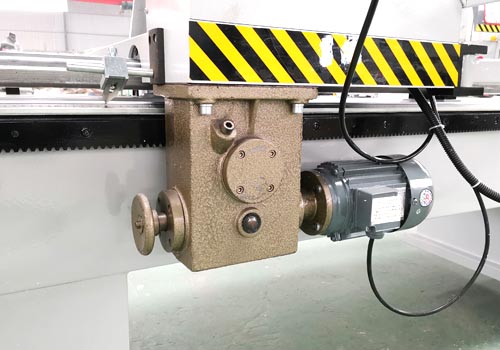

Aluminum Profile Double Head Mitre Saw feeding system

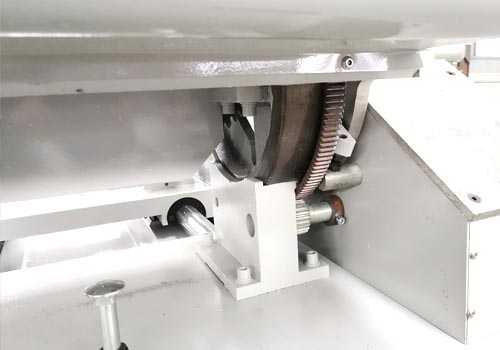

Aluminum profile double head mitre saw angel adjust

FEATURES

• The moving system of the right mitre saw head consists of a motor, a reducer, and an adjustment handwheel. The machine head is moved by the button and the handwheel is rotated to move the machine head to the desired cutting size position.
• he cutting angle is manually adjusted, and the cutting angle is achieved by rotating the gear by the hand crank and is limited by the angle positioning rod.
• Two horizontal pneumatic cylinders clamping systems.
• when cutting aluminum profiles, the Cooling system for this automatic aluminum profile mitre saw is available.

TECHNICAL SPECIFICATIONS

•Power supply: 380 V/50 Hz
• Input power: 2×1.5 Kw
• Motor rotary speed: 3200 r/min
• Air pressure: 0.5~0.8 MPa
• Air consumption: 80 L/min
• Diameter of blade: ∮450 mm×∮30 mm
• Max cutting height: 200 mm
• Cutting width: 120 mm
• Cutting angle: 45°、90°
• Dimensions (Width×Depth×Height):4500×1200×1560 mm
• Net weight: 1050 Kg
