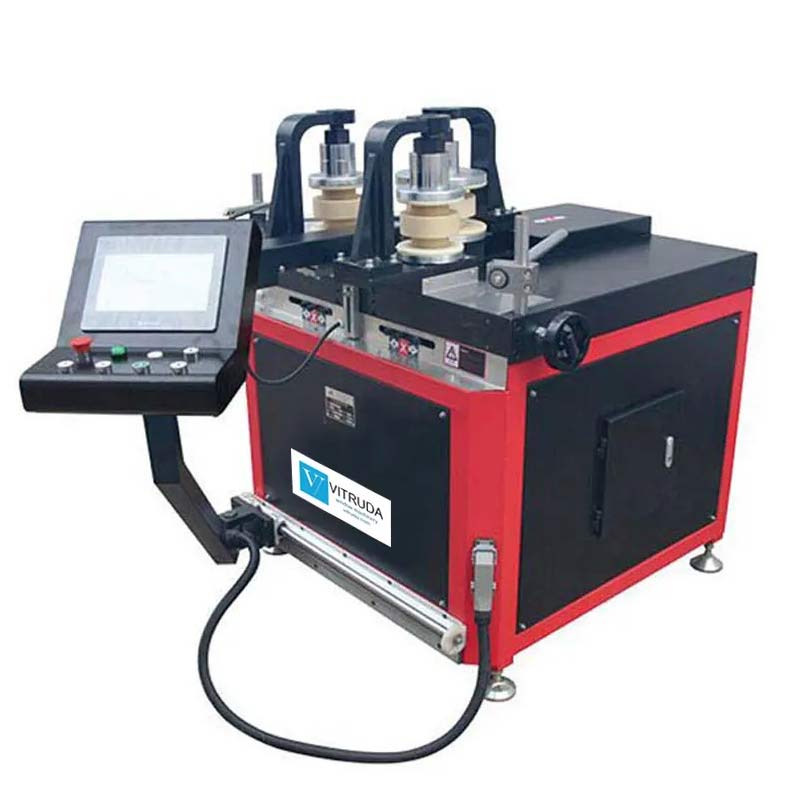

CNC Aluminum Bending Machine for Sale

PRODUCT DESCRIPTIONS

This CNC aluminum bending machine is suitable for bending LED extrusion, light extrusion, aluminum profile, iron, copper, stainless steel, and other metal materials. It is ideal for arc windows, iron decoration, stainless steel decoration, steel material, and LED extrusion bending.

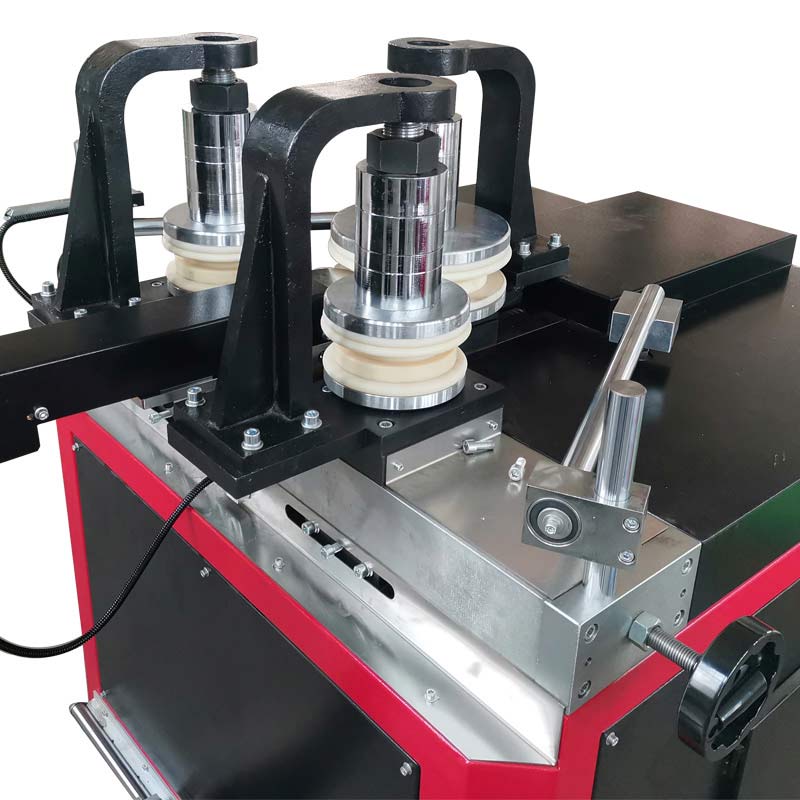

The roller system of the aluminum profile bending machine consists of two fixed X-axis rollers and a movable Y-axis roller,  Make arcs with different radii by controlling the travel distance of the Y-axis through the program.
The price is competitive, and it is a popular selling product. The machine can process various shapes such as C-shape, U-shape, round shape, oval shape, and multiple radius combinations.
With double servo motors, the shape size of the shape products is more accurate and used in industrial fields such as aluminum windows, trucks, trains, subways, etc.
The 3 sets of roller die and bar of this CNC aluminum bending machine need to be customized according to the LED extrusion or aluminum profiles.

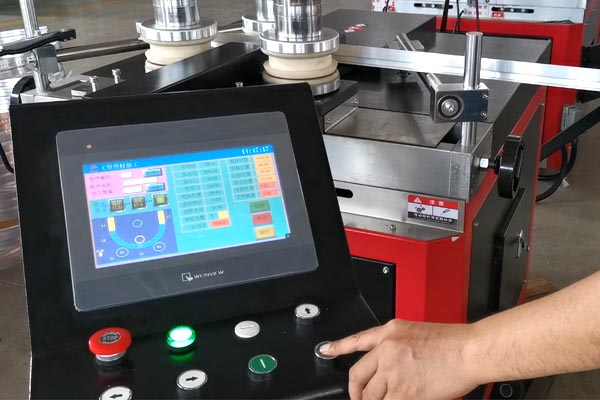

Aluminum bending machine touchscreen

FEATURES

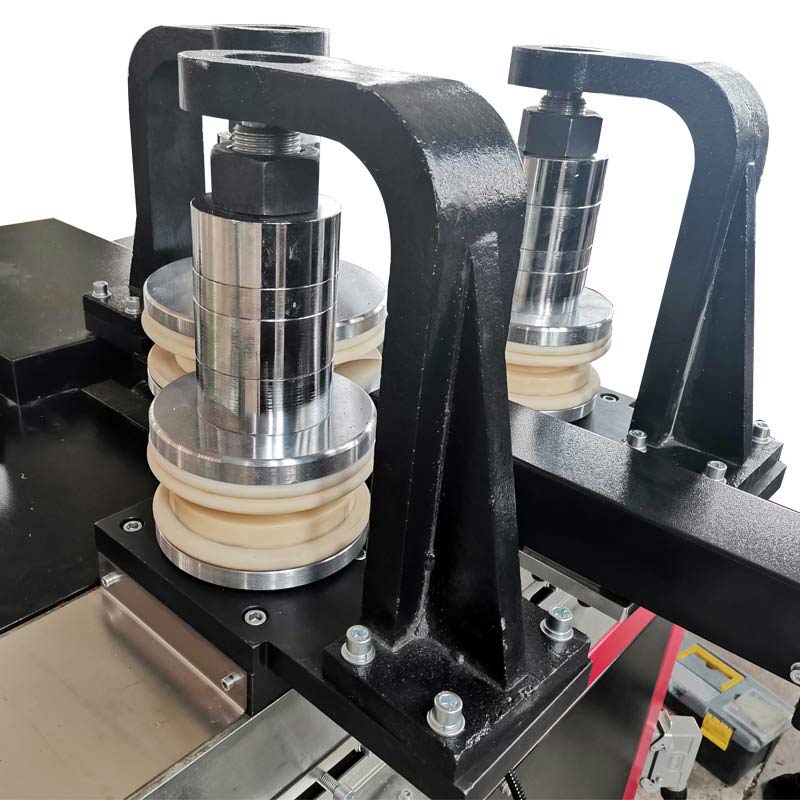

Aluminum bending machine dies

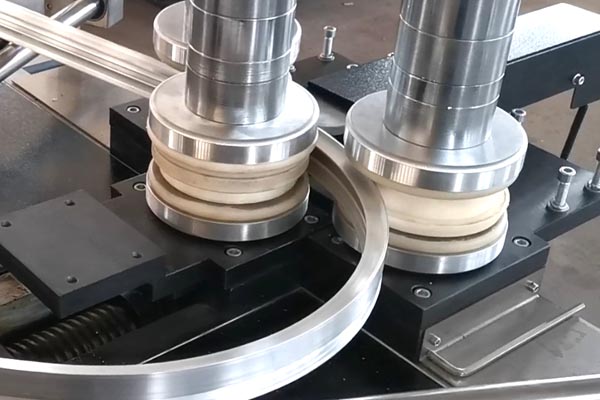

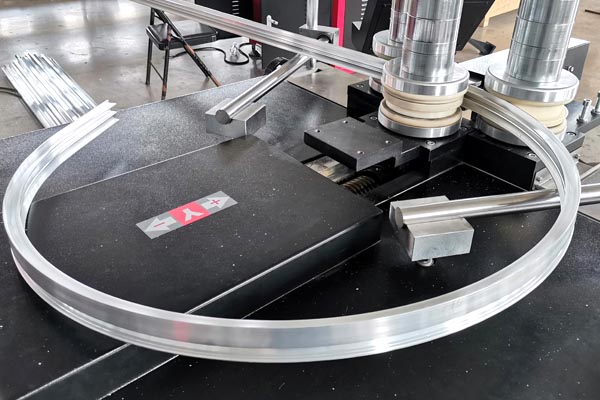

Aluminum bending machine round bending

HOW TO BEND ALUMINUM PROFILES?

• First, customize the roller dies and auxiliary nylon bar according to the LED extrusion, aluminum profile section.
• Enter the technical parameters in the machine settings, such as the starting position of the Y-axis, the diameter of the rollers, etc.
• Select the shape formula in the machine program screen according to the shape you want to bend, as shown below.
• Input the characteristic parameters of the shape in the program editing screen of the aluminium bending machine, such as radius, arc length, compensation coefficient, etc.
• Press the processing button to run the aluminum bending machine bending processing.

SPECIFICATIONS

• Power supply: 3 phase 380 V 50 Hz/60 Hz
• Total power: 4.0 Kw
• Y-axis push rod rated thrust: 13 T (Max. 20 T)
• Y-axis push rod positioning accuracy: 0.01 mm
• Maximum torque of X axis: 2500 N.M
• Three shaft speed: 1-15 r/min
• Fixed axle spacing: 280~600 mm
• Min bend radius: R=100 mm (50 mm top bend)
• Spindle diameter: 50 mm
• Machinable max size: W x H=120 x 150 mm
• Dimensions: L x W x H = 1500 x 1200 x 1400 mm
• Total weight: 900 Kg

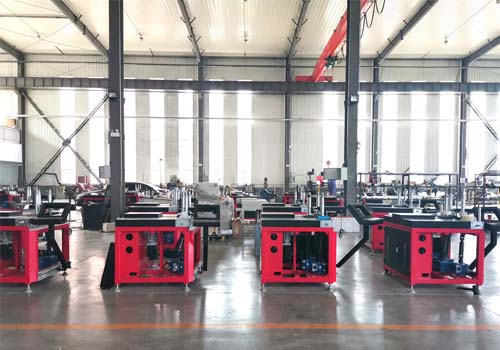

Aluminum bending machine factory view
