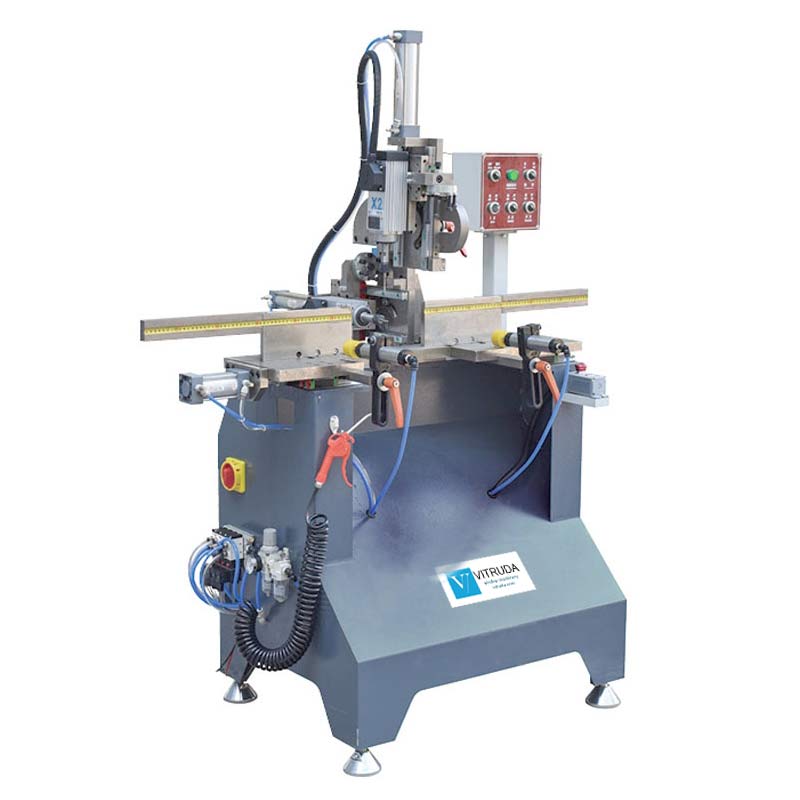

uPVC Window Double Head Automatic Water Slot Drilling Machine

Product Item : SCX03-2×60
Category： uPVC Milling Machines
Brand: OKNA
Color: white/gray
Country of Origin： China
Application: Designed for PVC water slot drilling
INQUIRY EMAIL

uPVC Window Double Head Automatic Water Slot Drilling Machine

PRODUCT DESCRIPTIONS

1. This uPVC window double head automatic water slot drilling machine has two independent routing heads for automatic routing and drilling of water slots and ventilation hole on the uPVC profile.

2. Adopt a workbench moving system.

3. Compact built units’ router units with automatic feed for touting depth and slot length.

4. The up head of the water slot drilling machine can be adjustable easily for milling different angle positions.

5. The milling router can be controlled individually to be flexible for various productions.

6. The PVC window profile is clamped by two horizontal clamping cylinders.

7. This uPVC window double head automatic water slot drilling machine adopts an automatic Pneumatic feeding unit, feeding speed is adjustable.

water slot drilling machine drilling unit

double head water slot milling machine head

water slot drilling machine drilling effect

pvc window water slot milling process

TECHNICAL SPECIFICATIONS

Power supply: 220 V/50 Hz or customer specification
Input power: 1.5 Kw
Dimensions:(Width×Depth×Height):1830×750×1600 mm
Weight when empty:260 Kg
Air pressure:0.5~0.8 MPa
Air consumption:15 L/min
Cutter Diameter: ∮4×50/75 mm or ∮5×50/75 mm
Slot length: c30/60 mm
Slot Depth(max): 30 mm
