  •  Double Head Cutting Saw For UPVC Profile
  •  Double Head Cutting Saw For UPVC Profile
 Double Head Cutting Saw For UPVC Profile Double Head Cutting Saw For UPVC Profile

Double Head Cutting Saw For UPVC Profile

  • Product Item : SSJ06A-450×3700
  • Category: UPVC Cutting Machines
  • Color: gray/white
  • Country Of Origin: China
  • Application: Designed for PVC and aluminium profiles cutting
  • INQUIRY   EMAIL

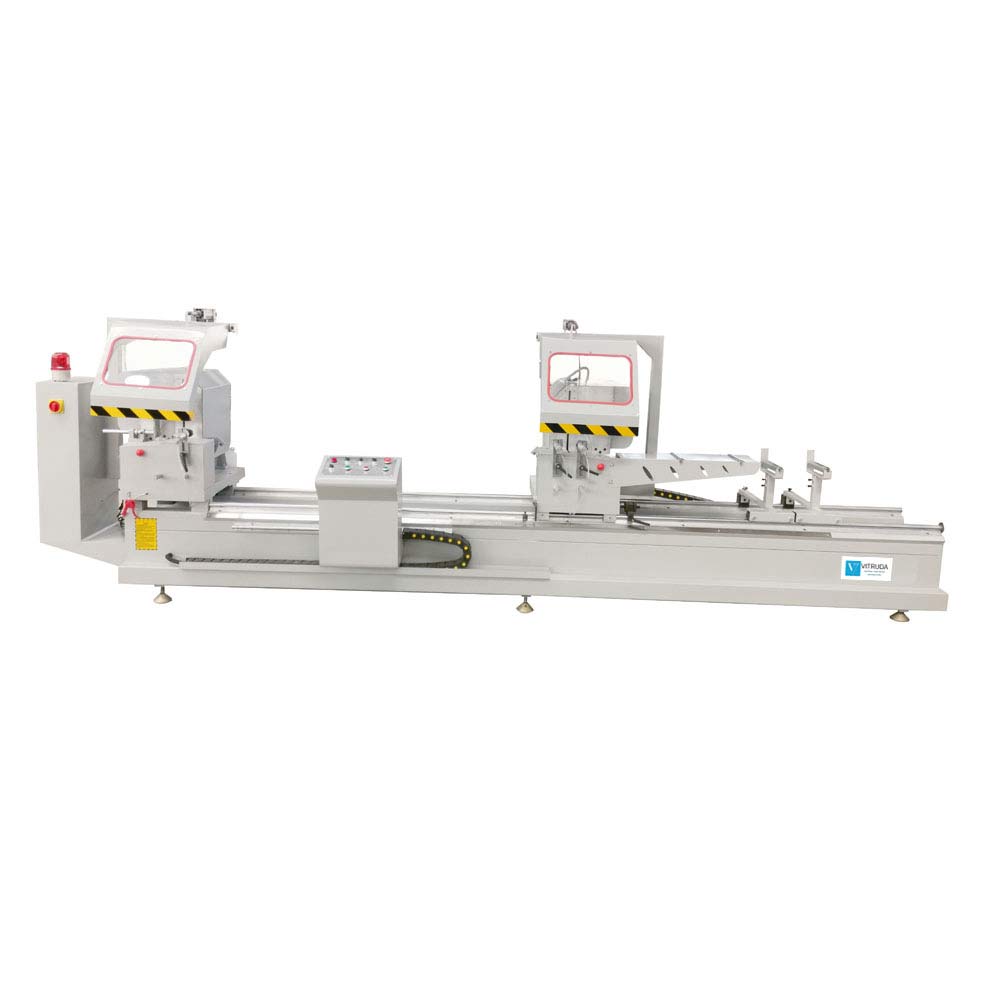

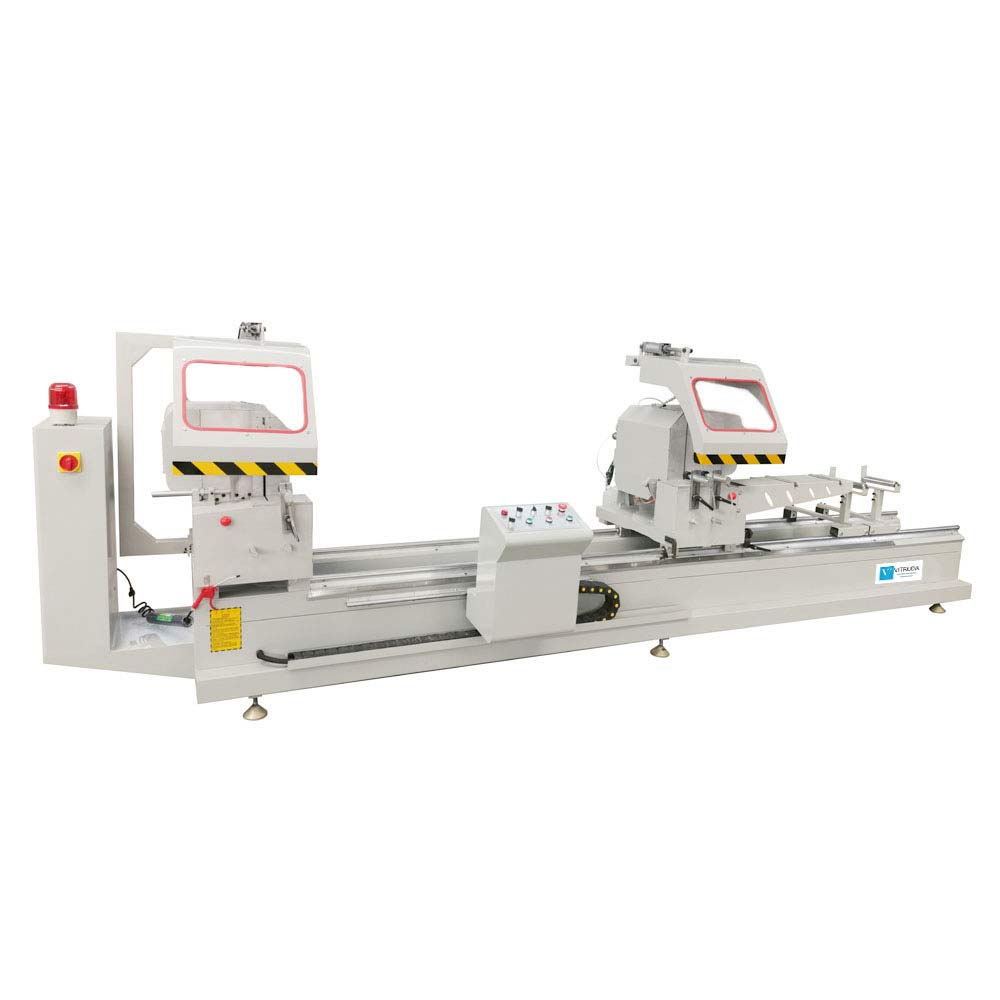

Double Head Cutting Saw For uPVC Profile

PRODUCT DESCRIPTIONS

1. This double head cutting saw is specially designed for cutting uPVC window and door profiles. is the primary PVC window cutting saw for making doors and windows from China supplier.
2. The PVC cutting saw feeding system adopts a high-quality linear guide rail, with high precision and good stability. The saw blade adopts high-precision spindle with stable rotation.
3. This cutting saw can cut 45 degree and 90 degree according to different requirements of PVC windows.
4. Pneumatic and hydraulic feed system ensures accurate and stable feed.
5. Carbide saw blade processing precision, high durability.
6. The two heads of the double head cutting saw can work together or separately to efficiently cut the required length and angle.
7. Power supply protects system from voltage overload.

8. Linear rails head movement.

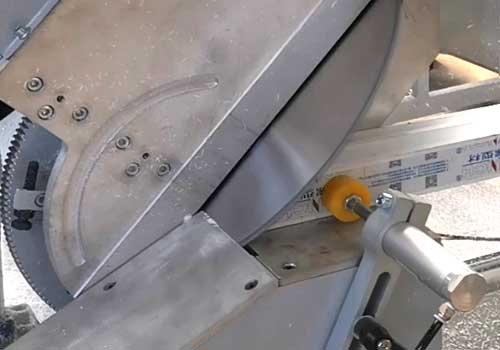

Double head cutting saw left head cutting

Double head cutting saw left head cutting

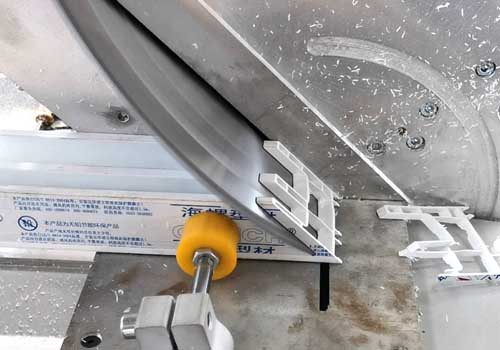

Double head cutting saw right head cutting

Double head cutting saw right head cutting

TECHNICAL SPECIFICATIONS

power supply: 380 V/50 Hz
Input power: 2x2.2 Kw
Motor rotary speed: 2800 /min
Air pressure: 0.5~0.8 MPa
Air consumption: 80 L/min
Diameter of blade: ∮450 mm×∮30 mm
Cutting height: 45°max×200 mm,90°max×300 mm
Cutting width: 120 mm
Cutting angle: 45°、90°
Feeding speed: 0~3 m/min
Cutting length: 420~4200mm
Dimensions (Width×Depth×Height):5100×1300×1900mm
Net weight: 850Kg
