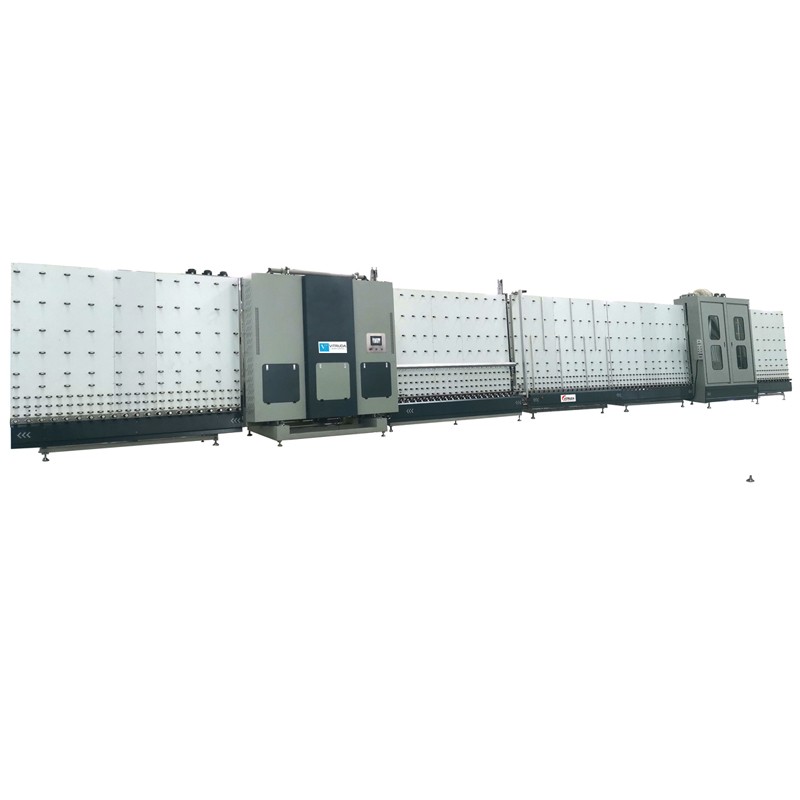

Insulated Glass Production Line

DESCRIPTIONS

This LBXH2000PW automatic insulated glass production line with hydraulic panel press adopts PLC and touch screen control system and automatically runs glass feeding, cleaning, drying, and combining processes with high efficiency.
It consists of a vertical glass washing machine part and a glass hydraulic panel press part. The washing machine part is composed of a glass feeding part, a cleaning and drying part, and a glass inspection part.
The glass panel press part is composed of a glass combining part and a plate pressing part.
The glass washing unit is made of stainless steel and other corrosion-resistant materials, with excellent waterproof performance, safety, and environmental protection. The insulated glass production line has a long service life and can manufacture double or triple-glazing insulated glass. It is a crucial glass and window machinery for making energy-saving aluminum & uPVC windows and insulating glass.

FEATURES

• Automatically identify the film level of coated glass and LOW-E glass.
• Brush rotary speed can be frequency-controlled when cleaning LOW-E glass.
• Adopt oil-free lubrication bearing.
• All electrical parts adopt high-quality brands.
• Hydraulic Panel Press.

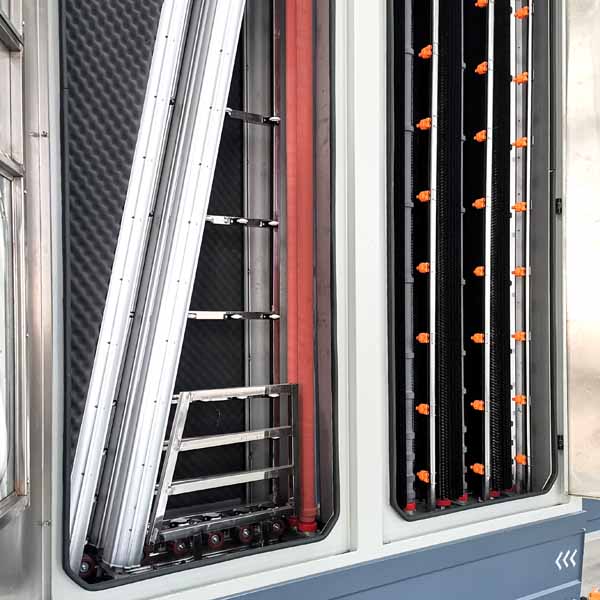

Insulated glass production line glass washing and combining

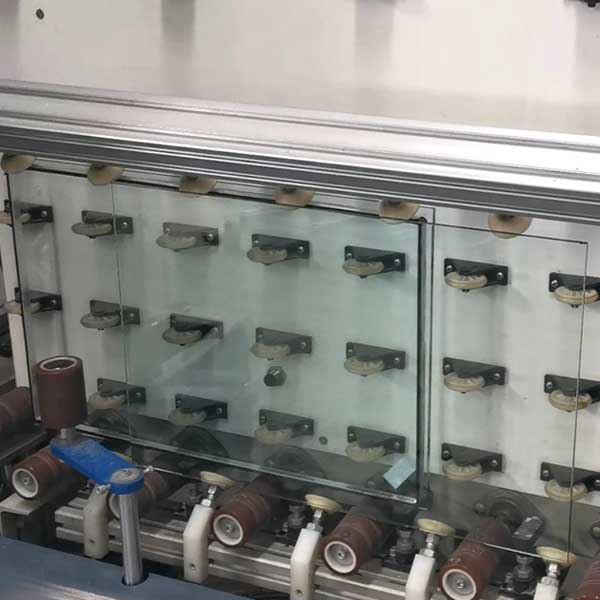

Insulated glass production line glass combining

TECHNICAL SPECIFICATIONS

Power supply: 380 V/50 Hz
Input power: 22 Kw
Glass washing speed: 2~7 m/min
Working speed: 0~28 m/min
Mini. glass size: 280 x 450 mm
Max. glass size: 2000x 2500 mm
Max glazing unit thickness: 50 mm
Single glass thickness: 3~12 mm
Airflow: 0.8m3/min
Air pressure: 0.6-0.8MPa
Water electrical conductivity: ≤50 μs/cm
Water consumption: 0.5 T/h
Overall dimension: 19500x 1600 x 3100 mm
Net weight: 7000 Kg
