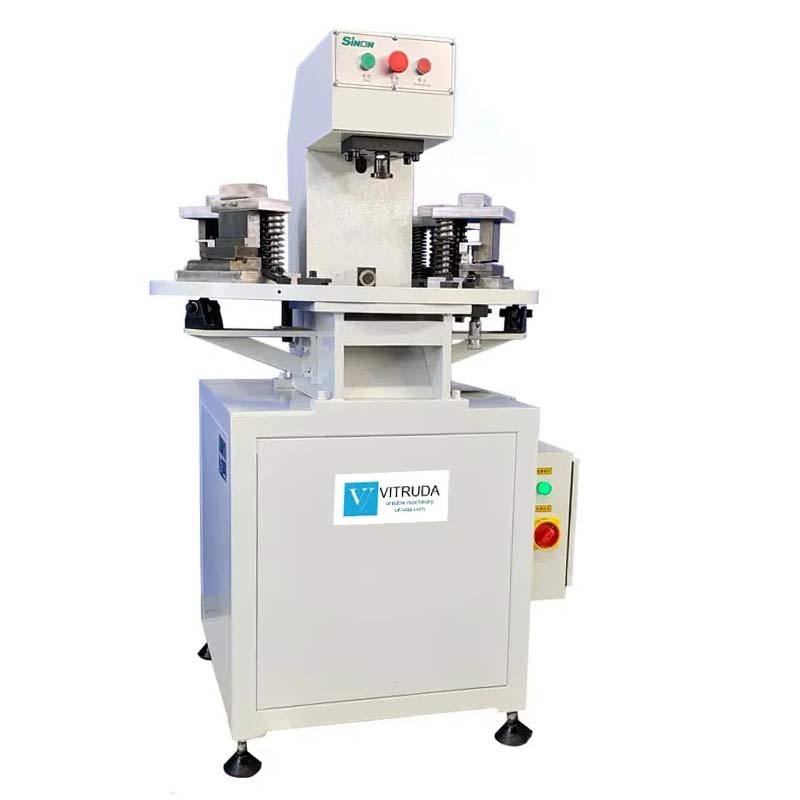

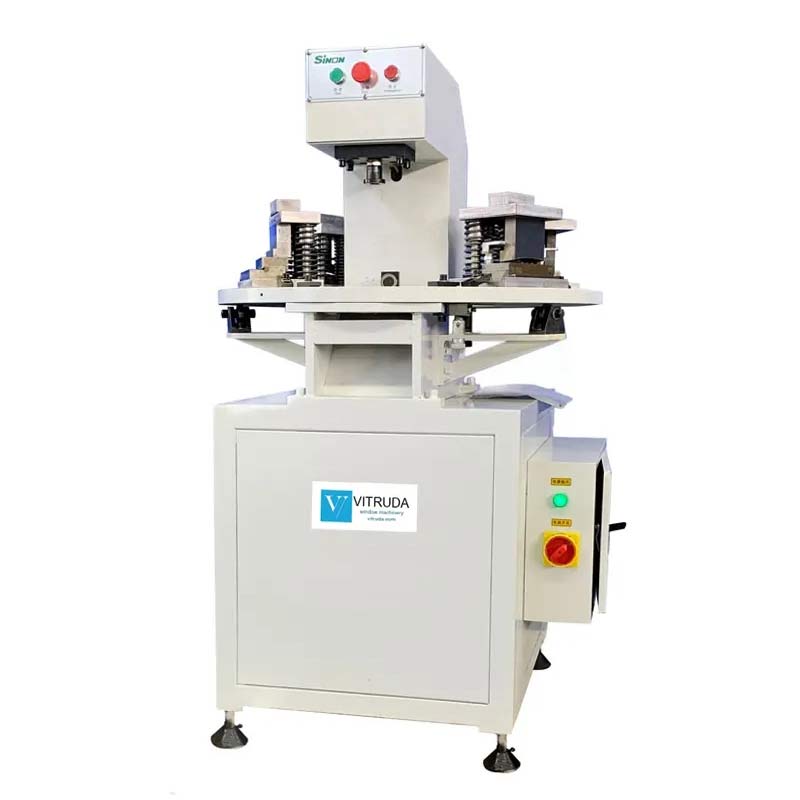

LYj6-50 Aluminium Punching Machine | 5 Punching Stations

DESCRIPTIONS

This LYJ6-50 aluminium punching machine with the hydraulic system is used for punching aluminum, steel, and other materials, and the driving force is supplied by the hydraulic system, the enormous force for smooth working.
It consists of a rotatable worktable, 6 punching stations, a punching system, a hydraulic system, and a bed.
The workbench can be equipped with up to 6 punching stations to meet the processing requirements of various holes, such as rotating shaft holes, screw adjusting holes, bolt holes, lock holes, lock tongue cover holes, locking core holes, etc. the punching dies need to be customized according to the hole punching shape and profile.

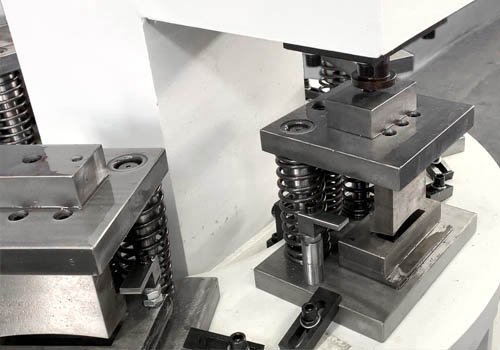

Aluminium punching machine dies

FEATURES

SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Input power: 1.5 Kw
• Motor rotary speed: 1440 r/min
• Rated oil pump pressure: 15 MPa
• The capability of the oil box: 30 L
• Press nominal pressure: 50 KN
• stroke times: 30 c/min
• Closing height: 210 mm
• Punching travel: 30 mm
• Processing deviation from Straightness: ±0.1 mm
• Die size: 250×200×215 mm
• Die thickness: 185 mm
• Dimensions (Width × Depth × Height): 900×950×1450 mm
• Net weight: 400 Kg
