SSKC02 uPVC Window Lock Hole Drilling Machine

SSKC02 uPVC Window Lock Hole Drilling Machine

Product Item : SSKC02-100
Category： uPVC Milling Machines
Color : gray/white
Origin： China
Application:Designed for copy milling and triple drilling
INQUIRY EMAIL

uPVC Window Lock Hole Drilling Machine

DESCRIPTIONS

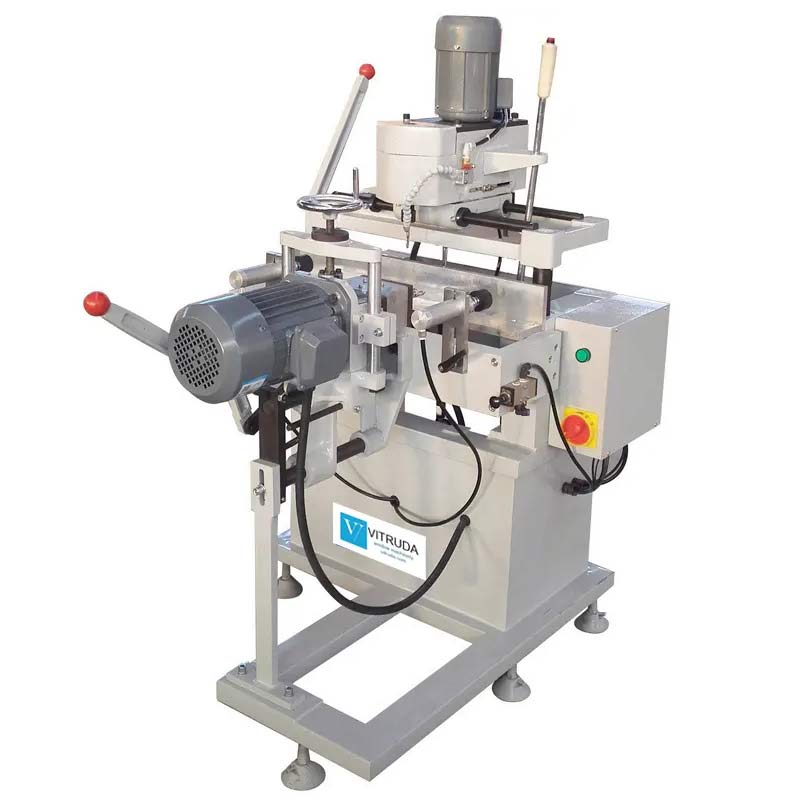

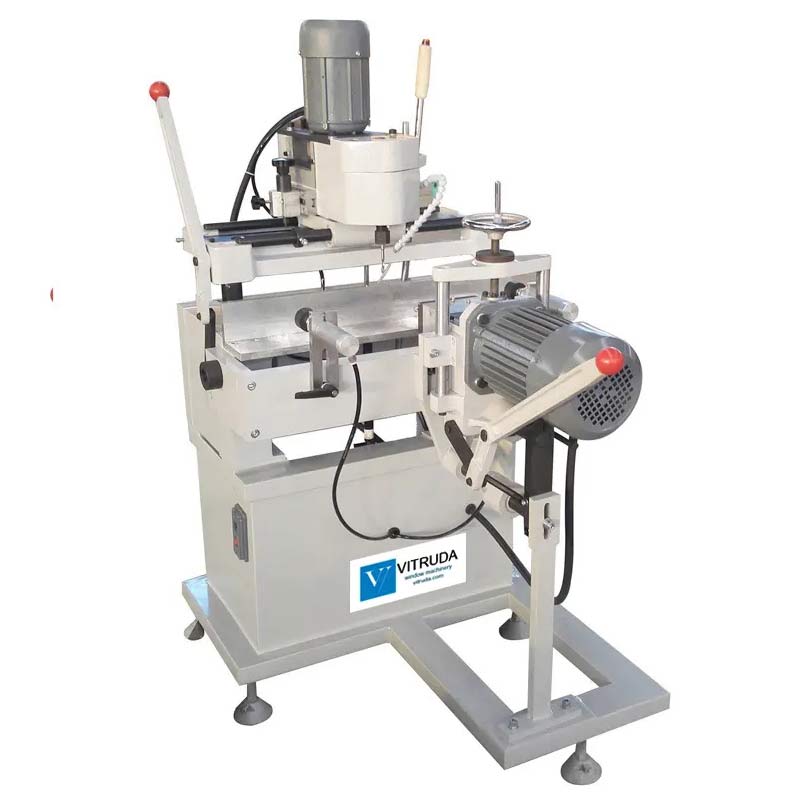

This SSKC02 lock hole drilling machine with copy routing consists of a vertical copy routing unit and a horizontal lock hole triple drilling unit. The copy routing unit is suitable for processing holes on aluminum and uPVC profiles, such as mounting locks, grips, hinges, latches, and water slots, the drilling unit is composed of three combined drill bits, a limit device, and a rocker arm, etc., and is suitable for simultaneous processing of three holes in the lock hole.
This lock hole drilling machine routing unit has a 1:1 ratio standard milling template, which can quickly copy routing various holes, and the professional copy die can be customized for memorable window-making shaped holes.

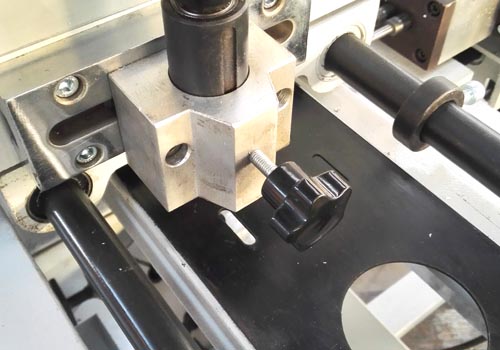

lock hole drilling machine copy template

lock hole drilling machine copy template

FEATURES

• This lock hole drilling machine copy unit is equipped with a standard hole copy template. The copy template is standard-equipped or specifically designed.
• Linear guide rails move the copy routers and the triple drilling system, making it easy to work on different aluminum and PVC profiles.
• Routing to stops or universal template in a 1:1 ratio.
• The special vertical copy router handle-arm for easy adjusting hole drilling height.
• Horizontal triple drill and vertical copy router with a special cutout working table to realize three holes with fixed spacing can be drilled.
• Use high-speed steel drill bits for aluminum profiles.
• Smooth movement of copy routers unit is carried out with shock absorbers.

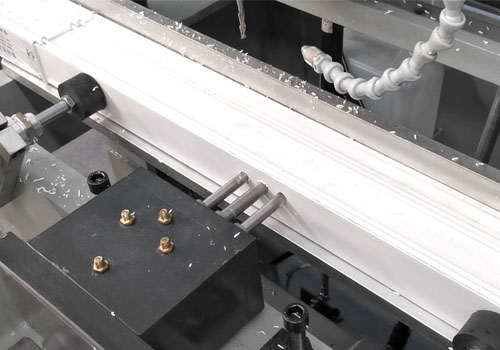

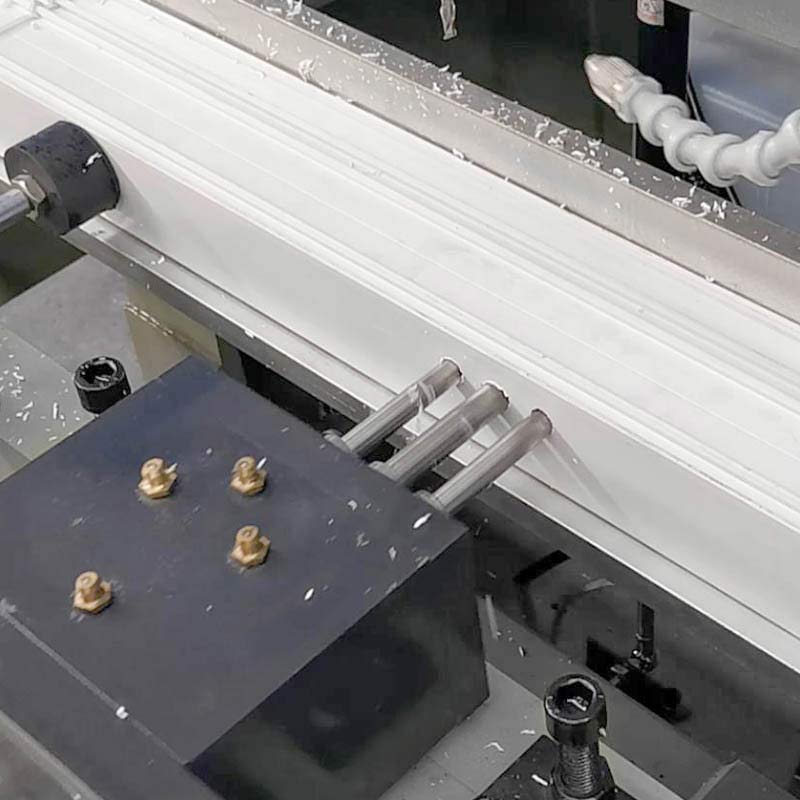

Lock hole drilling machine lock hole drilling

Lock hole drilling machine lock hole drilling

TECHNICAL SPECIFICATIONS

• Power supply: 380 V/50 Hz
• Input power: 2.2 Kw
• Air pressure: 0.5~0.8 MPa
• Air consumption: 30 L/min
• Milling cutter Diameter: 5 mm / 8 mm
• Copy milling range: 100×290 mm
• Slot Depth(max): 30 mm
• Main-Shaft Revolution: 12000 r/min
• Dimensions (Width×Depth×Height): 900×1130×1400 mm
• Net weight: 300 Kg
